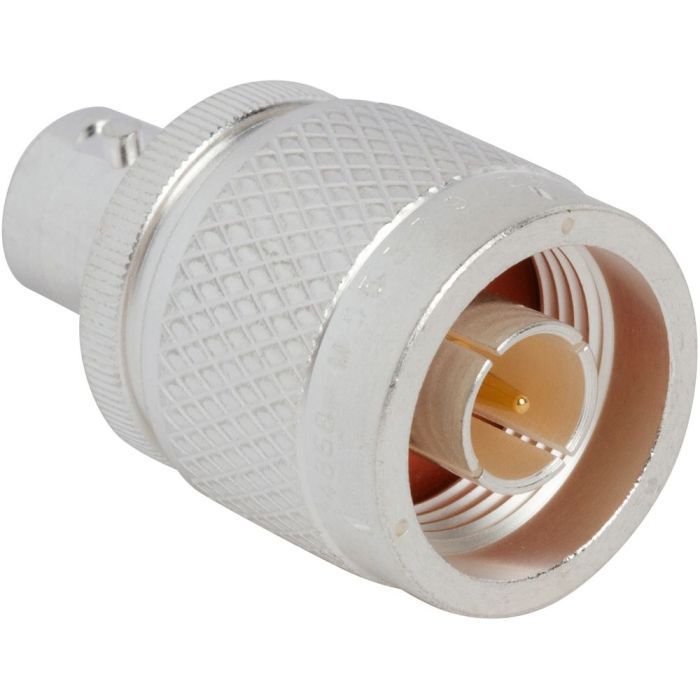

M55339/20-00201 BNC Jack to N-Type Plug Adapter 50 Ohm Straight QPL

Name: M55339/20-00201 BNC Jack to N-Type Plug Adapter 50 Ohm Straight QPL
SKU: 082-5558

In stock

082-5558

M55339/20-00201 BNC Jack to N-Type Plug Adapter 50 Ohm Straight QPL Approved

Product Compliance

M55339/20-00201 BNC Jack to N-Type Plug Adapter 50 Ohm Straight QPL Approved

Downloads

Product Life Cycle
Part Status	Active

Adapter Configuration	BNC Jack to N-Type Plug
Adapter Type	Between-Series
Alias	M55339/20-00201
Body Finish	Silver
Body Material	Brass
Contact Finish	Gold
Contact Material	Beryllium Copper
Export Control Classification Number	EAR99
Frequency (Max GHz)	4
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	Mil Qualified
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
