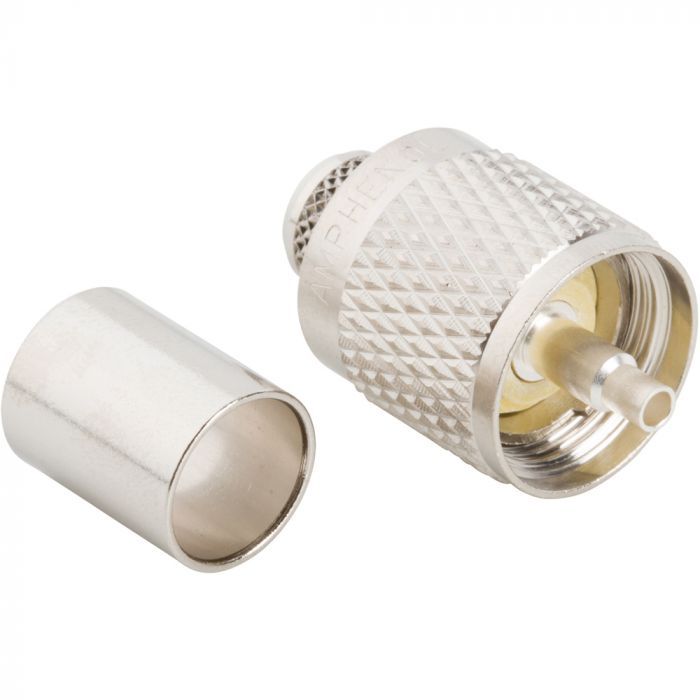

UHF Straight Crimp Plug RG-8 RG-213 RG-225 Non-Constant Impedance

Name: UHF Straight Crimp Plug RG-8 RG-213 RG-225 Non-Constant Impedance
SKU: 083-8SP-RFX

In stock

083-8SP-RFX

Product Compliance

RF Connector UHF Straight Crimp Plug RG-8 RG-213 RG-225 Non-Constant Impedance

Downloads

Product Life Cycle
Part Status	Active

Body Finish	Nickel
Body Material	Brass
Cable Type (Terminates to)	RG-8, RG-213, RG-225, Times AA-4478, Belden 8267, Belden 9251, Belden 9880, Belden 89880, Belden 8242, Belden 8268
Contact Finish	Silver
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Threaded
Crimp Tool	CTL-3
Export Control Classification Number	EAR99
Frequency (Max GHz)	0.3
Gender	Plug
IP Rating	Not Rated
Impedance (Ohms)	Non-Constant
Insulator Material	Phenolic
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Standard
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Termination Style	Cable - Crimp
Thread Direction	Standard
