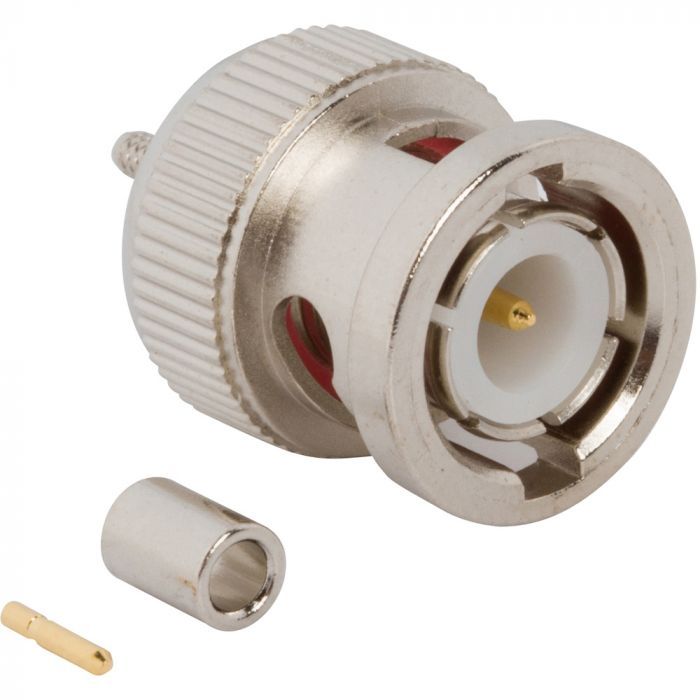

BNC Straight Crimp Plug RG-178 RG-196 50 Ohm

Name: BNC Straight Crimp Plug RG-178 RG-196 50 Ohm
SKU: 112516

In stock

112516

Product Compliance

RF Connector BNC Straight Crimp Plug RG-178 RG-196 50 Ohm

Downloads

Product Life Cycle
Part Status	Active

Alias	B1121H1-ND3G-196AU-50
Body Finish	Nickel
Body Material	Brass
Cable Type (Terminates to)	RG-178, RG-196, Belden 83265
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Termination	Crimp
Coupling Mechanism	Bayonet
Crimp Tool	47-10150
Export Control Classification Number	EAR99
Frequency (Max GHz)	4
Gender	Plug
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	Delrin
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Miniature
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Termination Style	Cable - Crimp
