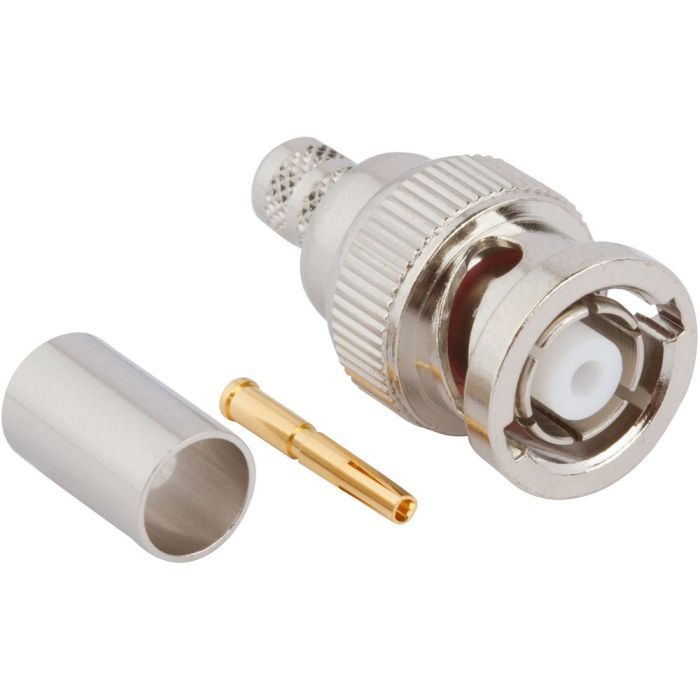

RP-BNC Straight Crimp Plug RG-8X Times LMR-240 50 Ohm

Name: RP-BNC Straight Crimp Plug RG-8X Times LMR-240 50 Ohm
SKU: 112533RP

In stock

112533RP

Product Compliance

RF Connector RP-BNC Straight Crimp Plug RG-8X Times LMR-240 50 Ohm

Downloads

Product Life Cycle
Part Status	Active

Body Finish	Nickel
Body Material	Brass
Cable Type (Terminates to)	RG-8X, Times LMR-240, Times LMR-240 UltraFlex, Belden 9258
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Termination	Crimp
Coupling Mechanism	Bayonet
Crimp Tool	47-10070
Export Control Classification Number	EAR99
Frequency (Max GHz)	4
Gender	Plug
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Miniature
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Termination Style	Cable - Crimp
