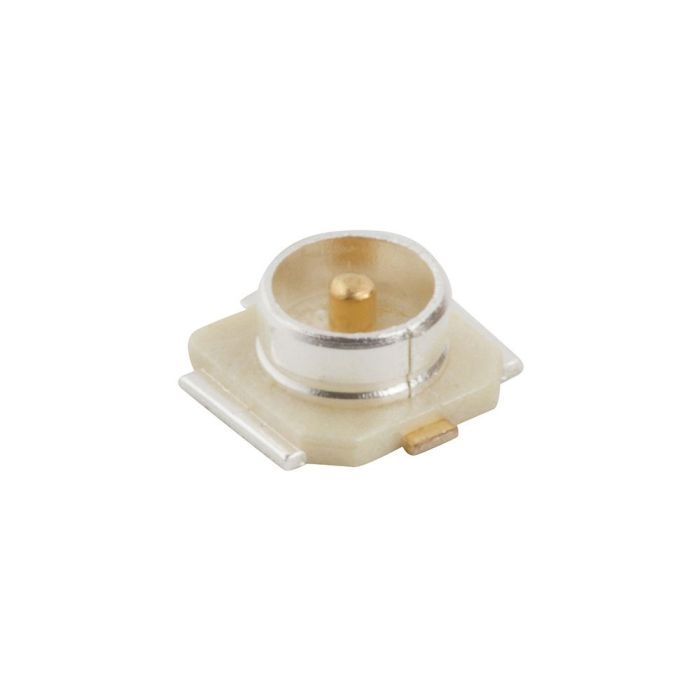

AMC Straight PCB Jack Surface Mount 50 Ohm

Name: AMC Straight PCB Jack Surface Mount 50 Ohm
SKU: A-1JB

In stock

A-1JB

Product Compliance

RF Connector AMC Straight PCB Jack Surface Mount 50 Ohm

Downloads

Product Life Cycle
Part Status	Active

Body Finish	Silver
Body Material	LCP
Cable Type (Terminates to)	Not Applicable
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Push-on
Export Control Classification Number	EAR99
Frequency (Max GHz)	6
Gender	Jack
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	LCP
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Ultraminiature
Temp (Max Degrees Celsius)	90
Temp (Min Degrees Celsius)	-40
Termination Style	PCB - Surface Mount
