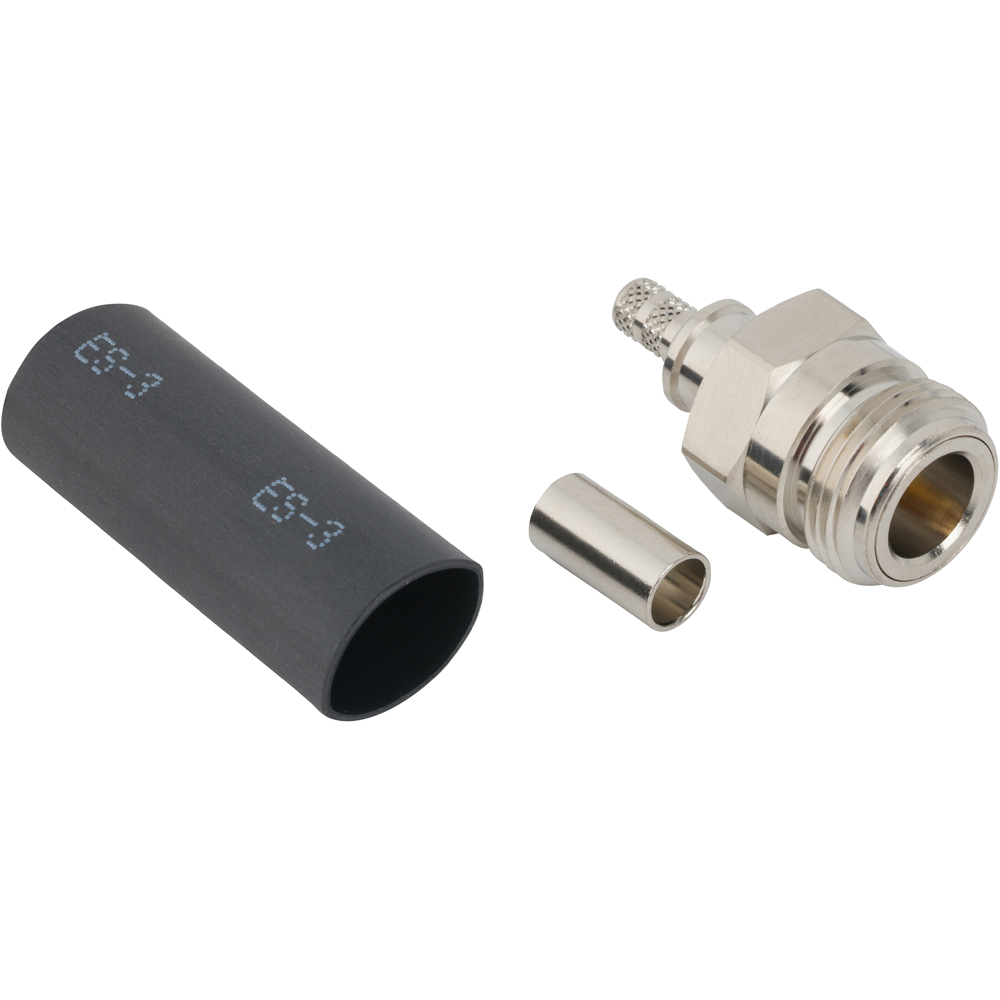

N-Type Straight Crimp Jack RG-58 RG-141 Times LMR-195 50 Ohm

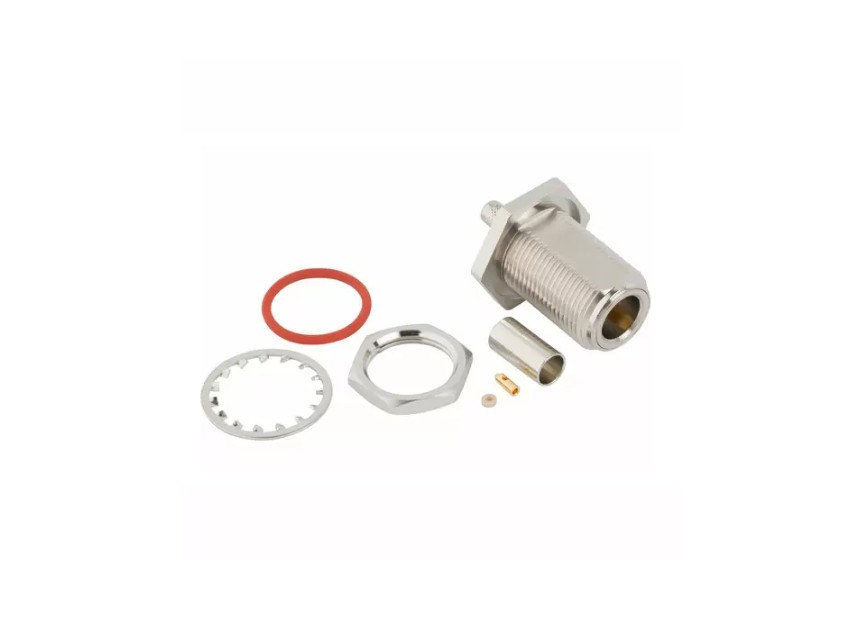

Amphenol RF a le plaisir d'élargir sa gamme de connecteurs de type N à montage sur câble avec de nouvelles configurations de prises passe-cloison à montage arrière conformes aux normes IP. Ces connecteurs RF de 50 ohms constituent une solution robuste, dotée d'un mécanisme de raccordement fileté.

Amphenol RF a le plaisir d'élargir sa gamme de solutions destinées aux conditions d'exposition extrêmes avec l'ajout de nouvelles configurations de connecteurs de type N à montage sur câble.

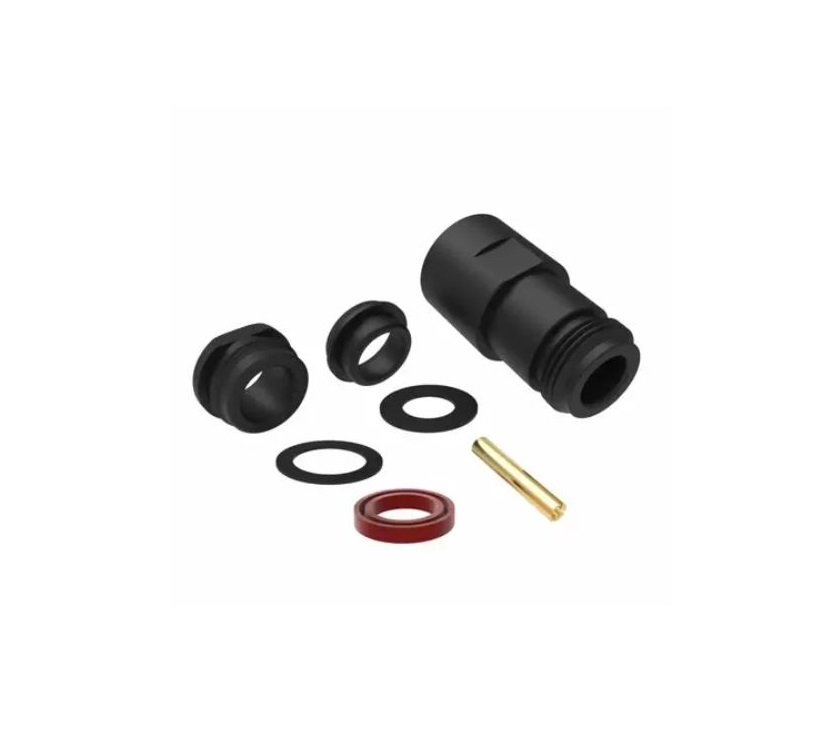

Amphenol RF a le plaisir d'élargir sa gamme de connecteurs plaqués noir, disponibles en configurations SMA et de type N, conçus pour les câbles LMR à faibles pertes.

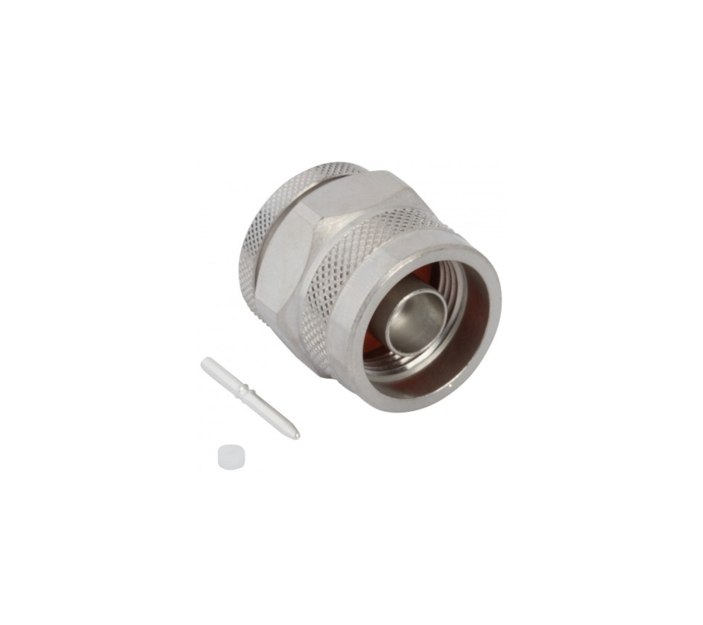

Amphenol RF élargit sa gamme de connecteurs de type N à bande passante étendue jusqu'à 18 GHz, idéaux pour les applications nécessitant des spécifications de performances plus élevées.

Amphenol Custom Cable (ACC) est fière d'annoncer l'élargissement de sa gamme d'assemblages de câbles préconfigurés disponibles chez Digi-Key Electronics.

Amphenol RF a le plaisir d'annoncer l'élargissement de sa gamme de connecteurs robustes de type N avec plusieurs nouvelles options étanches conformes à la norme IP67.

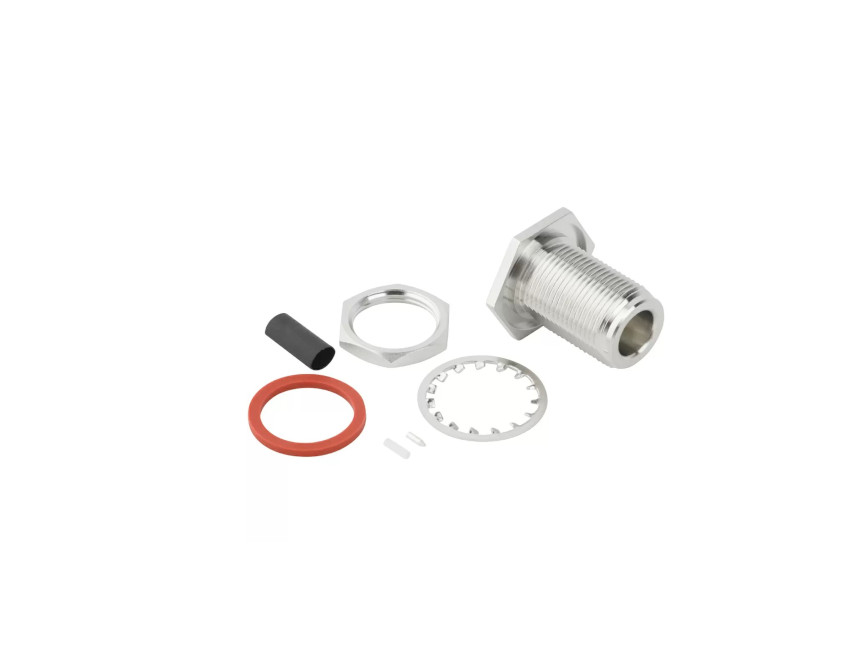

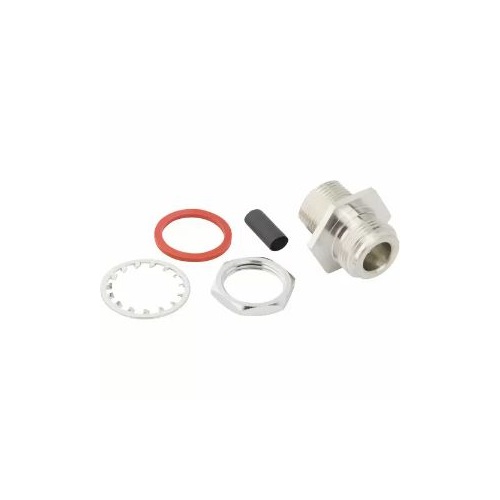

Amphenol RF a le plaisir d'annoncer l'élargissement de sa gamme de connecteurs de type N renforcés et certifiés IP, qui s'enrichit désormais d'une prise de cloison à montage arrière.

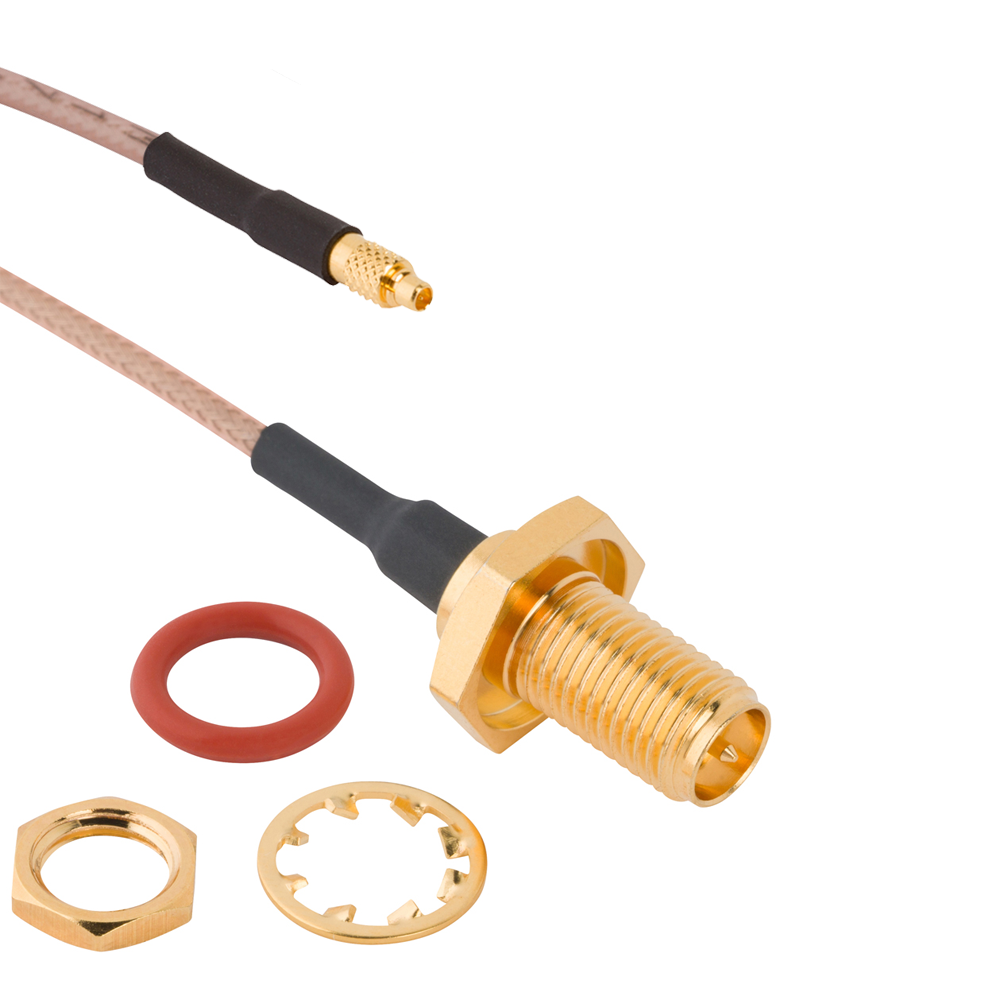

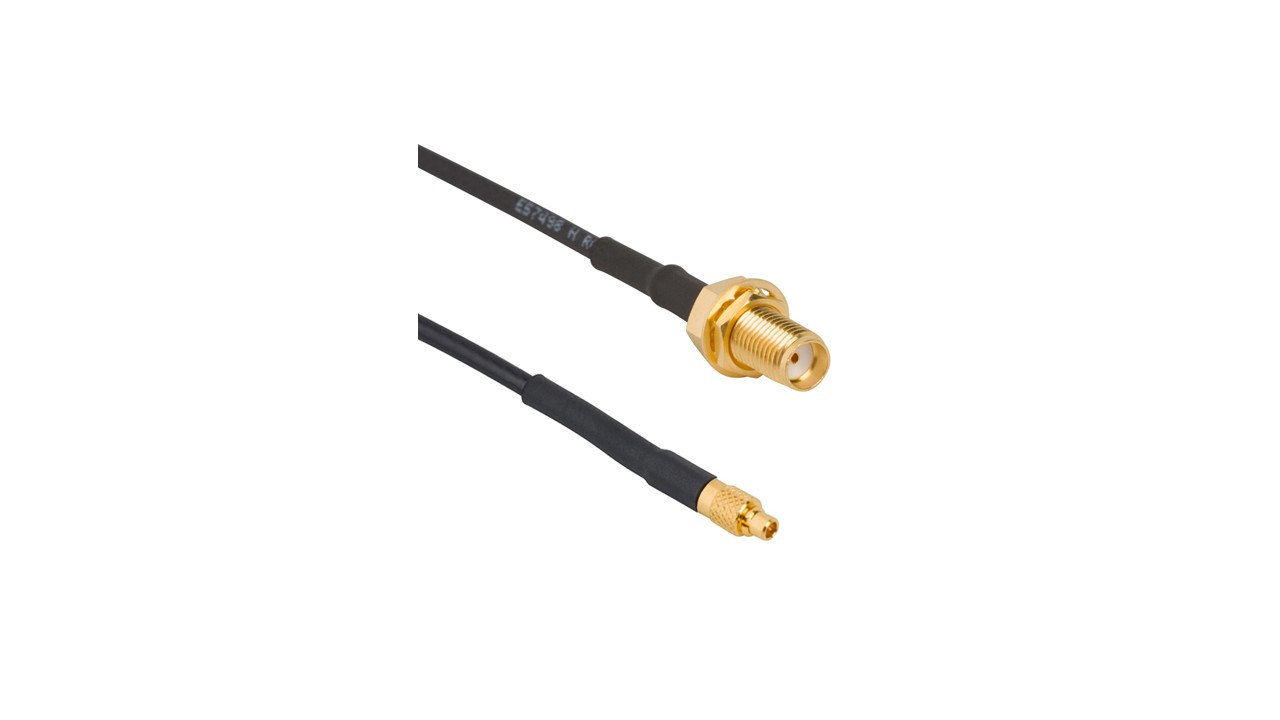

Amphenol RF élargit sa gamme d'assemblages de câbles préconfigurés avec de nouveaux assemblages MMCX conçus pour offrir une connectivité fiable aux modules de communication sans fil.

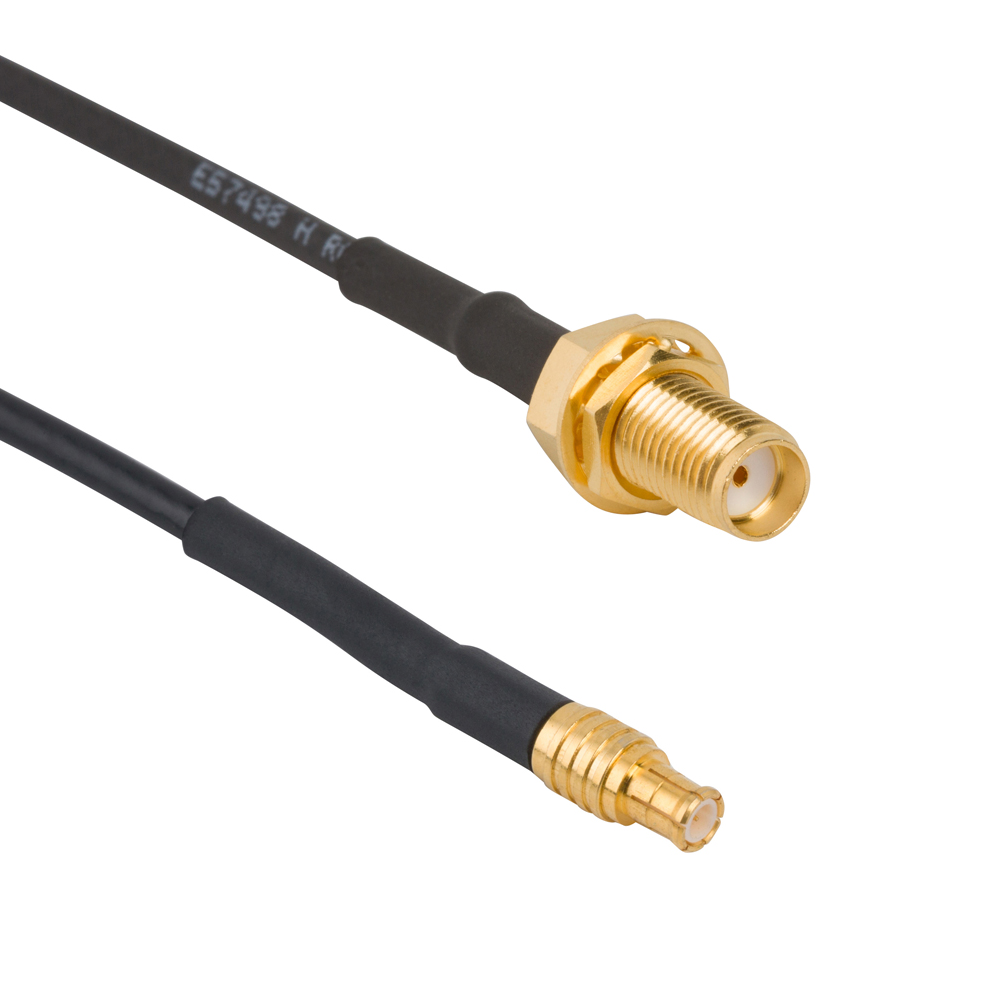

Amphenol RF élargit sa gamme d'assemblages de câbles avec des assemblages MCX conçus pour offrir une connectivité sécurisée et résistante aux intempéries aux systèmes de communication sans fil.

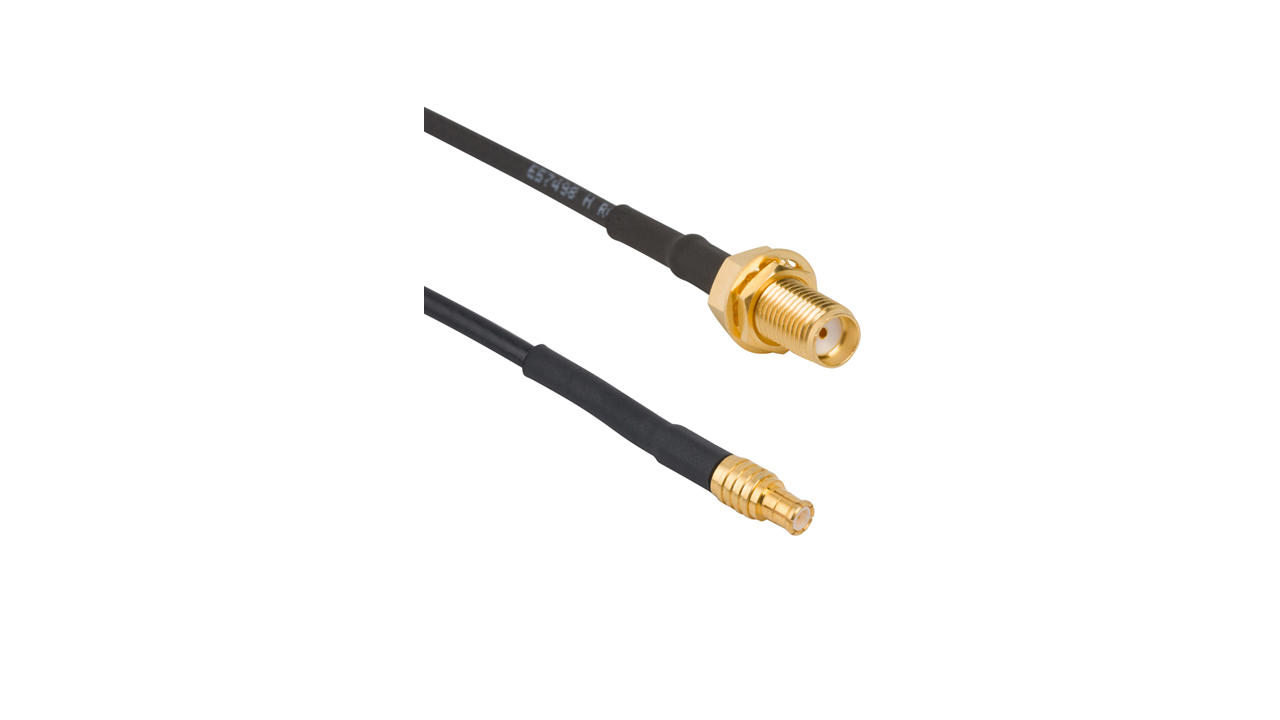

Amphenol RF élargit sa gamme d'assemblages de câbles préconfigurés avec de nouveaux assemblages MCX conçus pour offrir des connecteurs fiables destinés aux systèmes sans fil industriels et d'extérieur.

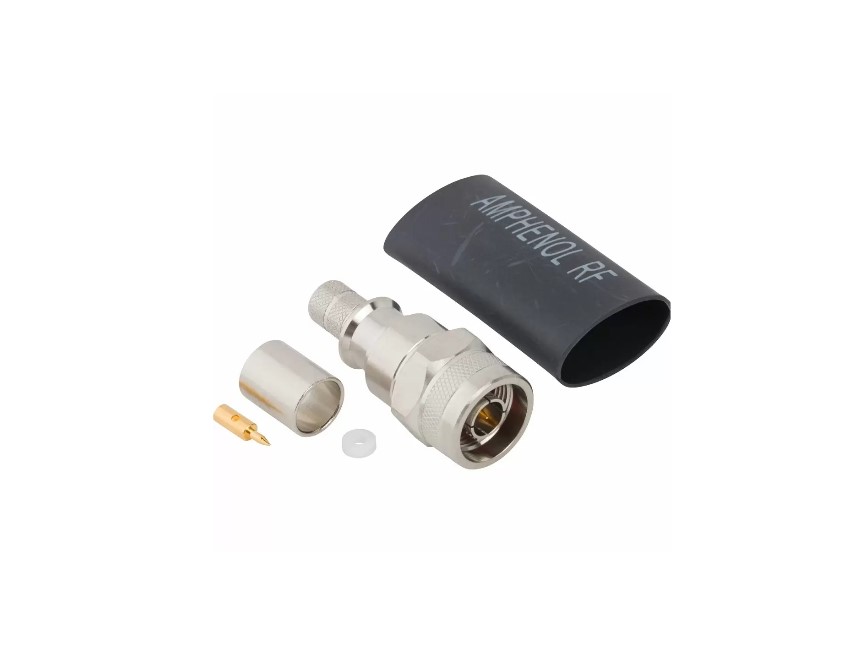

Connecteurs de type N à sertissage simple

In public safety, the difference between a device that looks capable and one that actually earns trust often comes down to the RF connection that sits behind it. Public safety is about the hardware in the field, but also about creating dependable signal paths for the systems that help protect people, property and critical infrastructure.

Amphenol RF élargit sa gamme d'assemblages de câbles avec des assemblages RG-58 hautement flexibles, conçus pour garantir des performances RF fiables dans les applications nécessitant des mouvements répétés, des chemins de câblage étroits et une meilleure résistance des câbles.

Amphenol RF élargit sa gamme d'assemblages de câbles avec de nouveaux assemblages MCX conçus pour offrir des connecteurs fiables destinés aux systèmes sans fil industriels et d'extérieur.

The Amphenol RF 2.2-5 Product Data Sheet highlights the 2.2-5 connector series, designed for high-performance RF applications requiring compact size, low PIM, and superior electrical performance. This connector series is engineered to support high-frequency, low-loss signal transmission, making it ideal for 5G networks, small cells, and distributed antenna systems (DAS). With a rugged, weatherproof design, these connectors ensure reliable performance in harsh environments while maintaining ease of installation through various coupling mechanisms, including threaded, push-pull, and hand-screw options.

Amphenol RF's 18 GHz N-Type connectors extend the frequency range of the traditional N-Type product line to 18 GHz, providing excellent low PIM performance in a durable, medium-sized package. These connectors are ideal for rugged, outdoor applications requiring high power handling and vibration resistance, with applications in microwave, wireless infrastructure, and radar systems.

Amphenol RF introduces a comprehensive line of 4.3/10 low PIM adapters, expanding their low PIM adapter product family. These adapters are designed for space-restricted, high-density, and weight-sensitive applications, offering superior PIM performance and reduced mating torque compared to 7/16 DIN connectors, with in-series and between-series configurations available.

The Field Installable N-Type Connector Cut Sheet presents a high-performance N-Type connector designed for quick and efficient field installation without requiring special tools. Engineered for low-loss, high-frequency applications, this connector ensures secure and reliable RF connections in demanding environments. It features a rugged, weatherproof design, making it ideal for outdoor and industrial use, while its low PIM (Passive Intermodulation) performance supports high-quality signal integrity.

The ATC-PS cable assemblies cutsheet provides info for ATC-PS cable assemblies, outlining their technical specifications, features, and applications. It provides precise information on the design and performance characteristics of these cable assemblies, including impedance, frequency range, insertion loss, and durability. The document highlights the materials used, ensuring reliability and high performance in demanding environments. Additionally, it specifies the industries and applications these cable assemblies are designed for, demonstrating their suitability for various high-frequency and precision connectivity needs.

The "Connectors Optimized for Low Loss Cables" guide by Amphenol RF features redesigned SMA, TNC, and N-Type connectors specifically tailored for Low Loss cables. These connectors, which include straight and right-angle plugs and jacks, provide enhanced shielding, improved grounding, and low signal loss for applications requiring high reliability, such as smart city infrastructure and IoT antenna systems. They support frequencies up to 12.4 GHz for SMA and 6 GHz for TNC and N-Type connectors, ensuring consistent electrical performance and quick, secure assembly with standard hex crimp tooling​​.

The document "Passive Intermodulation Distortion in Connectors, Cable and Cable Assemblies" by David Weinstein of Amphenol Corporation discusses the causes, impacts, and measurement of Passive Intermodulation Distortion (PIM) in RF components. It explains how PIM is generated by non-linear mixing in passive devices like connectors and cables, causing unwanted signals that can interfere with communication systems. The paper outlines design guidelines to minimize PIM, including contact design, material choices and cleanliness, and describes testing methods to ensure low PIM performance​​.

Amphenol RF's N-Type Connector Series features durable, weatherproof 50 ohm connectors that offer excellent RF performance from DC to 18 GHz. These connectors are ideal for applications requiring vibration resistance, such as antennas, base stations, radar systems, and WLAN, and are available in both PCB and cable-mount configurations to accommodate a wide variety of coaxial cables.

Amphenol RF's Nex10 Adapter Series features ruggedized, compact 50 ohm adapters offering reliable low PIM performance up to 6 GHz. These lightweight, threaded adapters are ideal for high-density applications such as antennas, small cells, distributed antenna systems (DAS), MIMO, and 5G/LTE, designed to reduce interference and maintain network quality.

The Amphenol RF MCX Cable Assemblies Data Sheet highlights between-series board-to-panel cable solutions designed for wireless communication modules. These assemblies combine compact MCX interfaces with rugged, sealed bulkhead connectors to enable reliable RF connectivity in space-constrained and environmentally exposed applications.

The Amphenol RF MMCX cable assemblies datasheet outlines pre-configured 50-ohm RF cable solutions using flexible RG-174 coax for reliable connections in wireless communication modules. It highlights available connector configurations, electrical performance characteristics, and suitability for applications such as IoT, GPS, Wi-Fi, and other compact RF systems.

This datasheet highlights Amphenol RF’s MCX cable assemblies for wireless communication modules, featuring between-series board-to-panel configurations built on flexible RG-316 cable for reliable performance up to 6 GHz. The assemblies combine MCX straight or right-angle plugs with rugged, IP67-rated bulkhead connectors—including SMA, RP-SMA, TNC, RP-TNC, and N-Type—designed to provide secure, sealed connections that protect systems from temporary water and fluid ingress. Optimized for short-distance RF applications, these cable assemblies offer high heat resistance, durability, and low signal loss, making them well-suited for portable IoT devices, drones, GPS/GNSS, Wi-Fi, and demanding industrial, agricultural, and construction environments, with a wide range of standard and custom cable lengths available.

This datasheet outlines the features and technical specifications of the Amphenol RF N-Type Single Crimp Connectors, designed for quick and reliable field installation without the need to crimp the contact separately. Supporting 50Ω impedance and reliable electrical performance up to 6 GHz, these connectors feature a threaded coupling mechanism for secure mating and are IP67 rated when mated for temporary protection against dust and water ingress. Built for durability, they offer vibration resistance, a wide operating temperature range of −65°C to +165°C, and up to 500 mating cycles. Constructed with a nickel-plated brass body, gold-plated beryllium copper contacts, and a PTFE insulator, the connectors ensure strong electrical performance, including low contact resistance and high insulation resistance. Ideal for antennas, base stations, and radar systems, the series is compatible with Times LMR® 195, 200, 400, and 600 cable types and provides a dependable, easy-to-install solution for demanding RF applications.
