Schutzkappen
Schützen Sie RF-Steckverbinder mit präzisem Staub-, Wetter- und Stoßschutz.
Übersicht

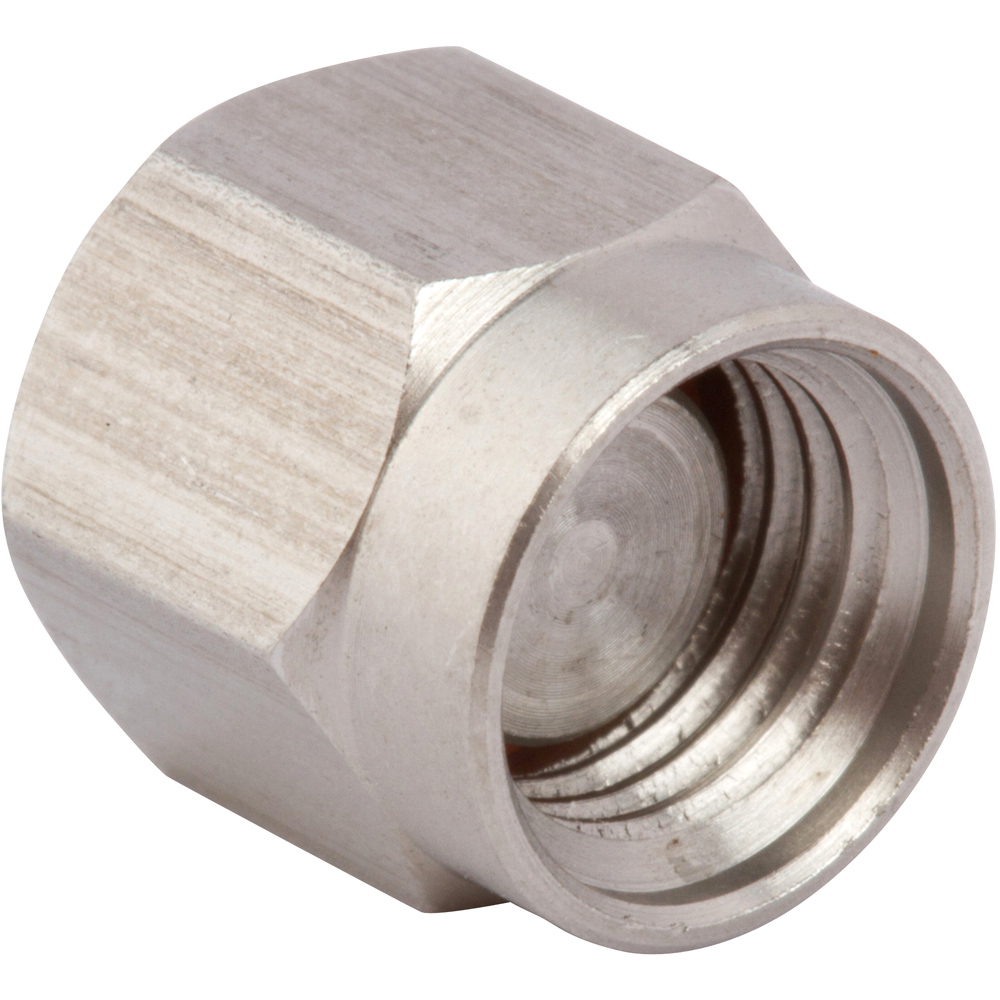

Die Schutzkappen von Amphenol RF bieten einen wesentlichen Schutz für unbenutzte oder freiliegende HF-Steckverbinderschnittstellen und tragen dazu bei, die Integrität und Leistung der Steckverbinder während des Transports, der Lagerung oder der Ausfallzeiten zu erhalten. Diese Kappen werden für eine große Auswahl an Standardsteckertypen angeboten, sowohl für serieninterne als auch für serienübergreifende Konfigurationen.
Unsere Schutzkappen sind nicht nur einfache Staubschutzkappen, sondern auch so konzipiert, dass sie die mechanische Ausrichtung, die Kontinuität der Abschirmung und in einigen Fällen auch die Abdichtung gegenüber der Umwelt gewährleisten. Ob zum Schutz von SMA-, TNC-, N-Typ-, BNC- oder speziellen HF-Schnittstellen, diese Kappen tragen dazu bei, die Lebensdauer von Steckverbindern zu verlängern und die Systembereitschaft aufrechtzuerhalten.
Merkmale und Vorteile
- Steckerkompatible Designs - erhältlich für alle wichtigen RF-Steckerschnittstellen (z. B. SMA, TNC, N-Type, BNC, UHF) sowohl in serieninterner als auch in serienübergreifender Ausführung
- Sichere Halteoptionen - viele Kappen sind mit Ketten, Haltevorrichtungen oder unverlierbarer Befestigung ausgestattet, um einen Verlust im Feld zu verhindern
- Schutz vor Umwelteinflüssen - bestimmte Designs verfügen über Dichtungsgeometrien oder Dichtungen für Feuchtigkeits- und Staubschutz (IP-zertifiziert, wo angegeben)
- Kontinuität der Abschirmung - leitfähige Schutzkappen helfen, die Kontinuität der RF-Abschirmung zu bewahren und die Streuung von elektromagnetischen Störungen zu reduzieren
- Einfach und kostengünstig - eine kleine Schutzkappe kann Schäden oder Verunreinigungen verhindern, die andernfalls eine Reparatur oder einen Austausch des Steckers erfordern würden
- Vielfältige Material- und Oberflächenoptionen - Messing, plattierte Metalle oder andere korrosionsbeständige Materialien zur Anpassung an die Steckverbinderumgebung
Wichtige technische Details
- Impedanz
Schutzkappen selbst sind passive Abdeckungen (keine intrinsische Impedanz), aber sie sind so konzipiert, dass sie die RF-Schnittstelle nicht stören oder verschlechtern. - Frequenzbereich
Nicht direkt anwendbar, aber die Kappengeometrien sind so konzipiert, dass sie den nutzbaren Frequenzbereich des Steckverbinders nicht beeinträchtigen (die tatsächliche Leistung ist durch Kabel/Steckverbinder begrenzt) - Steckzyklen
Die Kappen werden zwar nicht im Sinne von HF-Steckverbindern "gesteckt", aber die mechanischen Eingriffsmerkmale (Gewinde, Einpressen, Einrasten, Kettenrückstoß) sind für viele Zyklen des Entfernens und Austauschs ausgelegt. - Temperaturbereich
Typisch -65 °C bis +165 °C (je nach Beschichtung, Dichtungsmaterialien und Substrat) - Besondere Merkmale
IP-zertifizierte Dichtungsoptionen (sofern aufgeführt), unverlierbare Ketten oder Anbindungen, EMI-Kontinuität, korrosionsbeständige Oberflächen, Schutzgeometrien (z. B. gewölbte Schale, um Stößen zu widerstehen)
Anwendungen
Schutzkappen spielen eine wichtige, aber oft unterschätzte Rolle beim Schutz von RF-Systemen in allen Phasen der Entwicklung und des Lebenszyklus. Häufige Anwendungen sind:
- Abdecken ungenutzter Steckeranschlüsse während Installation, Transport oder Wartung
- Vorübergehendes Verschließen von Steckern in modularen oder rekonfigurierbaren Systemen
- Schutz von Steckverbindern im Feld oder in rauen Umgebungen (Staub, Feuchtigkeit, Vibration)
- Sicherstellen, dass Steckverbinder vor dem Zusammenstecken sauber und unbeschädigt bleiben
- Verwendung in Prüfständen, Montagelinien oder Bereitstellungsbereichen, in denen Steckverbinder freiliegen
- Kits für den Außendienst, um Steckverbinder vorübergehend abzudecken, während ein System teilweise zerlegt wird
