RF-Kabelkonfektionen
Hochleistungs-Koaxialkabel, die für die zuverlässige Übertragung von RF-Signalen entwickelt wurden - von serienmäßigen Standardverbindungen bis hin zu präzisen Test- und kundenspezifischen Lösungen
RF-Kabelkonfektionen
Die HF-Kabelbaugruppen von Amphenol RF bieten eine vielseitige Auswahl an Koaxialverbindungen, die den anspruchsvollen Anforderungen von Ingenieuren und Systemintegratoren gerecht werden. Erhältlich in Konfigurationen innerhalb der Serie (passende Steckverbinder), zwischen der Serie (ungleiche Steckverbinder) oder mit nicht abgeschlossenen/stumpf abgeschnittenen Enden liefern unsere Angebote eine konsistente HF-Leistung über eine Vielzahl von Kabeltypen - von flexiblen, halbstarren RG-Kabeln mit geringem Verlust bis hin zu 12-GHz-fähigen Optionen in Broadcast-Qualität.
Alle Standardkonfektionen (mit Ausnahme von Präzisionsprüfkabeln) werden auf Hochspannung und Kontinuität getestet. Präzisionsprüfkabel werden einem Sweep-Test unterzogen und mit einer Serialisierung versehen, um eine rückverfolgbare Genauigkeit in Prüf- und Messumgebungen zu gewährleisten.
Merkmale und Vorteile
- 12-GHz-Unterstützung für den Rundfunk - BNC-75-Ω-Kabelbaugruppen für 12G-SDI-High-Definition-Videoanwendungen.

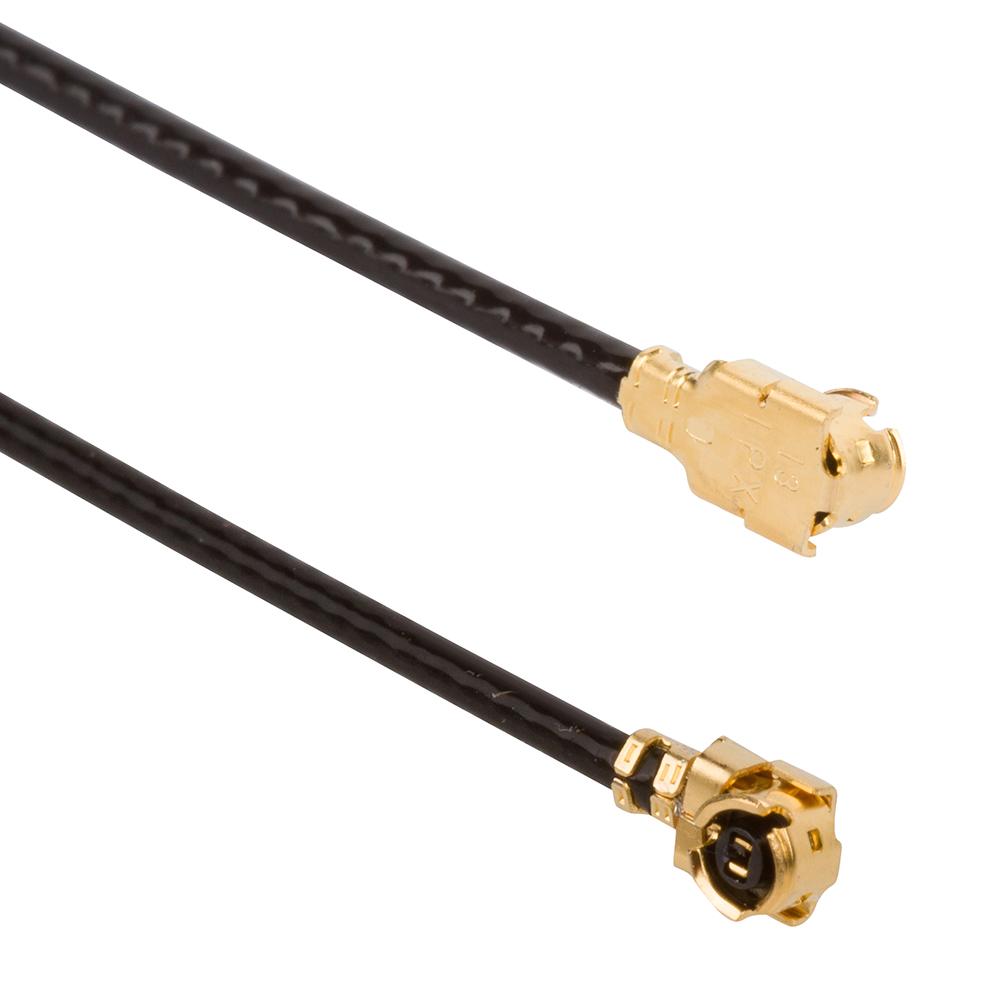

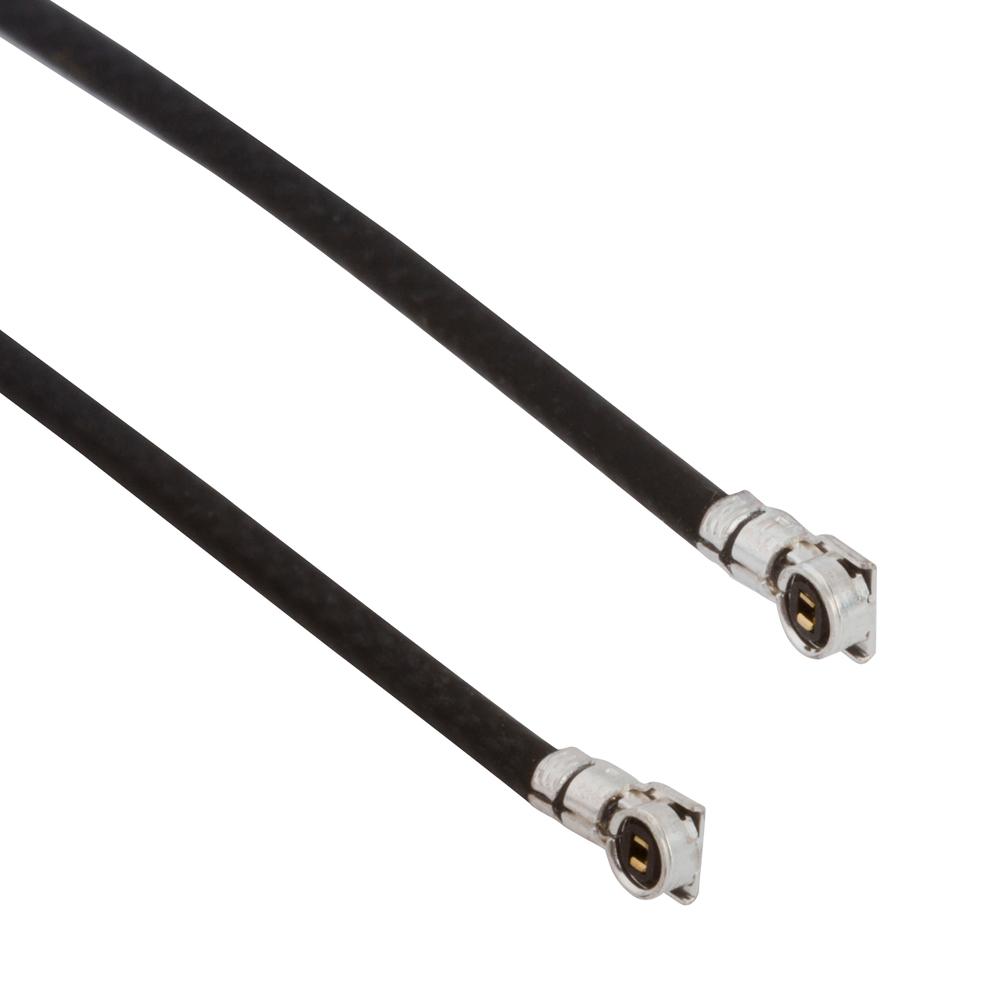

- Ultra-Miniaturserie - AMC-, AMMC- und AMC4-Miniaturbaugruppen mit Mikrokoaxialkabel, rechtwinkligen Steckerkonfigurationen und Kreuzkompatibilität zu Hirose U.FL® und I-PEX MHF I/MHF I LK®. Ausgewählte AMC/AMC4-Baugruppen unterstützen Frequenzen über 6 GHz.
- IP67 versiegelte Optionen - Wasserdichte Varianten sind in ausgewählten AMC4-zu-RP-SMA/FAKRA- und AMC-zu-SMA/TNC-Typen erhältlich.
- Test- und kundenspezifische Lieferung - Präzisions-Sweep-geprüfte Kabel (SMA/N-Typ) und reaktionsschneller QuickBuild RF-Konfigurator für kundenspezifische Konfektionslösungen.
Wichtige technische Details
| Spezifikation | Einzelheiten |
| Impedanz | 50 Ω (die meisten Serien); 75 Ω für Mini-SMB, SMB, BNC (Broadcast/Video-Varianten) |
| Frequenzbereich | DC bis 6 GHz (die meisten); erweitert bis zu 12 GHz für Broadcast-BNC; AMC/AMC4 kann 6 GHz überschreiten |
| Steckzyklen | Je nach Steckverbinderfamilie (z. B. SMA ~500 Zyklen; AMC/AMC4 aufgrund des Mikroformfaktors weniger) |
| Temperaturbereich | -40 °C bis +85 °C typisch; variiert je nach Kabel- und Steckerkonfiguration |
| Besondere Merkmale | IP67-abgedichtete Optionen (wählen Sie AMC, AMC4, SMA); 12-GHz-BNC mit Broadcast-Qualität; sweep-getestete, serienmäßige Testkabel |
Anwendungen
- Telekommunikations- und Drahtlossysteme - SMA-, TNC-, N- und AMC-Serien für Antennen-, Funk- und Infrastrukturverbindungen
- Rundfunk- und Videoproduktion - 75 Ω BNC, HD-BNC für 12G-SDI und hochauflösende Signalketten
- Test & Measurement - Hochpräzise, Sweep-geprüfte Baugruppen für kalibrierungsfähige Anwendungen
- Automotive & IoT - Kompakte AMC-, FAKRA- und abgedichtete Lösungen für Embedded- und Outdoor-Elektronik
- Industrie und raue Umgebungen - Langlebige IP-zertifizierte Baugruppen für robuste RF-Systeme
Durchsuchen Sie unser komplettes Angebot an standardmäßigen RF-Kabelkonfektionen, um ein Produkt zu finden, das Ihre Leistungs- und Schnittstellenanforderungen erfüllt. Für Baugruppen, die nicht standardmäßige Längen, Kabeltypen oder spezielle Leistungsparameter erfordern, verwenden Sie unseren QuickBuild RF-Konfigurator, oder wenden Sie sich an unser Entwicklungsteam, um eine kundenspezifische Lösung zu erstellen, die genau Ihren Anforderungen entspricht.
