RF-Abschlusswiderstände
Präzise angepasste Abschlüsse für Signalintegrität und Systemschutz
Übersicht
Amphenol RF bietet ein umfassendes Portfolio an HF-Abschlusswiderständen, die für den elektrischen Abschluss von HF-Anschlüssen und zur Vermeidung von Signalreflexionen entwickelt wurden. Durch die präzise Anpassung des Wellenwiderstands Ihres Koaxialkabels tragen diese Abschlusswiderstände dazu bei, die Signalklarheit aufrechtzuerhalten, den Leistungsverlust zu reduzieren und empfindliche Systemkomponenten in einem breiten Spektrum von Frequenzen und Steckertypen zu schützen.

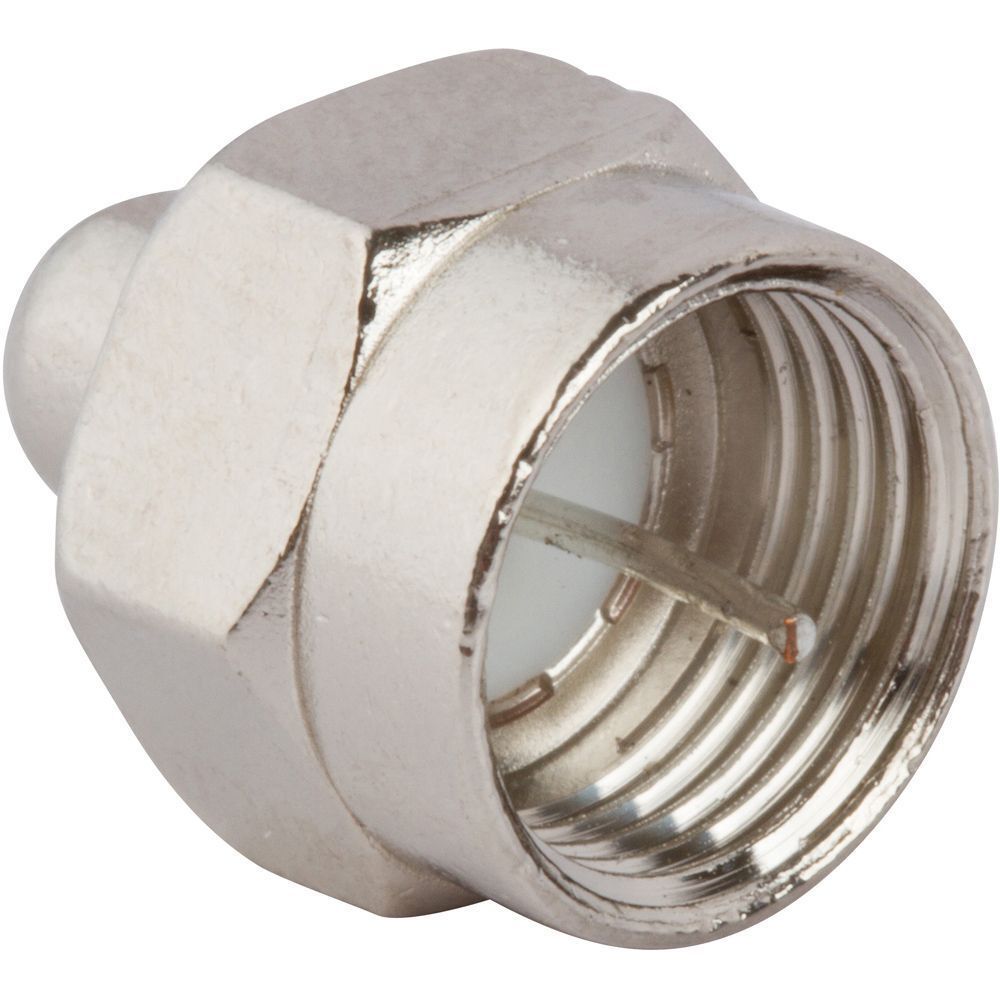

Unsere Abschlusswiderstände sind sowohl in serieninternen als auch in serienübergreifenden Konfigurationen erhältlich und eignen sich für alle branchenüblichen HF-Steckerschnittstellen, einschließlich BNC, SMA, TNC, N-Type, HD-BNC, RP-SMA, QMA, SMP, SMB, Mini-UHF, F-Type, 1.0/2.3 und 7-16. Diese Präzisionskomponenten sind unverzichtbar für Prüfstände, Rundfunkgeräte, Telekommunikationsinfrastrukturen und RF-Instrumente.
Merkmale und Vorteile
- Vollständige Abdeckung des Portfolios - Terminatoren sind in allen gängigen Steckertypen erhältlich und gewährleisten eine nahtlose Integration in Ihre bestehenden HF-Testaufbauten und Kabelkonfektionen.
- Sicherstellung der Signalintegrität - Präzise angepasste Impedanz minimiert Reflexionen und trägt zur Aufrechterhaltung rauscharmer und sauberer Signalwege bei.
- Vielseitigkeit bei Leistung und Frequenz - Die Optionen unterstützen Frequenzbereiche von DC bis GHz und Leistungswerte, die für typische Labor-, Rundfunk- und Telekommunikationsanwendungen geeignet sind.
- Langlebige Konstruktion - Das robuste Design und die für Steckverbinder geeigneten Materialien gewährleisten eine zuverlässige mechanische und elektrische Leistung über zahlreiche Steckzyklen hinweg.
- Benutzerfreundlichkeit - Erhältlich in Stecker- und Buchsenausführung, mit Optionen wie Ketten zur Sicherung und schnellen Bereitstellung.
Wichtige technische Details
- Impedanz: 50 Ω- und 75 Ω-Konfigurationen zur Anpassung an Standard-HF-Systeme.
- Frequenzbereich: Es gelten typische Steckverbinder-Frequenzgrenzen (z. B. SMA bis ~18 GHz, BNC bis ~12 GHz mit 12G-Rundfunkkabel), kabelabhängige Leistung.
- Steckzyklen: Variiert je nach Steckverbinderserie - z. B. BNC-Bajonett, SMA/TNC mit Gewinde, SMP/SMPM zum Aufstecken; die tatsächlichen Zyklen hängen von der Kombination aus Steckverbinder und Kabel ab.
- Leistungsaufnahme: Bis zu ~2 W bei Standard-Abschlusswiderständen; N-Typ-Abschlusswiderstände unterstützen Anwendungen mit höherer Frequenz und moderater Leistung.
- Aufbau: Bearbeitete Gehäuse mit haltbarer Beschichtung; ausgewählte Modelle sind mit Kettenbefestigung für eine einfache Bereitstellung erhältlich.
Anwendungen
- Prüfung und Messung: Verwendung als Dummy-Lasten zum Abschluss von Anschlüssen an Netzwerkanalysatoren, Spektrumanalysatoren und Testvorrichtungen.
- Rundfunk und Video: Hochfrequenz-BNC-Abschlusswiderstände für 12 GHz 12G-SDI-Videoleitungen verhindern Reflektionen und Signalverzerrungen.

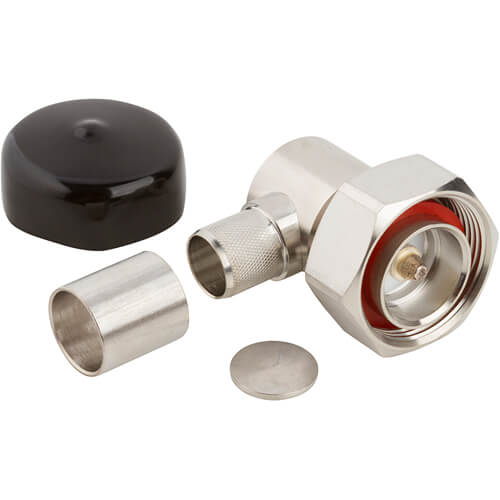

- Telekommunikation und drahtlose Infrastruktur: N-Typ- und 7-16-Abschlusswiderstände, die in BTS- und DAS-Installationen verwendet werden.
- Bewertung von Bauteilen: Ideal für die Laborcharakterisierung von Verstärkern, Filtern und Empfängern.
- RF-Prototyping: Schnellverbindungsoptionen unterstützen eine schnelle Iteration und flexible Montage.
Wenn Ihr System eine kundenspezifische Impedanz-, Leistungs- oder Umgebungsspezifikation erfordert, wenden Sie sich an unsere Ingenieure, um eine maßgeschneiderte Lösung für Ihre Anwendung zu entwickeln.
Spezifikationen
| Parameter | Wert / Bereich |
| Impedanz | 50 Ω und 75 Ω Optionen zur Anpassung an die Systemimpedanz |
| Frequenzbereich | Steckerabhängig (z. B. BNC bis zu ~12 GHz mit Broadcast-Kabel; SMA/TNC/N-Type bis zu ~18 GHz) |
| Steckzyklen | Pro Steckertyp: BNC (Bajonett), SMA/TNC (mit Gewinde), SMP usw.; tatsächliche Zyklen variieren je nach Montage |
| Temperaturbereich | -40 °C bis +85 °C typisch; kann je nach Steckertyp und Kabeltyp variieren |
| Besondere Merkmale | Optionen für Kettenbefestigung; robuste Metallgehäuse; sowohl serieninterne als auch serienübergreifende Ausführungen |
