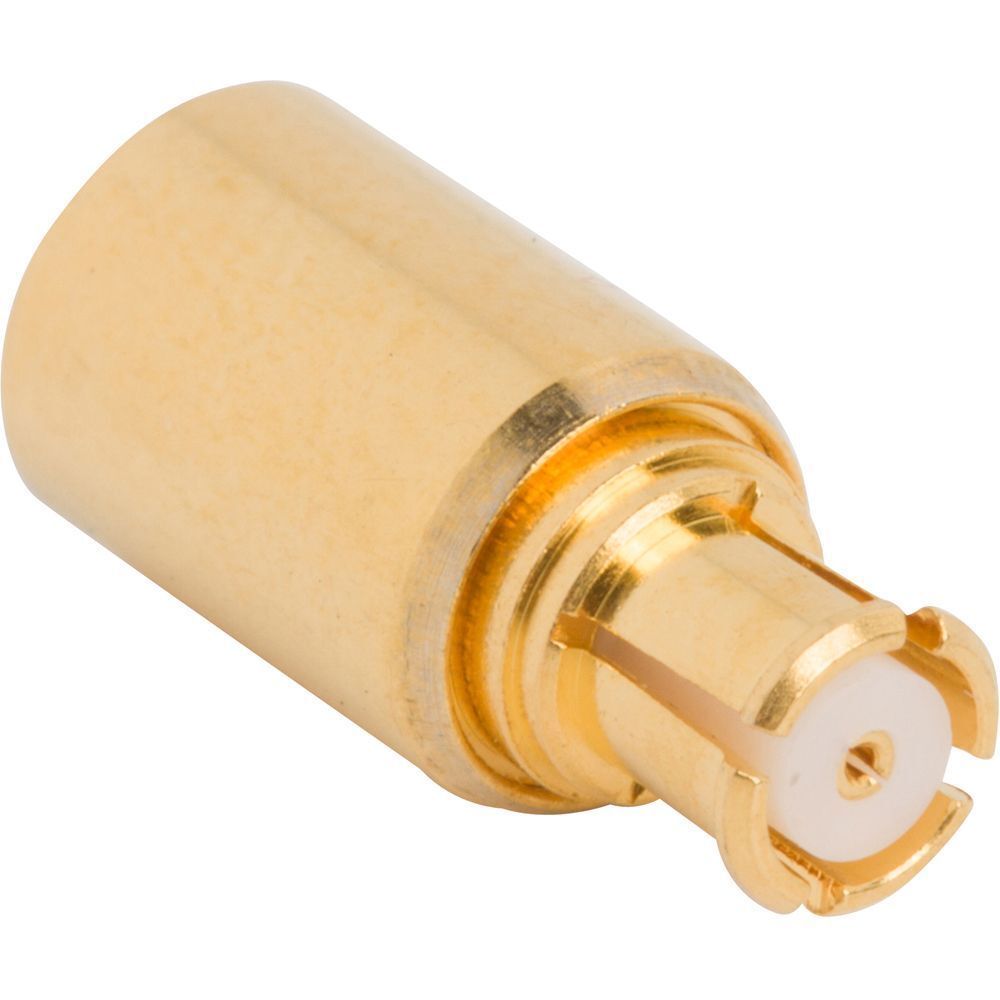

SMP-Terminatoren
Kompakte 50 Ω-HF-Abschlüsse auf der SMP-Steck-/Schnappschnittstelle für Hochdichte- und Hochfrequenzanwendungen
Übersicht
Die SMP-Terminator-Familie von Amphenol RF bietet Entwicklern und Systemintegratoren eine Terminierungslösung, die auf die SMP-Steckerschnittstelle abgestimmt ist. Die SMP-Schnittstelle ist ein Subminiatur-Koaxialformat, das Breitbandbetrieb unterstützt (bis zu DC-40 GHz in der Steckverbinderfamilie) und häufig in miniaturisierten Hochfrequenz-Koaxialmodulen und Cable-to-Board- oder Board-to-Board-Baugruppen verwendet wird.
Wenn ungenutzte Anschlüsse oder Signalpfade in HF-Systemen vorhanden sind - sei es in Messgeräten, Kommunikationsmodulen oder dichten HF-Baugruppen - sorgen SMP-Abschlusswiderstände für eine ordnungsgemäße 50 Ω-Anpassung, reduzieren Reflexionen und tragen zur Erhaltung der Systemintegrität bei. Mit ihrer Fähigkeit, hohe Frequenzen und kompakte Formfaktoren zu verarbeiten, sind diese Abschlüsse ideal für moderne RF-Architekturen.
Merkmale und Vorteile
- Standard 50 Ω Impedanzabschluss, passend zur SMP-Steckerfamilie, vereinfacht die Lagerhaltung und Auswahl.
- Hochfrequenz-Fähigkeit: SMP-Steckverbinder unterstützen DC bis ~26,5 GHz (und bis zu ~40 GHz in erweiterten Designs), wodurch sichergestellt wird, dass die Abschlüsse die Anforderungen moderner RF-Module erfüllen können.
- Kompakte Push-On- oder Snap-On-Kupplung ermöglicht eine schnelle Installation und Demontage, was in Umgebungen mit hoher Moduldichte von Vorteil ist.
- Die kleine Grundfläche unterstützt dichte Board-to-Board- oder Cable-to-Board-Layouts, bei denen Platzeinsparungen entscheidend sind.
- Vertrauenswürdige Herstellung und Dokumentation durch Amphenol RF bieten Vertrauen in die Einhaltung der Spezifikationen und Unterstützung der Lieferkette.
Wichtige technische Details
- Impedanz: 50 Ω Standard für die SMP-Abschlussprodukte.
- Frequenzbereich: Die genaue Leistung des Abschlusses hängt von der Teilenummer und dem Kabel/der Baugruppe ab, aber die Daten zeigen, dass SMP-Abschlüsse bis zu ~26,6 GHz in vielen katalogisierten Artikeln vorhanden sind.
- Steckzyklen: Die SMP-Steckverbinderfamilie ist für mindestens 100 Steckzyklen unter Standardbedingungen ausgelegt. Die Haltbarkeit der Terminatoren hängt von der Einsatzumgebung ab.
- Temperaturbereich: Der typische Betriebsbereich liegt bei -65 °C bis +165 °C für die Steckverbinderfamilie und die katalogisierten SMP-Abschlusswiderstände.
- Besondere Merkmale: Miniaturgröße, Push-on-Kupplung, Hochfrequenzfähigkeit. Hinweis: Standard-SMP-Abschlusswiderstände sind nicht hermetisch abgedichtet und entsprechen nicht der Schutzart IP67, es sei denn, dies ist ausdrücklich im Datenblatt des Teils angegeben.
Anwendungen
- HF-Module und Subsystemplatinen, bei denen die SMP-Schnittstelle verwendet wird und ungenutzte Ports einen ordnungsgemäßen Abschluss erfordern, um die Signalintegrität zu wahren.
- Hochfrequenzinstrumente und Testgeräte, die die Vorteile der SMP-Breitbandfähigkeit und Abschlüsse für ungenutzte Anschlüsse oder Kalibrierungspfade nutzen.
- Dichte Kabelbaugruppen oder Backplane-Verbindungen, bei denen die Abstände zwischen den Platinen begrenzt sind und die Abschlüsse bei gleichbleibender Leistung möglichst wenig Platz beanspruchen müssen.
- Baugruppen für die drahtlose Kommunikation, RF-Module für die Luft- und Raumfahrt oder die Verteidigung, bei denen ein kompakter Formfaktor und die Zuverlässigkeit der Anschlüsse entscheidend sind.
- Koaxialkabelbaugruppen und Hochgeschwindigkeitsdatenpfade mit SMP-Steckverbindern, bei denen angepasste Abschlüsse erforderlich sind, um Reflexionen zu begrenzen und die Systemstabilität zu erhalten.
Entdecken Sie unser komplettes SMP-Abschlussportfolio von Amphenol RF. Wenn Ihre Anwendung eine vom Standard abweichende Nennleistung, eine kundenspezifische Kabelführung, eine spezielle Oberfläche oder eine über den Standardkatalog hinausgehende Versiegelung erfordert, wenden Sie sich an unser Entwicklungsteam, um eine maßgeschneiderte Lösung für Ihre Anforderungen zu finden.
