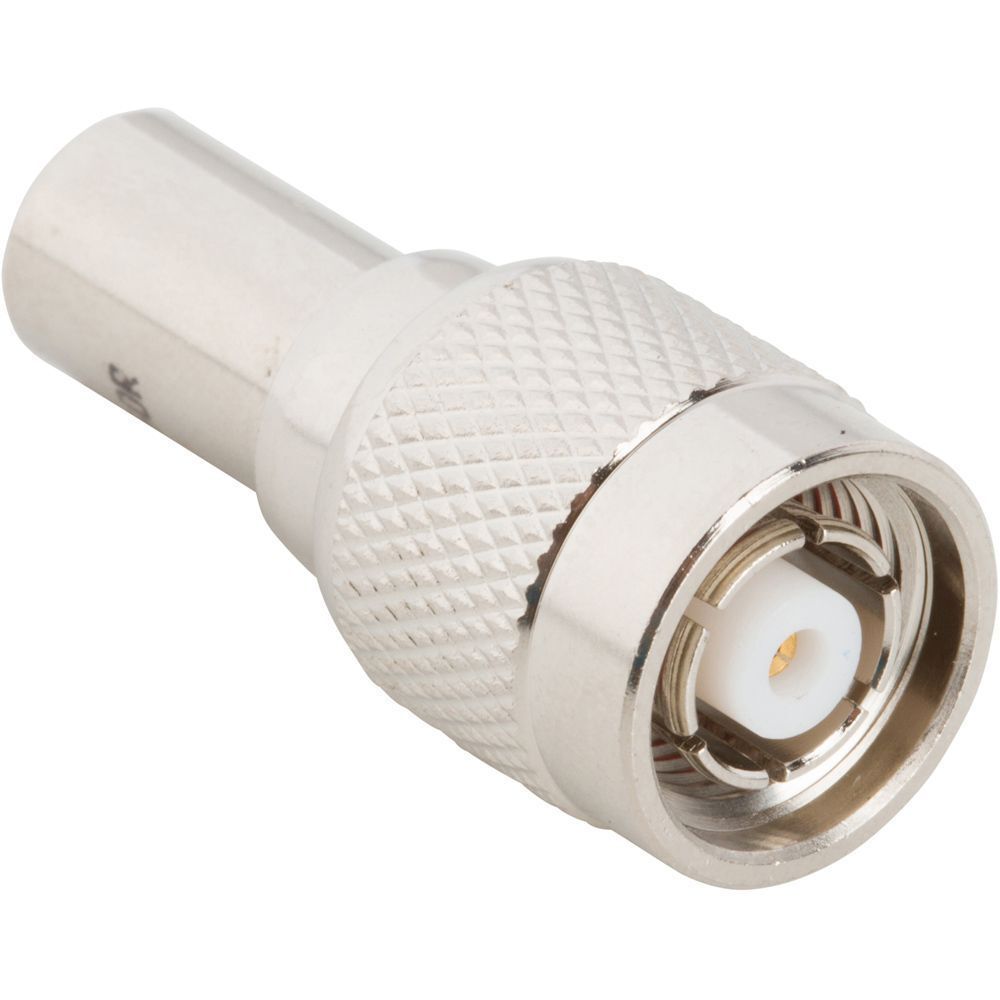

TNC-Terminatoren
Robuste 50 Ω RF-Anschlüsse für die TNC-Schnittstelle mit Gewinde, um einen zuverlässigen Anschluss und Signalintegrität zu gewährleisten
Übersicht
In vielen HF-Systemen ist die Terminierung ungenutzter Anschlüsse von entscheidender Bedeutung, um die Leistung aufrechtzuerhalten, Signalreflexionen zu vermeiden und die Systemintegrität zu gewährleisten. Unsere TNC-Abschlusswiderstände, die auf die Standard-TNC-Gewindeschnittstelle abgestimmt sind, bieten eine robuste Lösung für die richtige Impedanzanpassung in Kabelbaugruppen und HF-Netzwerken. Da die zugrundeliegende TNC-Steckverbinderserie eine Leistung von DC-11 GHz (und einen erweiterten Bereich bis ~18 GHz) unterstützt, eignen sich diese Terminatoren hervorragend für anspruchsvolle Anwendungen.
Mit den gleichen mechanischen Konstruktionsmerkmalen wie die TNC-Steckverbinderfamilie - wie z. B. Gewindekupplung, Vibrationsfestigkeit und breite Umwelttoleranz - tragen diese Abschlüsse dazu bei, dass Systeme eine stabile HF-Leistung erhalten und gleichzeitig die Systemmontage und -wartung vereinfacht wird.
Merkmale und Vorteile
- 50 Ω Impedanz-Standard, passend für die meisten TNC-Steckverbindersysteme für gleichbleibende HF-Leistung und vereinfachte Teileauswahl.
- Der Kupplungsmechanismus mit Gewinde sorgt für sichere Verbindungen, selbst in vibrationsintensiven oder mobilen Umgebungen, und verhindert so ein versehentliches Trennen der Verbindung.
- Breites Frequenzspektrum - die Steckverbinderreihe unterstützt DC-11 GHz (und bis zu ~18 GHz für erweiterte Designs) - wodurch die Abschlusswiderstände mit einer Vielzahl von HF-, Mikrowellen- und Testgeräteanwendungen kompatibel sind.
- Langlebige Materialien und ein Design, das anspruchsvollen Umgebungen gerecht wird; geeignet für den Einsatz in der Telekommunikation, in industriellen Drahtlosnetzwerken, im Rundfunk und in militärischen Plattformen.
- Standardisierter Footprint und standardisierte Schnittstellen helfen Ingenieuren und Beschaffungsexperten bei der Rationalisierung von Inventar, Wartung und Systemintegration.
Wichtige technische Details
- Impedanz: 50 Ω nominal, gemäß der Spezifikation der TNC-Steckverbinderserie.
- Frequenzbereich: DC bis ~11 GHz ist typisch für die TNC-Schnittstelle; Versionen mit erweitertem Bereich unterstützen bis zu ~18 GHz. Die Leistung des Terminators hängt von der Konfiguration und Montage ab.
- Steckzyklen: Die TNC-Steckverbinderserie ist für mindestens 500 Steckzyklen ausgelegt. Die Verwendung des Terminators kann je nach Systemdesign und Umgebung variieren.
- Temperaturbereich: -65 °C bis +165 °C typisch für die TNC-Steckverbinderfamilie. Der tatsächliche Wert für einen bestimmten Abschlusswiderstand hängt von Material, Montage und Konfiguration ab.
- Besondere Merkmale: Gewindekupplung für Vibrationsbeständigkeit, starke mechanische Integrität, breite Verwendung. Hinweis: Die Standard-TNC-Abschlusswiderstände dieser Serie sind nicht als hermetisch abgedichtet aufgeführt oder als IP67 spezifiziert, sofern nicht anders angegeben.
Anwendungen
- Telekommunikations-Basisstationen und drahtlose Infrastrukturen im Freien, bei denen TNC-Anschlüsse ordnungsgemäß abgeschlossen werden müssen, wenn sie nicht in Gebrauch sind, um Reflexionen oder Signalverluste zu vermeiden.
- Industrielle Drahtlos- und Transportsysteme, bei denen die mechanische Zuverlässigkeit bei Vibrationen, Stößen oder Bewegungen kritisch ist und die Terminierung damit Schritt halten muss.
- Rundfunk- oder Messgeräte-Racks mit TNC-Schnittstellen, bei denen ungenutzte Zellen oder Anschlüsse abgeschlossen werden müssen, um die Signalkalibrierung und -integrität zu erhalten.
- Test- und Messeinrichtungen mit TNC-Steckverbindern, bei denen eine angepasste Terminierung von Ersatz- oder Messanschlüssen für genaue Ergebnisse erforderlich ist.
- Kabelkonfektionssysteme oder HF-Module, bei denen die Standard-TNC-Schnittstelle verwendet wird und eine ordnungsgemäße Terminierung Teil der Systemzuverlässigkeit und Wartungspraxis ist.
Durchsuchen Sie unser komplettes Angebot an TNC-Abschlusswiderständen von Amphenol RF, um die richtige Lösung für Ihr System zu finden. Wenn Sie einen kundenspezifischen Leistungswert, eine abgedichtete oder umweltfreundliche Variante, eine andere Impedanz oder eine nicht standardisierte Konfiguration benötigen, wenden Sie sich bitte an unser Entwicklungsteam für eine maßgeschneiderte Lösung.
