New Products

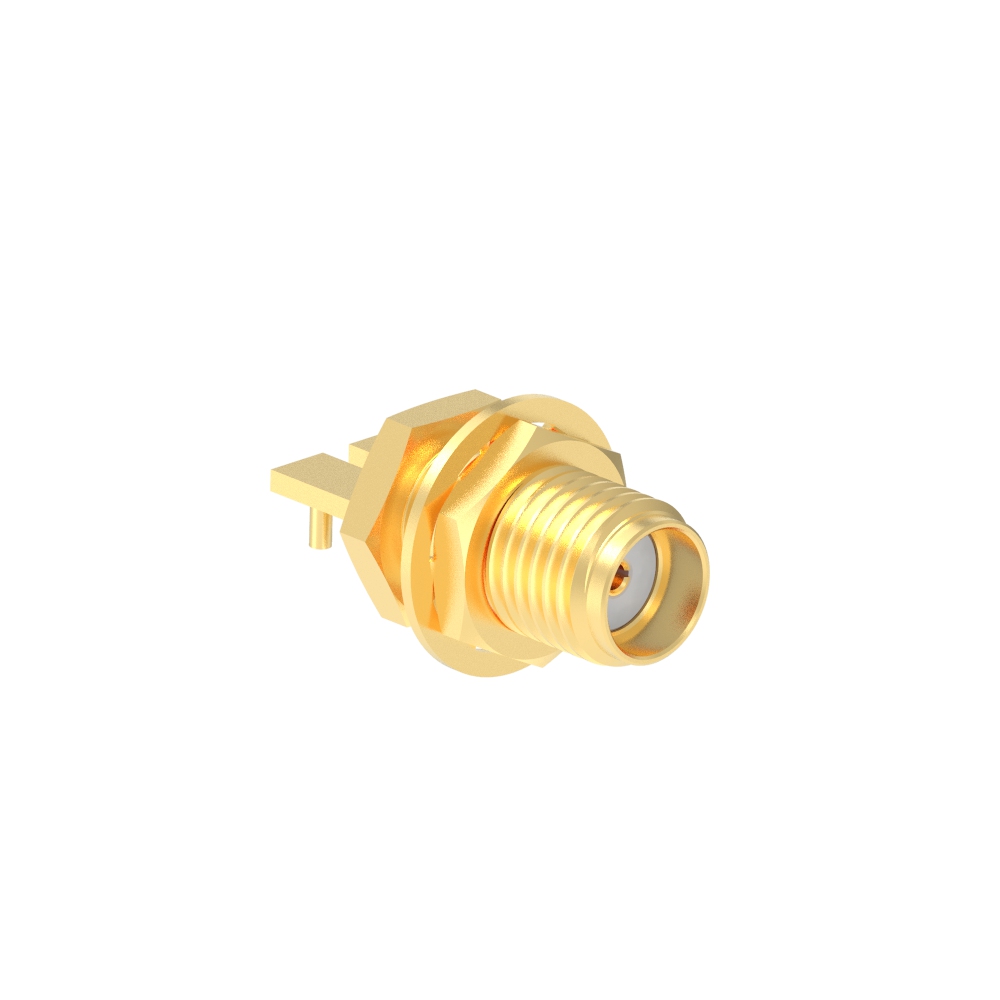

End-Launch SMA Bulkhead
The end-launch rear-mount SMA Bulkhead connector offers low VSWR performance which ensures reliable impedance matching and signal integrity. The end-launch PCB interface has a 10 millimeter center pin which supports controlled impedance transitions at the board edge. This SMA bulkhead jack is highly optimized for RF and microwave instrumentation, enclosure-mounted communication systems and industrial RF equipment applications.
This connector is constructed from gold-plated brass body and beryllium copper contact, which improves conductivity for a 26.5 GHz frequency range capacity. It also features a gold-plated brass hex nut and washer, along with a natural PTFE insulator. The 500 mating cycle rated interface of the connector meets the MIL-STD-348 specification ensuring compatibility with standard SMA mating connectors.
This connector is constructed from gold-plated brass body and beryllium copper contact, which improves conductivity for a 26.5 GHz frequency range capacity. It also features a gold-plated brass hex nut and washer, along with a natural PTFE insulator. The 500 mating cycle rated interface of the connector meets the MIL-STD-348 specification ensuring compatibility with standard SMA mating connectors.
Eigenschaften
• Performance up to 26.5 GHz• Meets the MIL-STD-348 standard
• Dependable corrosion resistance
Anwendungen
• Microwave instrumentation• Enclosure-mounted communication systems
• Industrial RF equipment
