配件
支持整个射频连接器系统的安装、保护和性能的基本解决方案
概述
Amphenol RF 的射频附件组合旨在增强射频互连系统的功能性、耐用性和通用性。从连接器保护和应力消除到安全的面板安装和简化的电缆端接，这些范围广泛的高性能组件可为您提供各种支持。无论您是在现场安装、配置测试台还是构建定制组件，我们的附件都能帮助工程师实现清洁、可靠和可维护的射频系统。
我们的配件系列包括专用后壳、精密组件、硬件套件、保护帽、减小适配器、应力消除套和短路帽。每件产品都经过精心设计，与我们的射频连接器具有机械兼容性，并按照性能、适用性和环境耐久性的行业标准制造。
特点和优势
- 全面的配件支持- 包括后壳、卡套、触点、螺母、垫圈、垫片等
- 连接器和电缆保护- 使用保护帽和应力消除套，防止磨损和环境侵入
- 安装和服务效率- 利用易于安装的硬件、减少的适配器和便于使用工具的安装解决方案减少停机时间
- 多功能兼容性- 设计用于 SMA、BNC、TNC、N 型、HD-BNC、1.0-2.3、迷你超高频等连接器系列
- 更高的可靠性- 短路帽和密封选件可确保信号完整性和所需的环境保护
主要技术细节
- 为高频连接器类型提供后壳和保护帽

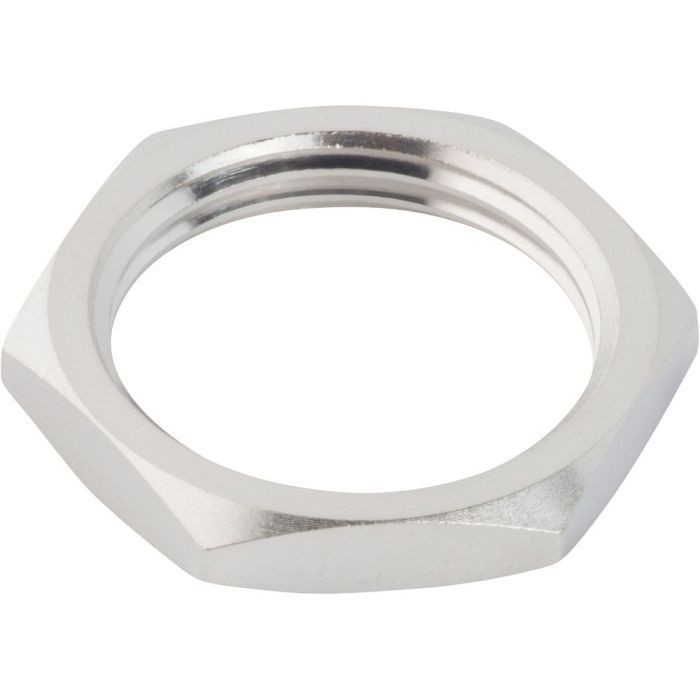

- 硬件包括扳手螺母、垫圈和安装垫圈，以确保底盘的安全集成
- 组件（如触头、卡套和卷带包装）可简化大规模生产
- 缩小适配器可实现不同尺寸连接器之间的无缝互连
- 精选的保护帽和短路帽提供 IP67 等级的环境密封性
- 所有附件均经过精密加工或注塑成型，以确保机械一致性
应用
- 测试和测量 - 保护未使用的端口、模拟短路情况并管理触点定位
- 现场和底盘安装- 使用扳手螺母、后壳和应力消除套在苛刻的环境中确保连接安全
- 高密度面板系统- 使用缩小适配器和扁平配件来管理空间和兼容性
- 射频维护和维修- 使用保护帽和短路帽保持系统清洁并正确端接
浏览我们完整的射频附件目录，为您的系统设计或现场应用找到合适的解决方案。如需定制配置或有关附件兼容性的指导，请联系我们的应用工程团队。
