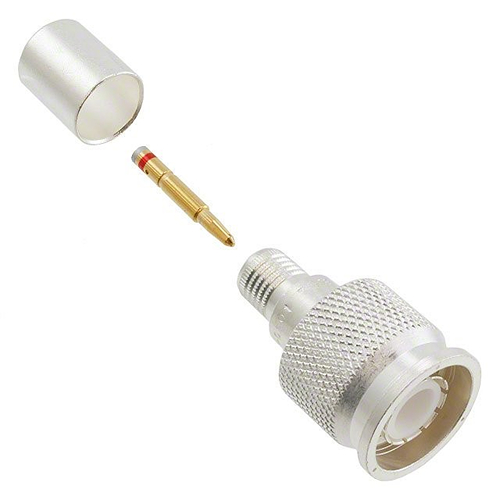

SC 型连接器
安全、符合 MIL 标准的同轴连接器，可在恶劣环境中使用高达 11 GHz 的频率
概述
Amphenol RF 的 SC 型连接器在紧凑的螺纹封装中结合了军用级可靠性和高频性能。SC 型连接器的设计和测试符合 MIL-C-39012 D 类标准，可确保为要求苛刻的射频应用提供精确的工程设计和一致的性能。
SC 型连接器专为稳定性而设计，具有坚固的螺纹耦合和中等尺寸的外形，适合空间有限的设备。它们的性能高达 11 GHz，是仪器仪表、航空航天和国防环境中需要可靠射频互连的系统的理想选择。
特性和优势
- 符合 MIL-C-39012 Cat.D- 工程设计符合严格的美国空军标准
- 高频能力高达 11 GHz- 与射频系统具有广泛的兼容性
- 螺纹耦合--提供安全连接，抗振动和冲击
- 中等尺寸- 兼顾节省空间和机械坚固性
- 稳定的电气性能- 适合精密和任务关键型应用
主要技术细节
- 阻抗50 Ω
- 频率范围直流至 11 GHz（取决于电缆和 PCB）
- 额定电压连续 1000 Vrms
- 绝缘耐压：最大 3000 Vrms
- 耦合方式：螺纹式
- MIL 认证：MIL-C-39012 D 类
应用
- 军事和航空航天射频系统
- 精密测试和测量设备
- 高性能雷达组件
- 仪器仪表和实验室级射频互连器件
了解我们的标准 SC 型产品选项，以获得可靠的高频螺纹同轴解决方案。如果您的应用需要修改或定制配置，我们的工程团队可随时提供定制的 SC 型组件。
Specifications
SC-Type Connectors
Electrical
| Impedance | 50 Ohm |
| Frequency Range | DC - 11 GHz |
| Voltage Rating | 1000 Volts RMS Continuous |
| Dielectric Withstanding Voltage | 3000 VRMS Max |
| VSWR (Return Loss) | |
|
DC - 11 GHz
|
1.35 (-16 dB) Max |
| Insulation Resistance | 5000 MΩ Min |
| Center Contact Resistance | 1.0 mΩ Max |
| Outer Contact Resistance | .15 mΩ Max |
Environmental
| Temperature Range | −65°C to +165°C |
| Corrosion | MIL-STD-202, Method 101 (Test Condition B) - 5% Salt Solution |
| Vibration | MIL-STD-202, Method 204 (Test Condition B) |
| Mechanical Shock | MIL-STD-202, Method 213 (Test Condition B) - No Discontinuity Permitted |
| Moisture Resistance | MIL-STD-202, Method 106 |
Mechanical
| Mating Cycles | 500 Min |
| Coupling Mechanism | Threaded |
| Interface Specification | MIL-STD-348 |
| Mating Torque, Min Working | 6 - 10 inch-pounds (0.7 - 1.1 N-m) |
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
Interface Dimensions
Plug
Jack
