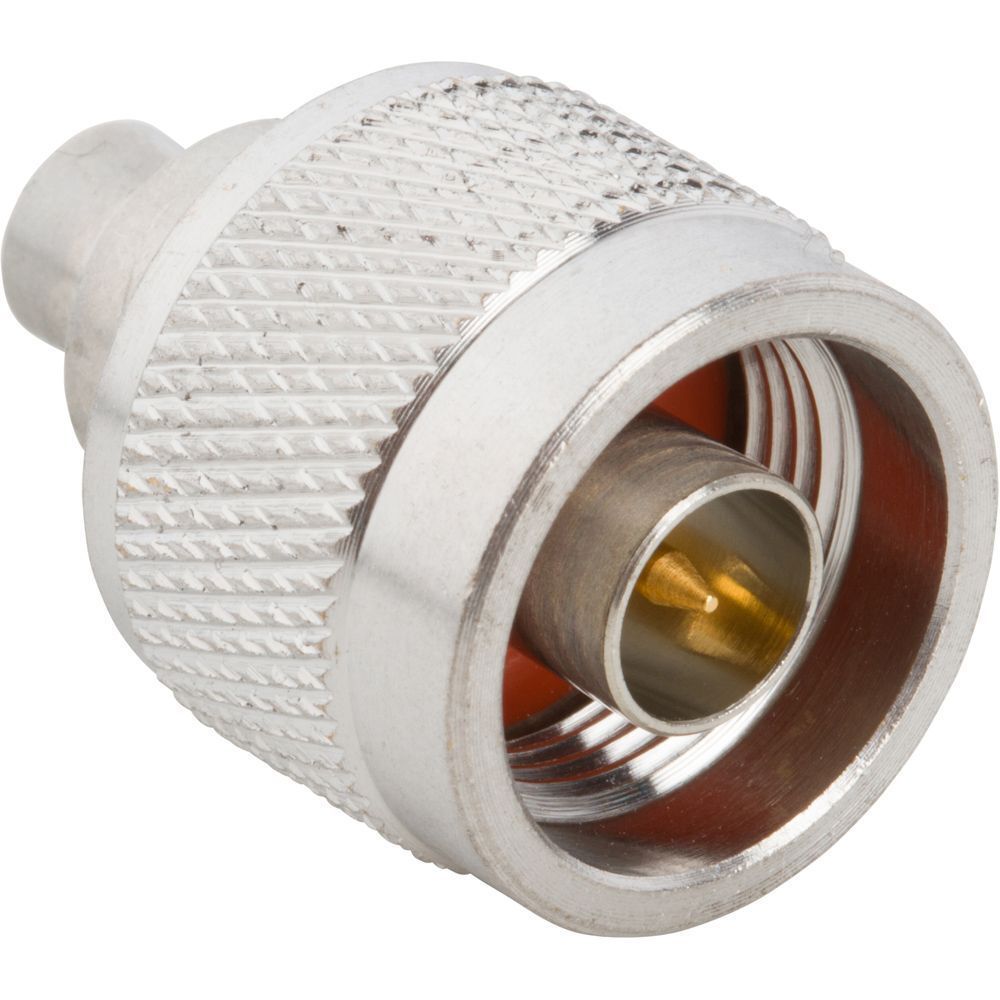

N 型端子
基于行业标准 N 型接口的坚固 50 Ω 射频终端，具有可靠的信号完整性和系统稳定性
概述
在 Amphenol RF，我们的 N-Type 端接器系列为设计人员和工程师提供了值得信赖的解决方案，用于正确端接使用 N-Type 螺纹连接器接口的射频系统中未使用的端口或电缆末端。
随着 N 型接口在广播、电信、仪器仪表和无线基础设施市场的广泛应用，安费诺射频 N 型端接器具有坚固的机械性能、高质量的射频一致性和全面的零件组合，适用于标准和扩展频率应用。在更广泛的 N 型连接器系列中，该连接器系列还具有从 DC 到 11 GHz（在扩展范围设计中高达 18 GHz）的性能。
特性和优势
- 行业标准 N 型接口确保与各种射频设备、电缆组件和基础设施兼容，简化了采购和集成。
- 50 Ω 阻抗（N 型系列的标准）符合大多数射频传输系统和终端要求，确保适当的失配控制和信号完整性。
- 螺纹耦合机制提供坚固、抗震的连接，适用于户外、移动和恶劣环境应用--这是 N 型连接器系列所继承的优点。
- 通过底层连接器系列提供的广泛频率支持，实现了适用于高频系统段的端接解决方案，包括一些高达 ~18 GHz 的扩展器件。
- 全面的零件组合包括插头和插孔版本、不同的额定功率以及链式或无链式选项，使您更容易为部署选择合适的端接。
主要技术细节
- 阻抗：标准 50 Ω（如 Amphenol RF 的 N 型端子产品页面所列：例如，零件 202109-10 为 50 Ω）。
- 频率范围：N 型连接器系列通常支持 DC - 11 GHz，在扩展范围设计中最高支持 DC - 18 GHz。对于终端器，性能取决于电缆和配置。
- 配接周期：N 型连接器系列在标准条件下至少可进行约 500 次配接循环。对于固定端子的使用，实际周期可能因环境和使用情况而异。
- 温度范围：连接器系列的典型工作温度范围约为 -65 °C 至 +165°C。特定端子的确切额定值取决于材料、表面处理和端子样式。
- 特殊功能：螺纹耦合、标准外形尺寸下的高密度性能、可提供扩展频率变体。注：除非在数据表中注明，否则安费诺 RF 的标准 N 型端子不会在产品列表中描述为密封或具体的 IP67 等级。
应用
- 基站和无线基础设施设备中未使用的射频端口（N 型接口是标准接口）的端接，确保信号路径完整性并最大限度地减少反射。
- 采用 N 型连接器的广播、电缆分配或仪器仪表系统，其中端接端口必须保持适当匹配并防止系统性能下降。
- 户外或坚固的机箱和机架系统，螺纹 N 型连接器可在环境压力下提供耐用的机械连接和端接性能。
- 需要稳定 50 Ω 端接以进行校准、测量和未使用端口隔离的测试和测量设备。
- 用于电信、雷达、卫星或 WLAN 系统的射频网络安装，工程师需要依赖值得信赖的供应商提供的标准外形端接解决方案。
了解安费诺射频全系列 N 型端子。如果您需要标准目录之外的定制额定功率、环境密封、替代配置或特殊阻抗值，请联系我们的工程团队，以获得量身定制的解决方案。
