组件
实现高性能系统的核心射频部件和互连器件。
概述

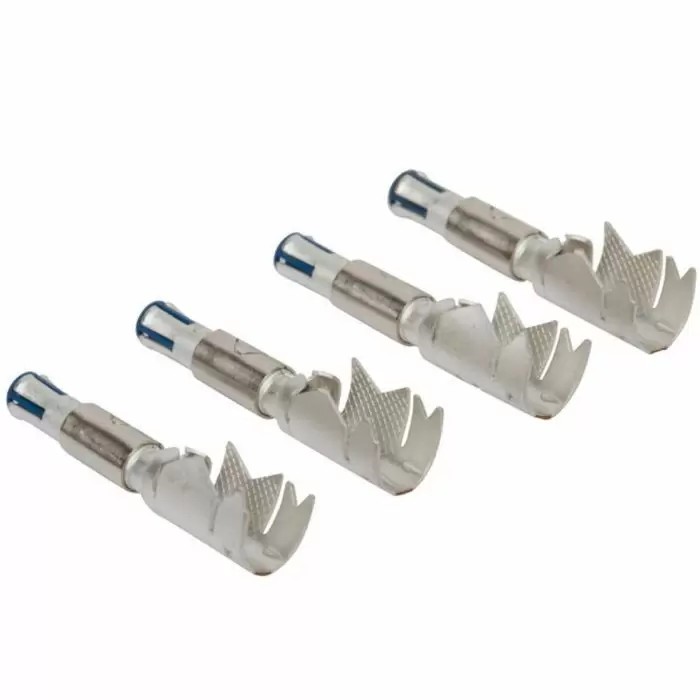

Amphenol RF 的元件组合包括丰富的连接器部件、接口模块、适配器、保护硬件和附件元件，它们构成了射频互连生态系统的支柱。无论您的系统需要坚固耐用的连接器引脚、电路板接口、转换器或保护硬件，我们的元件组合都能为您提供设计坚固耐用、高可靠性射频系统的构件。
我们的元件按照严格的质量、性能和兼容性标准制造，支持无缝集成到电缆组件、印刷电路板和外壳接口中。使用这些部件可简化各行业射频系统的定制、模块化和现场服务。
特点和优势
- 模块化灵活性- 将互连器件分解成离散的构件（引脚、插入件、适配器、外壳、保护硬件），使系统设计更加灵活
- 接口一致性- 零件经过精心设计，可与安费诺射频连接器、适配器和电缆组件正确配接
- 设计便利性- 库存零件可缩短交付周期、简化 BOM 并实现后期装配灵活性
- 性能完整性--零件设计用于在有效配置中使用时保持射频性能（低插入损耗、正确阻抗、受控 VSWR
- 环境鲁棒性--所选部件支持 IP 防护等级、耐腐蚀性和机械耐久性
- 简化维修- 部件便于维修、现场更换和返工，无需丢弃整个组件
主要技术细节
- 阻抗
大多数组件设计用于支持 50 Ω 系统（在需要时，特定配置可支持 75 Ω 系统） - 频率范围
典型支持范围与配接连接器的支持范围一致（实际性能受元件几何形状和互连过渡的限制） - 配接周期
因连接器接口和机械设计而异；许多部件在适当条件下的额定配接周期可达数百次 - 温度范围
许多 Amphenol 射频连接器兼容部件的常见温度范围为 -65 °C 至 +165 °C（实际限制取决于触点电镀、绝缘体和材料） - 特殊功能
耐腐蚀表面处理、EMI 屏蔽连续性、坚固的机械形式、模块化适应性
应用
安费诺射频产品组件支持各种市场和使用案例的设计，例如
- 无线基础设施（基站、小基站、DAS）
- 广播/视频系统
- 测试和测量仪器
- 航空航天、国防和航空电子设备
- 需要现场维修的坚固或任务关键型系统
- 需要模块化连接器构件的 OEM 模块
- 射频原型、模块化子系统和设计演进工作流程
要了解我们现有的标准组件部件，请浏览我们网站的组件部分。如果您面临特殊的接口挑战，或需要定制连接器插件、外壳或过渡模块，请联系我们的工程团队，帮助您设计量身定制的解决方案。
