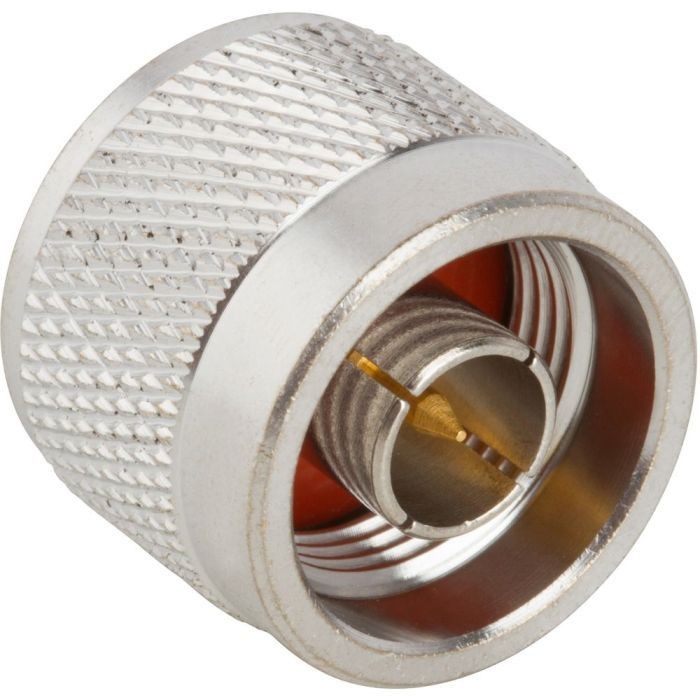

短接帽
在不使用时将未使用的连接器短路，从而提供可靠的射频终端保护。
概述
Amphenol RF 的短路帽设计用于保护空闲的射频连接器接口，在开口端提供受控短路，保持系统完整性并防止静电或杂散干扰。我们提供适用于所有行业标准连接器接口的串内和串间短路帽。
这些短路器帽是射频系统中必不可少的配件，可防止损坏、隔离端口并在连接器未接合时保持电气连续性。无论是用于实验室设置、现场仪器还是电信基础设施，短路帽都能提供一种无源解决方案，提高可靠性并降低连接器污染或中断的风险。
特点和优势
- 与主要射频类型的连接器兼容- 可用于 SMA、BNC、N 型和 APC-3.5。
- 增强的端口保护--有助于防止灰尘、湿气或碎屑进入未连接的连接器
- 电气隔离控制- 在端口空闲时提供受控的接地短路
- 坚固的机械设计- 采用耐腐蚀金属制造，表面经久耐用
- 固定选项- 许多型号包括链条、系绳或拴式安装，以降低在现场环境中丢失的风险
- 紧凑小巧- 占用空间极小，可轻松集成到密集的连接器面板中
主要技术细节
- 阻抗
短路器帽是无源保护装置，不带额定信号阻抗，但其设计不会对周围网络的阻抗环境产生不利影响。 - 频率范围
由于是保护性使用，频率通常不是限制因素，但其物理几何设计可最大限度地减少配接连接器工作射频频段内的干扰。 - 配接周期
虽然不是传统意义上的 "配接 "设备，但带有螺纹、卡扣或推入式固定功能的短路器帽在设计上可在适当条件下进行多次循环安装和拆卸。 - 温度范围
典型材料和结构支持 -65 °C 至 +165°C（取决于特定的电镀、绝缘体或垫圈材料）。 - 特点
用于 EMI 连续性的金属结构、链条或系绳、耐腐蚀电镀、拴式固定、保护盖几何形状
应用
短路器盖适用于各种射频系统和环境，在这些系统和环境中，未使用的连接器端口会带来风险。典型应用包括
- 端口可能暂时闲置的冗余或模块化系统
- 需要安全端接开放端口的测试台和实验室设置
- 运输或备用的现场就绪仪器和电信设备
- 确保存储或安装期间连接器的清洁度和完整性
- 实现射频前端系统的安全维护模式
- 作为高价值射频安装的保护配件包的一部分
请在我们网站的射频附件部分查看我们的短路帽产品系列。如果您的系统需要定制的短路几何形状、特殊的系留或不寻常的接口，请联系我们的工程团队，开发量身定制的短路帽解决方案。
