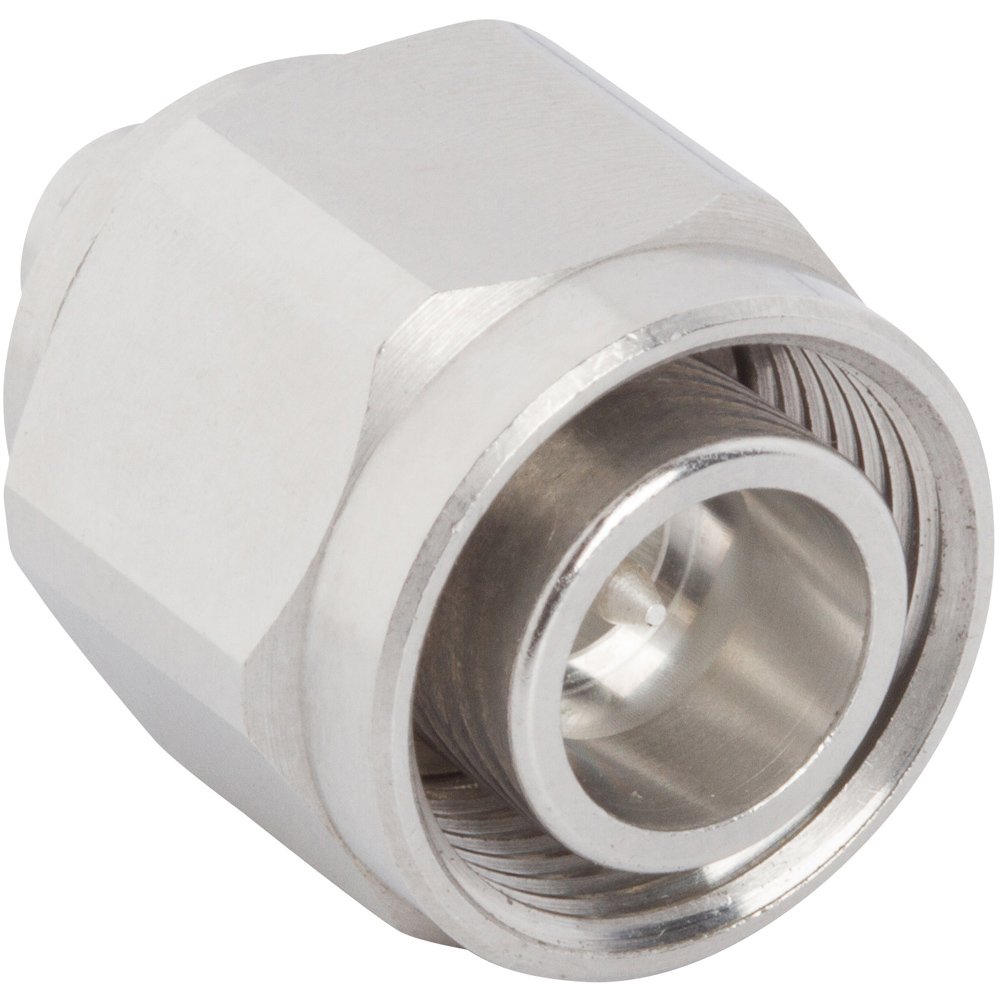

2.2-5 适配器
高密度 2.2-5 同轴适配器可在 N 型、4.3-10 和 7-16 接口上提供可靠、紧凑的射频信号转换。
概述
Amphenol RF 的 2.2-5 适配器可满足电信、广播和无线系统对小尺寸、高性能射频互连的需求。这些适配器采用系列内和系列间配置设计，支持 2.2-5 与 N 型、4.3-10 和 7-16 等常用接口之间的关键转换。这些适配器经过精密加工以保持信号完整性，是高密度射频面板设计和模块化设备的理想之选。
每个适配器都由坚固耐用的材料制成，其设计符合安费诺射频的高测试标准。所有产品都具有严格的驻波比、良好的电气连续性和机械弹性。无论您是安装基站机架、广播面板还是电信节点，我们的 2.2-5 适配器都能确保一致的连接器兼容性和信号性能（如适用），最高可达 20 GHz。
特点和优势
- 节省空间的设计- 比 4.3-10 适配器小 53%，可实现更紧凑的射频布局。
- 无缝兼容性- 系列内和系列间版本支持 N 型、4.3-10 和 7-16 转换。
- 高频性能- 适用于频率高达 6 GHz 的系统，根据所连接的连接器系列，许多适配器适用于频率高达 20 GHz 的系统。
- 坚固的结构- 带 PTFE 介电层的精密电镀主体确保了耐用性和电气保真度。
- 推拉式或螺纹耦合- 用于盲插和抗振应用的安全耦合。
应用
- 小型基站和分布式天线系统 (DAS)- 带有紧凑型连接器的密集射频面板组件。
- 电信基站- 2.2-5 和更大接口（如 N 型和 7-16）之间的精密转换。
- 广播和微波链路- 在空间有限的射频集线器中提供高性能路径。
- 测试与测量- 实验室环境中的连接器保护功能。
- 高密度 OEM 和基础设施- 用于 5G、微波和先进射频设备的坚固适配器。
