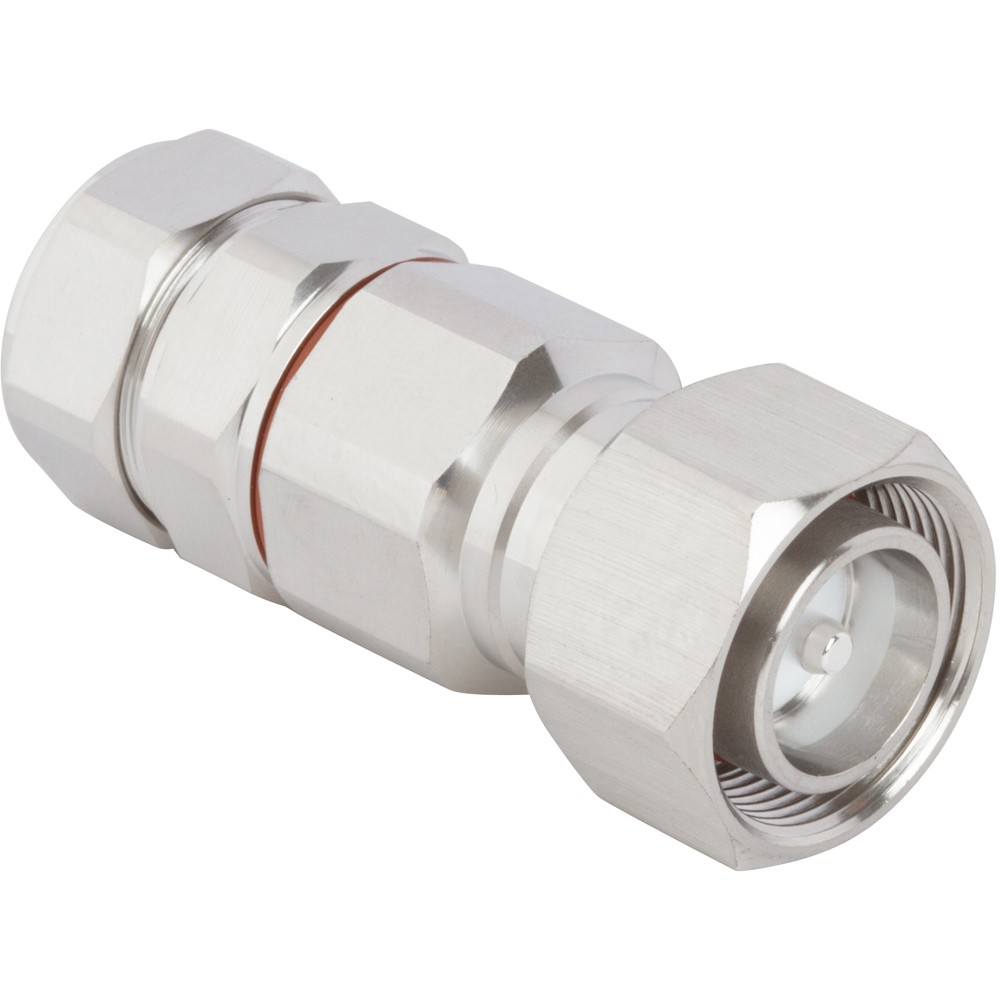

4.3-10 适配器
专为空间受限的无线和电信系统中的高性能连接而设计的紧凑型、低 PIM 射频适配器。
概述
Amphenol RF 的 4.3-10 适配器提供专为现代射频系统设计的尺寸经济型解决方案--提供串内和串间配置，在狭小空间内保持信号完整性。这些适配器非常适合 DAS、小蜂窝、基站和测试仪器应用，有助于节省面板空间，同时确保强大的性能。
每个适配器都采用精密焊接的机身和 PTFE 电介质，经过严格的质量控制，符合电气和机械基准。该系列针对低无源互调（低 PIM）、低回波损耗和紧凑外形进行了优化，可确保高达 6 GHz 的稳定运行，在某些情况下甚至可扩展至 12 GHz。
特性和优势
- 低 PIM 性能- 提供低互调失真，是高密度射频安装的理想选择。
- 扭矩小、重量轻- 结构紧凑，可降低扭矩要求，重量比 7/16 DIN 替代产品轻 60%。
- 多用途配置- 可提供插头/插孔格式，用于串内和串间转换，配备 N 型、SMA、7-16 和其他连接器。
- IP 防护等级- 部分型号具有 IP67 密封等级，可在户外或恶劣环境中使用。
- 坚固耐用的制造质量- 镀银触头、白铜机身和去耦机械/电气平面确保了性能的一致性。
应用
- 电信和 5G 基础设施- DAS、小蜂窝和基站中高密度面板安装的理想选择。
- 广播和微波系统 - 高达 12 GHz 的性能支持先进的视频和微波链路。
- 测试与测量- 连接器保护器和隔板型产品可保护仪器仪表和测试端口。
- 室外/坚固安装- IP 防护等级和轻型设计可在恶劣条件下进行现场部署。
- OEM 和工业射频面板- 紧凑型适配器支持模块化、空间受限的外壳设计。
