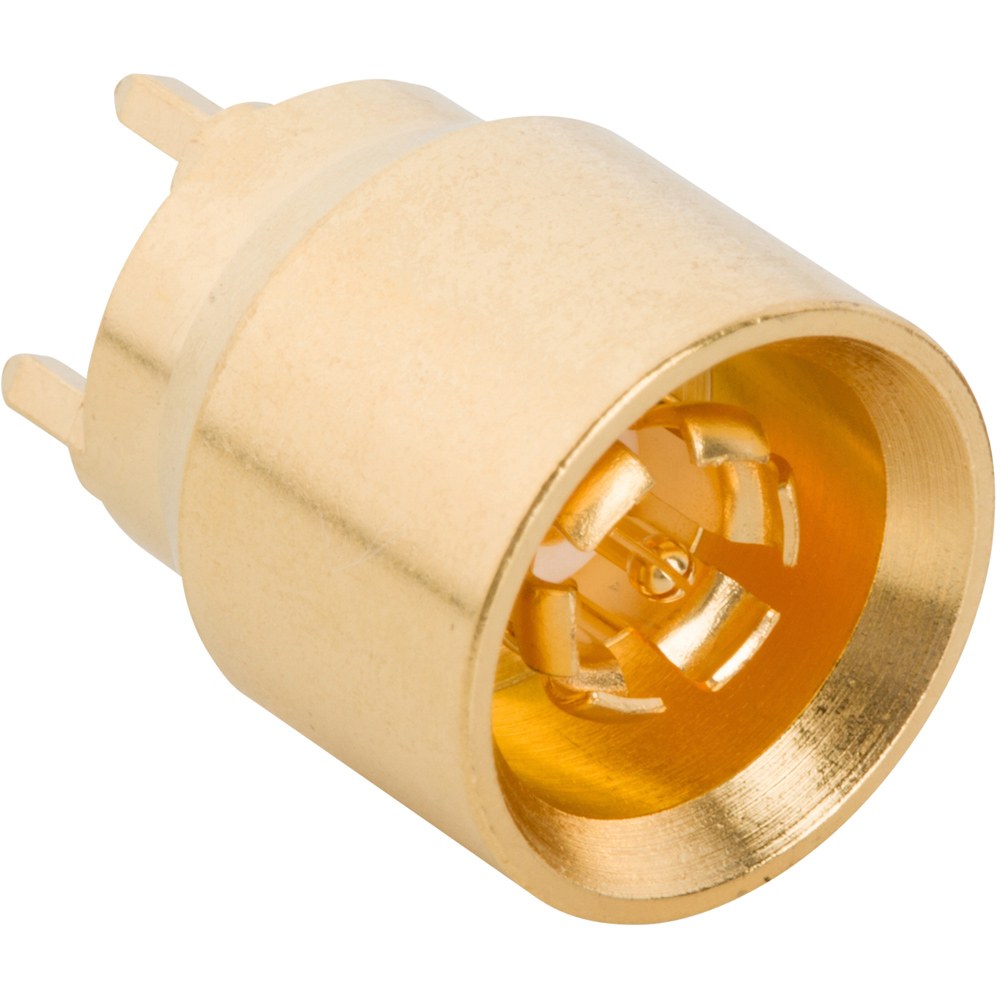

AFI 适配器
高浮动板对板 AFI 适配器专为军事、宽带和电信系统中的紧凑型盲插射频应用而设计。
概述
Amphenol RF 的 AFI 适配器为板对板和电缆对板射频应用提供精密设计的解决方案，在这些应用中，错位公差、可靠性和易用性至关重要。AFI 系列提供串内和串间配置，包括到 SMA 和 MCX 的转换，可确保信号完整性，并便于在密集的 PCB 环境中安装。
这些适配器采用专有的浮动子弹头接口，可补偿轴向和径向偏差，径向偏差可达 0.038″，轴向偏差可达 0.050″，可提供高达 6 GHz（50 Ω）和 3 GHz（75 Ω）的一致性能，具体取决于变体。AFI 适配器采用坚固耐用的电镀黄铜本体和 PTFE 介电材料，可满足军用、航空航天和宽带系统的耐用性要求。
特点和优点
- 高偏差浮动- ±0.38 mm 径向公差和 ±0.50 mm 轴向公差，简化盲插操作。
- 系列内和系列间灵活性- 包括 AFI-AFI 和 AFI-SMA、AFI-MCX 配置。
- 紧凑、坚固的设计- 扁平 SMD 插头和插座本体经过优化，适用于密集的 PCB 布局。
- 行业标准阻抗- 提供高达 6 GHz 的 50 Ω 版本；AFI-75 Ø 支持高达 3 GHz 的 75 Ω 系统。
- 防撞和盲配功能- 带护罩的子弹头接口可保护触头并简化配接。
应用
- 军事和航空航天- 具有振动和对准公差要求的盲配模块的理想选择。
- 宽带电信- 支持宽带路由器的板堆灵活性和可靠性。
- 电缆调制解调器和网络设备- 紧凑型 PCB 板对板和板对电缆链接的理想选择。
- 自动测试系统- 弹头设计实现了高循环测试夹具的简单可更换性。
- 小尺寸模块- 采用浮动互连的紧凑型布局，可满足封装公差要求。
