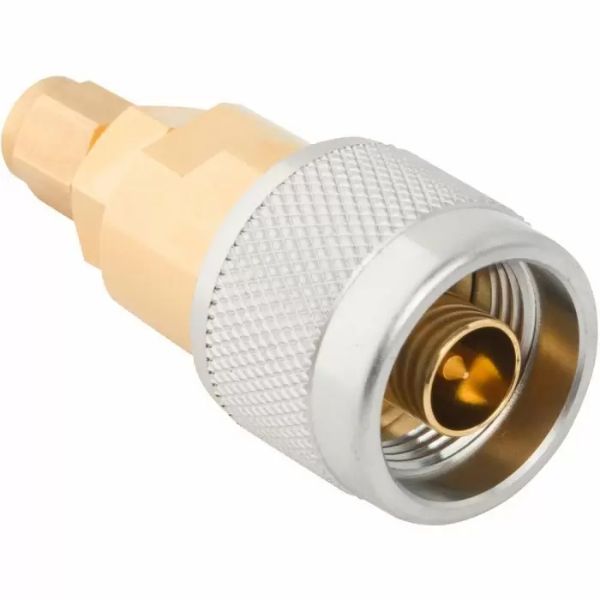

APC N 适配器
精密 50 Ω APC N 适配器可在 APC N 和其他射频接口之间实现无缝高频转换，并具有出色的信号保真度。
概述
Amphenol RF 的 APC N 适配器提供了一种高精度、无性别的解决方案，用于将 APC N 与同类接口和系列间接口（如 APC N、APC 3.5 和 N 型）互连。这些适配器支持直筒和隔板配置，确保在测试、电信和仪器设置中的灵活集成。
每个适配器都是为射频精度而设计，按照严格的公差进行加工和电镀，在 APC N 连接器的额定频率范围内提供卓越的性能。这些元件非常适合实验室仪器、微波测试系统以及需要可重复性和低插入损耗的模块化射频应用。
特性和优势
- 全面的接口覆盖范围- 包括 APC N-APC N 系列内以及 APC 3.5 和 N 型系列间适配器。
- 高频精度- 保持达到连接器频率限制（通常为 DC-11 GHz 或更高，取决于电缆）的射频性能。
- 隔板和套管选项- 直式和面板安装隔板样式，适用于机架和机柜应用。
- 镀金机加工结构- 提供坚固的物理连接、低驻波比和稳定的工作台性能。
- 性别转换器和连接器保护器- 适配器可在测试环境中用作性别转换器和连接器保护器。
应用
- 测试与测量- VNA、信号发生器和仪器仪表需要灵活的性别/节省。
- 微波通信系统- APC N-N 和 APC N-APC 3.5 适配器可保持微波通道的保真度。
- 电信与基础设施- 机架安装的隔板适配器可实现清洁的 ACS 面板互连。
- 航空航天与国防- 在要求可重复性的高密度测试或车辆系统中实现精密射频连接。
