HD-EFI 适配器
紧凑型 HD-EFI 适配器可在密集的板对板、板对线缆设计中提供精确的盲配 50 Ω 射频连接。
概述
.jpg)

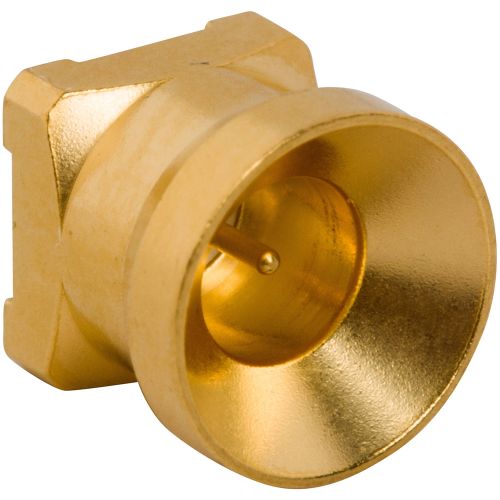

Amphenol RF 的 HD-EFI 适配器包括系列内 HD-EFI 桶和系列间转换器（如 HD-EFI 至 SMA），支持灵活的高密度射频集成。这些适配器以最小的 PCB 空间为目标进行了优化，适合狭小的板堆和夹层卡布局。
HD-EFI 接口是一种微小型三件式连接器，设计用于稳健的盲插和偏差补偿（±1.4 毫米轴向/径向浮动），可适应电路板公差变化而不影响信号完整性。额定 50 Ω 性能高达 6 GHz，适用于无线、航空电子设备、电信和国防设备中的高频设计。
特性和优势
- 高密度基底面- 紧凑型 PCB 堆叠和夹层配置的理想之选。
- 盲配能力- ±1.4 毫米径向和轴向浮动，带防碰撞弹头适配器，确保可靠配接。
- 多用途配置- 包括系列内镜筒和系列间 SMA 接口适配器。
- 稳定的信号质量- 采用小巧坚固的封装，在 6 GHz 范围内保持稳定的射频性能。
- 连接器保护器作用- 系列内适配器可保护板载配接表面和电缆连接器免受长期磨损。
应用
- 无线基站和电信- 采用高性能模块的紧凑型多线板对板射频路径。
- 军事与航空航天- 在坚固耐用的国防电子设备中使用盲插连接器。
- 宽带路由器和网络设备- 堆叠 PCB 设计中的高效射频互连。
- 测试与测量- 系列间 HD-EFI 至 SMA 适配器支持实验室级测试。
