微型 SMB 适配器

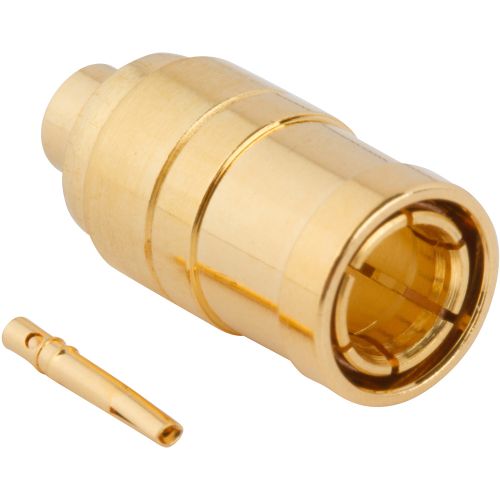

75 Ω 弹簧扣式 Mini-SMB 适配器专为高密度射频转换而设计，具有高达 2 GHz 的宽带能力。
概述
.jpg)
Amphenol RF 提供各种 Mini-SMB 适配器，包括系列内 Mini-SMB 至 Mini-SMB 桶和系列间转换（例如 Mini-SMB 至 SMB、BNC）。这些解决方案可在紧凑型射频组件中实现灵活的互连选项，轻松可靠地适配各种接口。
Mini-SMB 适配器针对密集的 PCB 布局和紧凑的电缆布线进行了优化，可保持 75 Ω 阻抗和高达 2 GHz 的宽带线性度。其卡扣式耦合可确保快速、免工具连接，是现场服务环境和模块化射频系统的理想之选。
特性和优点
- 紧凑型卡入式设计- 便于快速、免工具配接，节省布局空间。
- 宽带 75 Ω 性能- 针对 2 GHz 工作频率进行了优化，适用于广播和数据网络。
- 多用途配置- 包括系列内性别转换器和系列间适配器（如 SMB、BNC）。
- 结构紧凑，经久耐用- 500 次插配周期、宽温度容差、MIL 级性能，适用于恶劣环境。
- 连接器节省工具- 内联适配器可延长电缆和设备端口的使用寿命。
应用
- 广播和电缆网络- 支持高密度分配系统中的 75 Ω 信号路径。
- 电信和交换设备- 紧凑型模块化路由器和基站设计中的连接器。
- 测试与仪器仪表- 性别转换器和保护器有助于在实验室环境中保护端口。
- 汽车和物联网模块- 用于嵌入式设备的空间受限射频连接。
