微型超高频适配器
超紧凑型 3/8-24 螺纹适配器可提供高达 2.5 GHz 的稳健 50 Ω 射频连接，适用于空间受限的系统。
概述
.jpg)

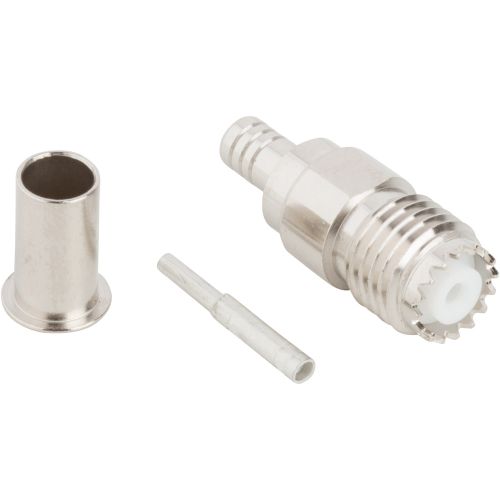

Amphenol RF 的 Mini-UHF 适配器专为紧凑型设备中的高密度射频互连而设计。这些适配器采用精密的 3/8-24 螺纹耦合，是移动无线电和工业模块等应用的理想抗震解决方案。它们有系列内和系列间两种型号，可与 SMA、TNC、UHF 和 FME 等标准实现无缝连接。
迷你超高频适配器的设计性能高达 2.5 GHz（取决于电缆），能保持稳定的 50 Ω 阻抗和可靠的信号质量。这些适配器采用耐用材料制造，并以 Amphenol RF 的制造标准为后盾，非常适合广播设备、测试仪器和车载射频电子设备。
特性和优点
- 3/8-24 螺纹耦合--安全、抗震连接
- 外形紧凑--适合狭小空间和高密度应用
- 多用途配置 - 支持串内和串间类型
- 可靠的 50 Ω 性能--高达 2.5 GHz 的精确射频接口
- 耐用设计--机械结构坚固，组件经久耐用
应用
- 公共安全- 用于应急车辆的无线电和通信系统。
- 车队管理- 支持运输网络中的 GPS 和遥测。
- 测试设备 - 在诊断过程中实现可靠的射频连接。
- 工业系统- 适用于制造和现场设备中的坚固射频连接。
