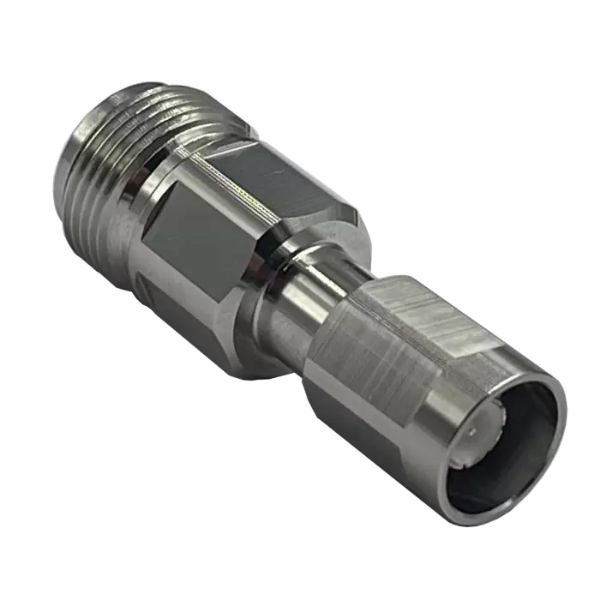

NEX10 适配器
结构紧凑的低 PIM 适配器，可在空间有限的高频无线基础设施环境中实现最佳性能。
概述
Amphenol RF 的 NEX10 适配器系列专为支持下一代小型基站和分布式天线系统 (DAS) 而设计。这些经过精密设计的互连器件非常适合要求低无源互调 (PIM)、坚固耐用的机械性能和高频率操作且占地面积小的应用。NEX10 接口的开发旨在满足不断发展的网络要求，同时保持与现有射频系统的兼容性。
这些适配器提供系列间和系列内配置，适合各种系统转换和升级。这些适配器由耐用材料制成，具有稳定的电气性能，并采用螺纹连接机制，即使在苛刻的环境中也能确保安全连接。
特点和优势
- 极低的 PIM 性能，可最大限度地减少密集无线系统中的信号失真
- 螺纹耦合增强了抗振性和配接安全性
- 提供系列内和系列间配置
- 专为兼容新一代无线基础设施组件而设计
应用
- 小型蜂窝网络- 在空间有限的电信设施中实现灵活互联
- 分布式天线系统 (DAS)- 在复杂的室内射频架构中保持信号完整性
- 5G 无线基础设施- 支持下一代移动网络中的高频应用
- 室外无线设备- 采用 IP67 选件，可承受各种环境因素的影响
相关资源
2.92 mm Adapter Series Datasheet
The datasheet provides an overview of Amphenol RF’s 2.92 mm adapters. These precision adapters operate up to 40 GHz and feature a rugged, threaded design for reliable performance. They are used in testing, communications, aerospace, and satellite applications and are available in 2.92 mm to 2.4 mm and 2.92 mm to SMA configurations.
FAKRA to SMA Adapter Datasheet
The FAKRA to SMA Adapter datasheet describes Amphenol RF’s FAKRA to SMA adapters, which connect FAKRA-based automotive systems to SMA RF devices using a push-on FAKRA and threaded SMA interface for secure, application-specific connections up to 4 GHz. The adapters feature rugged nickel-plated brass bodies, gold-plated contacts, PTFE insulation, and glass-filled nylon housing, providing excellent return loss, high mating durability (500+ cycles), and reliable performance from −65°C to +165°C in automotive, industrial automation, telecom, connected vehicle, and RF test applications.
Broadband Solutions Overview
The Broadband Solutions Overview presents a comprehensive look at the evolution of broadband technology, highlighting how advanced RF connectivity solutions are driving the future of high-speed internet access. From legacy DSL and coaxial systems to cutting-edge fiber optics, fixed wireless access (FWA), and satellite broadband, this document outlines the challenges and breakthroughs shaping modern digital infrastructure. It emphasizes Amphenol RF’s pivotal role in delivering robust, high-frequency, and custom RF components essential for seamless connectivity across diverse broadband platforms. Designed for engineers, integrators, and decision-makers, this overview is a definitive guide to the technologies and RF innovations enabling the next generation of global broadband connectivity.
Product Overview Brochure
Amphenol RF presents a comprehensive, high-performance portfolio of RF interconnect solutions, engineered to meet the rigorous demands of modern communications and electronic systems across industries. With decades of leadership in coaxial technology, this catalog showcases cutting-edge product lines, each designed for precision, reliability, and adaptability.
2003 Full Line Product Catalog
The Amphenol 2003 Full Line Catalog features a comprehensive range of connectors, including subminiature (MMCX, MCX, 1.0/2.3, SMB, SMC, SMA), miniature (BNC, TNC, Reverse Polarity), and standard types (Twinaxial, Twin BNC, Triax, UHF, Mini-UHF). Each section provides detailed specifications, available configurations, and applications for various industries, such as telecommunications, instrumentation, military, and industrial use. The catalog also includes cable assembly instructions and a glossary for additional support.
2006 Full Line Product Catalog
The Amphenol 2006 Full Line Catalog includes a comprehensive range of connectors and cable assemblies for various applications. The catalog also covers environmental compliance and quality assurance measures, showcasing Amphenol's commitment to reliable and high-performance interconnect solutions.
Connex Product Catalog
The Amphenol Connex Catalog features a comprehensive range of high-quality RF and microwave coaxial connectors, suitable for various applications including instrumentation, military-aerospace, broadband, RFID, and telecommunications. It offers a wide selection of connectors such as MMCX, MCX, SMA, SMB, BNC, TNC, UHF, and 7/16, along with custom cable assemblies and robust technical support.
2.2-5 Connector Series
The Amphenol RF 2.2-5 Product Data Sheet highlights the 2.2-5 connector series, designed for high-performance RF applications requiring compact size, low PIM, and superior electrical performance. This connector series is engineered to support high-frequency, low-loss signal transmission, making it ideal for 5G networks, small cells, and distributed antenna systems (DAS). With a rugged, weatherproof design, these connectors ensure reliable performance in harsh environments while maintaining ease of installation through various coupling mechanisms, including threaded, push-pull, and hand-screw options.
4.3-10 Adapters
Amphenol RF introduces a comprehensive line of 4.3/10 low PIM adapters, expanding their low PIM adapter product family. These adapters are designed for space-restricted, high-density, and weight-sensitive applications, offering superior PIM performance and reduced mating torque compared to 7/16 DIN connectors, with in-series and between-series configurations available.
AMC Connector Series
Amphenol Micro Coaxial (AMC) connectors are low-profile solutions with a 2.5mm mating height and a 3mm x 3mm footprint, designed for portable and mobile devices. These connectors support high-frequency transmission from DC to 6 GHz, feature easy snap-on/off mating, and are compatible with Hirose U.FL and IPEX MHF1 series, making them ideal for applications like antennas, Bluetooth, GPS, WLAN, and cellular devices.
PSMP Connector Series
The Amphenol RF PSMP Cut Sheet highlights the PSMP connector series, a versatile RF solution engineered for high-power applications requiring robust performance and flexibility. This series is designed to handle high-frequency signals with excellent electrical performance, making it ideal for base stations, power amplifiers, and industrial applications. The PSMP connectors feature a compact, high-reliability design with options for smooth bore and full detent mating styles, ensuring secure connections while accommodating misalignment.
AMMC Connector Series
Amphenol Micro Miniature Coaxial (AMMC) connectors are designed for portable and mobile devices, featuring a low profile with a 1.4 mm mated height and a 2 mm x 2 mm footprint. These connectors support high-frequency transmission from DC to 6 GHz, offer easy snap-on/off mating, and are compatible with Hirose W.FL and IPEX MHF III series, making them ideal for applications such as antennas, Bluetooth, GPS, WLAN, and cellular devices.
HD-EFI Connector Series
The HD-EFI product series by Amphenol RF offers micro-miniature interfaces designed for high-performance applications with a frequency range from DC to 6 GHz. These 50 ohm products are ideal for board-to-board applications, featuring versatile PCB mounts and bullet lengths, and providing up to 1.4 mm axial and radial float. HD-EFI connectors are available in various configurations, including through-hole, surface mount, edge launch, and thread-in, and support blind mating with crash-proof designs.
SMA Quick Connect Adapter Series
The Amphenol RF SMA Quick Connect Adapter Cut Sheet highlights a high-performance, rapid-mating SMA adapter designed for efficiency and reliability in RF testing and system integration. This adapter enables quick, secure connections without the need for threading, significantly reducing installation time and improving workflow efficiency. Engineered for low-loss signal transmission and durability, it is ideal for laboratory testing, production environments, and high-frequency applications.
Adapter Matrix
The Amphenol Connex Adapter Matrix Brochure provides a wide selection of high-quality, low-cost RF connectors and adapters suitable for various applications, including instrumentation, military-aerospace, broadband, RFID, and telecommunications. The brochure details available configurations for popular connectors like MMCX, MCX, SMA, SMB, SMC, Mini-UHF, F, BNC, TNC, UHF, and N, along with standard and reverse polarity/threaded options.
White Paper: Passive Intermodulation Distortion
The document "Passive Intermodulation Distortion in Connectors, Cable and Cable Assemblies" by David Weinstein of Amphenol Corporation discusses the causes, impacts, and measurement of Passive Intermodulation Distortion (PIM) in RF components. It explains how PIM is generated by non-linear mixing in passive devices like connectors and cables, causing unwanted signals that can interfere with communication systems. The paper outlines design guidelines to minimize PIM, including contact design, material choices and cleanliness, and describes testing methods to ensure low PIM performance.
5G Wireless Solutions
The Amphenol RF 5G Wireless Solutions document presents Amphenol’s advanced RF interconnect solutions tailored for next-generation 5G networks. It highlights a comprehensive portfolio of high-performance connectors, adapters, and cable assemblies designed to support the high-frequency, low-latency, and high-data-rate demands of 5G infrastructure. The document emphasizes low PIM performance, robust durability, and compact designs, ensuring reliable connectivity in macro cell sites, small cells, distributed antenna systems (DAS), and massive MIMO applications.
QMA Adapter Product Series
Amphenol RF's QMA Adapter Series features quick-locking in-series and between-series adapters with a snap-on interface, offering fast and flexible installation by allowing 360° rotation after connection. These adapters support frequencies up to 18 GHz and are ideal for applications such as antennas, base stations, 5G wireless infrastructure, amplifiers, and test and measurement equipment.
High Performance SMA Adapter Series
The Amphenol RF High Performance SMA Adapter series offers low-profile, cost-saving adapters with improved VSWR performance, operating up to 22 GHz. These adapters, featuring gold-plated brass bodies and beryllium copper contacts, are ideal for applications in SATCOM, radar, antennas, and wireless testing.
2.92 mm Connector Series
Amphenol RF's 2.92 mm connector series is designed for high-frequency applications up to 40 GHz, offering low VSWR, excellent return and insertion loss, and rugged construction for repeatability. These connectors, compatible with SMA and 3.5 mm interfaces, are ideal for optical testing, lab and bench testing, military, SATCOM, microwave, and quantum computing applications, meeting the MIL-STD-348 standard.
Nex10 Adapter Series
Amphenol RF's Nex10 Adapter Series features ruggedized, compact 50 ohm adapters offering reliable low PIM performance up to 6 GHz. These lightweight, threaded adapters are ideal for high-density applications such as antennas, small cells, distributed antenna systems (DAS), MIMO, and 5G/LTE, designed to reduce interference and maintain network quality.
FPC and PCB Internal Antennas
Amphenol RF's Internal FPC and PCB RF Antennas are designed for IoT, Wi-Fi, and LTE applications, featuring dual-band, multi-band, and wide-band options with secure adhesive mounting for easy installation. These low-profile antennas offer reliable RF performance and are ideal for use in compact devices such as smart speakers, tablets, security cameras, and navigation systems.
Antenna Solutions for Wireless Applications
The Amphenol RF Antenna Solutions Overview provides an in-depth look at a wide range of high-performance antennas designed for wireless applications. It highlights key features, including compact designs, high-frequency capabilities, and compatibility with various RF interconnect solutions for seamless connectivity across industries.
