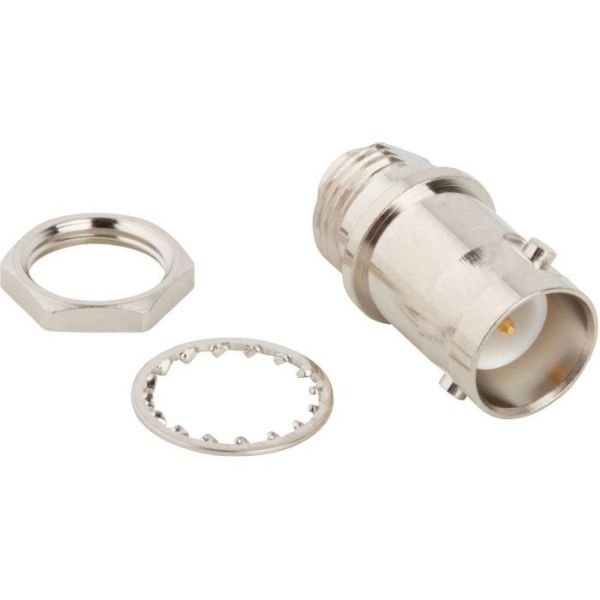

RP-BNC 适配器
反极性 BNC 互连器件专为确保无线和天线应用中的信号完整性而设计
概述
Amphenol RF 的 RP-BNC 适配器具有与传统 BNC 接口相同的值得信赖的性能，但具有反极性配置，非常适合需要安全连接和内置防错接保护的无线和天线应用。这些卡口耦合适配器结构紧凑，可确保在室内和室外环境中快速安装和可靠的电气性能。
RP-BNC 适配器支持反极性 BNC 连接器和其他接口之间的轻松转换，因此在测试环境、实验室设置和无线基础设施中非常有用。RP-BNC 适配器提供各种串内和串间配置，可在重复连接时保持出色的信号完整性。
特点和优点
- 反极性设计可防止意外错接
- 快速连接卡口接头，安装快捷安全
- 支持多种系列间和系列内连接
- 经过精心设计，可在重复配接过程中提供可靠的电气性能
应用
- 无线基础设施- 用于需要安全反极性连接的基站和中继器。
- 天线系统- 为 Wi-Fi、WLAN 和其他无线通信提供可靠的接口。
- 测试和测量- 使用 RP 接口进行实验室测试和射频性能验证的理想选择。
- 广播设备- 在需要 RP 配置的广播和制作设置中支持信号路由。
