RP-SMB 适配器
多功能反极性解决方案，专为紧凑型射频应用中的快速连接/断开而设计。
概述
.jpg)

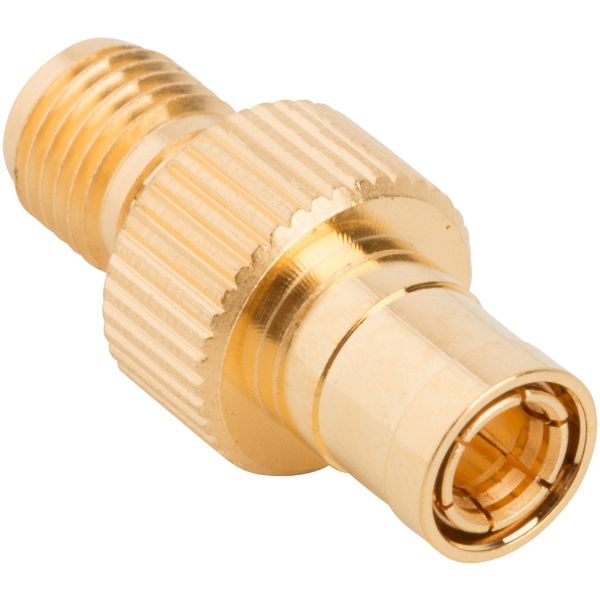

Amphenol RF 的 RP-SMB 适配器为需要在有限空间环境中进行安全、高频信号传输的应用提供了强大的互连选择。这些适配器采用卡入式耦合机制，可在不影响机械稳定性或电气性能的情况下快速安装和拆卸。
反极性 SMB 适配器可在电信和无线系统等动态环境中保持稳定的性能。其紧凑的尺寸和可靠的设计使其成为对空间和信号完整性要求极高的开发和生产环境的理想选择。
特点和优点
- 卡入式接口可实现快速配接和拆卸
- 外形紧凑，是空间受限应用的理想选择
- 优异的电气性能，频率可达 4 GHz
- 设计经久耐用，可实现多次插配
应用
- 电信设备- 网络硬件中的安全信号传输。
- 测试和测量系统- 实验室环境中快速、可重复的连接。
- 无线基础设施- 基站和中继器中的紧凑型射频互连。
- 消费电子产品- 嵌入式无线设备中可靠的射频性能。
