RP-TNC 适配器
反极性互连器件专为无线和天线系统中安全的螺纹射频连接而设计
概述
.jpg)

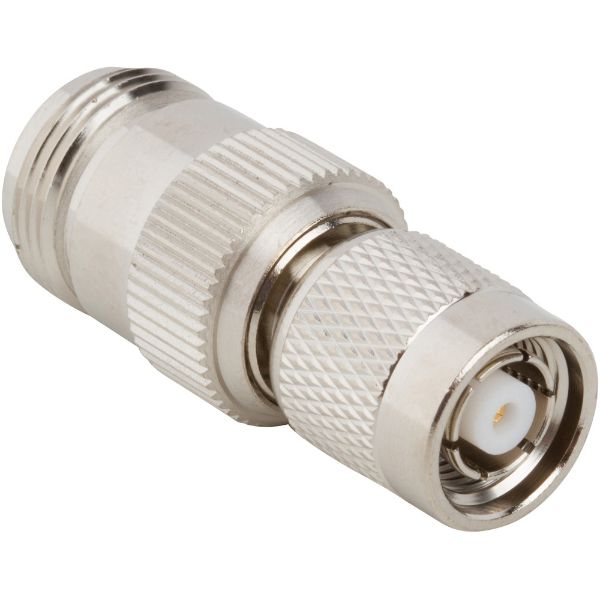

Amphenol RF 的 RP-TNC 适配器旨在为需要反极性 TNC 接口的应用提供可靠的连接解决方案。这些适配器可保持安全的螺纹耦合，即使在振动或操作剧烈的环境中也能确保稳定的电气和机械性能。
RP-TNC 适配器专为支持无线基础设施、测试环境和嵌入式天线应用中的多功能射频连接而设计，具有卓越的信号完整性。精密加工的结构和行业标准配置使其能够无缝集成到需要特定极性兼容性的现有系统中。
特点和优势
- 安全的螺纹耦合支持在恶劣环境中实现稳定的性能
- 反极性接口可确保安全、有意的连接对齐
- 提供系列间和系列内配置
- 结构坚固耐用，适合频繁配接
应用
- 无线网络- 实现天线和路由器的安全高频连接
- 工业射频系统- 可承受振动和恶劣的环境条件
- 测试和测量- 用于射频仪器和诊断的可靠接口
- 天线馈线 - 支持嵌入式或外置天线的灵活安装
