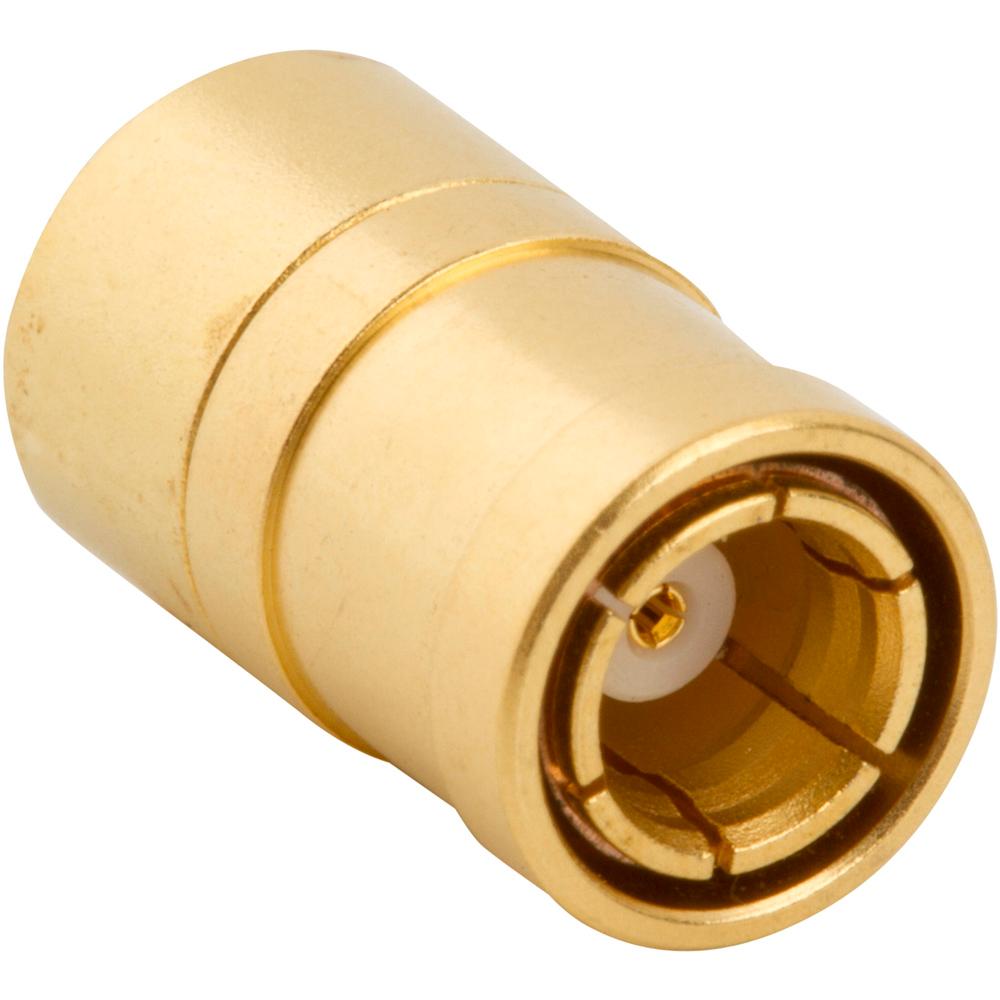

SMB 适配器
专为高频应用中的快速连接/断开功能而设计的紧凑型射频互连器件。
概述
Amphenol RF 的 SMB 适配器为需要在紧凑尺寸内具有强大电气性能的卡入式耦合机制的应用提供了多功能解决方案。这些适配器是射频和无线系统中常用的可靠产品系列的一部分，在这些系统中，易用性、快速配接和一致的信号完整性至关重要。
SMB 接口非常适合需要频繁接合和断开的应用，因此非常适合仪器仪表、GPS 设备和电信基础设施。Amphenol RF 提供各种系列内和系列间 SMB 适配器配置，所有产品都能确保卓越的耐用性和射频性能。
特点和优点
- 卡入式连接，无需工具即可快速配接和拆卸
- 体积小巧，是高密度 PCB 和模块设计的理想选择
- 多种系列内和系列间配置
- 优异的电气性能，频率可达 4 GHz
应用
- 仪器仪表- 用于需要紧凑、可靠连接的测试装置。
- GPS 设备- 支持要求信号性能稳定的紧凑型设计。
- 无线模块- 为射频电路板提供高频连接。
- 电信基础设施- 交换和路由系统中的可靠信号传输
