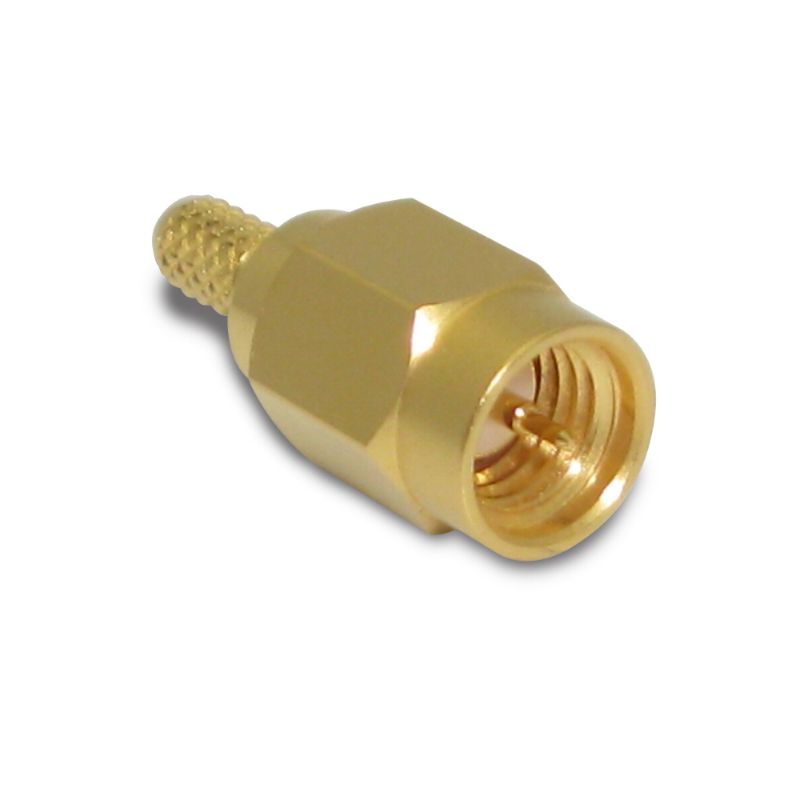

SSMA 适配器
精密匹配的互连器件是紧凑型设计中高频应用的理想选择。
概述
Amphenol RF 的 SSMA 适配器专为空间有限、精度要求高的应用提供高性能射频互连解决方案。这些适配器具有坚固的机械稳定性和出色的电气特性，非常适合需要高频信号完整性和安全螺纹耦合的应用。
SSMA 适配器采用基于 SMA 接口的紧凑型设计，在不影响耐用性的前提下提供更小的配接尺寸。它们适用于测试和测量环境、航空航天和国防系统，以及其他以小型化和频率性能为关键因素的重要射频应用。
特点和优势
- 外形紧凑，适用于空间有限的系统
- 螺纹耦合机制确保安全、抗震的连接
- 在高频范围内具有出色的电气性能
- 提供各种串内和串间配置
应用
- 测试和测量设备- 确保高频测试系统的精确信号性能。
- 军事和航空航天系统- 支持关键任务、空间受限环境中的射频链路。
- 微波通信- 促进微波频率下稳定、低损耗的互连。
- 高速数字系统- 用于需要紧凑型射频连接的先进系统。
所有 SSMA 适配器类别
