双同轴适配器
为低频应用中的平衡信号传输提供可靠、高性能的解决方案。
概述
.jpg)

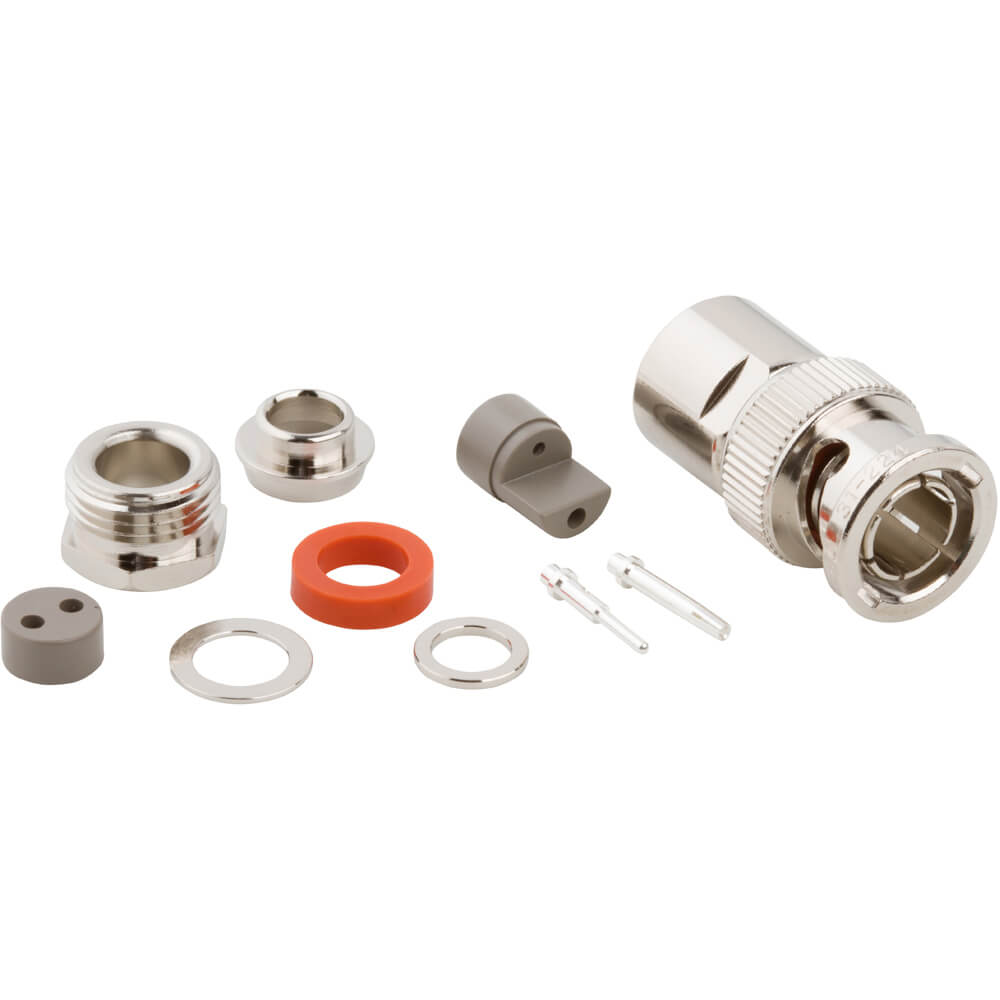

Amphenol RF 提供广泛的 Twinax 适配器产品组合，专为支持双导体系统的平衡信号完整性而设计。这些互连器件具有稳定的电气性能和机械可靠性，适用于需要控制阻抗和抗噪声的应用。
Twinax 适配器有多种配置，包括串内和串间设计，以及插头和插孔接口。这些适配器可确保无缝集成到专用射频和数据系统中，特别是在需要低频、噪声敏感信号的场合。
特点和优势
- 支持低频系统中的平衡信号传输
- 提供串内和串间配置
- 专为双导体互连架构设计
- 可靠的机械稳定性和安全配接
应用
- MIL-STD-1553 数据总线系统- 支持传统的航空航天和国防数字通信。
- 航空电子设备通信- 在机载系统中保持平衡、抗噪信号。
- 地面支持设备- 确保关键任务诊断中的可靠数据传输。
- 测试仪器- 为平衡信号测试环境提供稳定的接口。
