射频衰减器
受控信号减弱，以保护、校准和优化射频系统
射频衰减器
Amphenol RF 的射频衰减器可提供可靠、精确的信号衰减，帮助工程师防止设备过载、校准测试设置以及管理复杂射频系统的信号电平。这些衰减器以常用的 SMA 和 N 型接口提供固定衰减，支持从实验室仪器到电信和无线部署的各种应用。

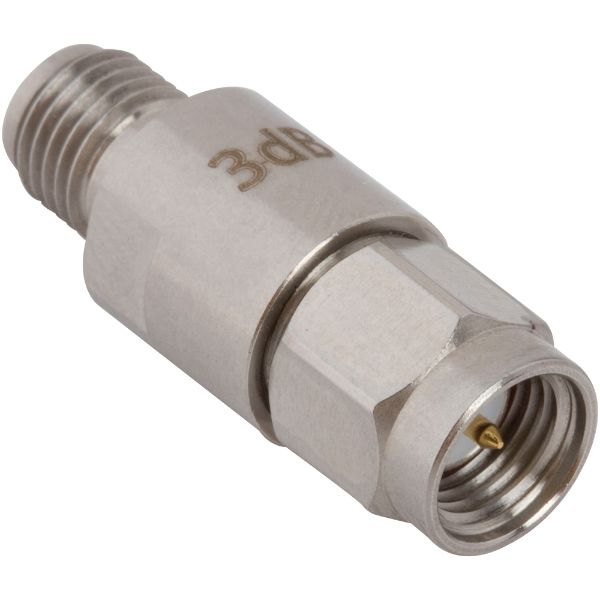

我们的衰减器采用 SMA 和 N 型接口，衰减范围从 1 dB 到 10 dB，额定功率为 2 W，具有一致的插入损耗、低驻波比和长期可靠性。无论是微调测试台还是平衡射频网络的功率，这些耐用且易于安装的元件都能支持更清洁、更安全的系统性能。
特点和优势
- 固定衰减精度：可从标准 dB 值（1、2、3、4、5、6、8、9、10）中选择，实现一致的信号衰减。
- 机械耐用性：机加工外壳和电镀表面处理可经受实验室和现场的反复使用。
- 连接器标准化：SMA 和 N 型接口可确保与现有系统广泛兼容。
- 保持信号完整性：低驻波比可防止反射，保持波形的保真度。
- 功率处理：额定连续工作射频功率高达 2 W。
主要技术细节
- 阻抗50 Ω（射频系统标准）。
- 连接器类型：SMA、N 型（均有固定 dB 值）。
- 衰减范围：固定值从 1 dB 到 10 dB（SMA 和 N 型型号）
- 典型频率性能： SMA 高达 ~18 GHz；N 型高达 ~11 GHz（取决于连接器；电缆可能会影响范围）。
- 额定功率：连续 2 W。
- 结构螺纹 SMA/N 型连接器；耐用金属外壳；标准驻波比规格。
应用
- 测试和测量- 在分析仪和测试夹具中实现精确的信号衰减。
- 设备保护- 防止敏感射频元件饱和或损坏。
- 系统调谐- 平衡分布式系统的信号电平。
- 原型设计和开发- 在射频设计中提供灵活的信号调节。
- 天线和链路测试- 模拟路径损耗并测试接收器阈值。
浏览我们的标准 SMA 和 N 型射频衰减器，找到您需要的精确衰减值。如需定制额定功率、阻抗要求或坚固耐用的解决方案，请联系我们，讨论为您的特定应用量身定制的工程选项。
规格
| 参数 | 值/范围 |
| 阻抗 | 50 Ω（射频系统标准） |
| 频率范围 | SMA：DC-18 GHz；N 型：直流-11 千兆赫（取决于连接器；性能因电缆而异） |
| 配接周期 | SMA 和 N 型：~500 次（在不同系列组件中可能有所不同） |
| 温度范围 | 典型值为 -40 °C 至 +85 °C（因连接器和电缆类型而异） |
| 特殊功能 | 标准固定分贝值；耐用金属外壳；低驻波比；紧凑坚固的设计 |
