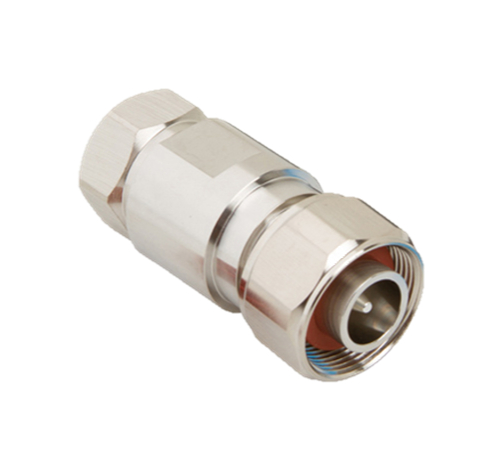

4.1-9.5 连接器
为电信和广播系统提供防水可靠性的紧凑型高功率射频连接器
概述
Amphenol RF 的 4.1-9.5 连接器采用紧凑、坚固的设计，提供高功率 50 Ω 接口。这些连接器是电信、广播和蜂窝基础设施的理想之选，可支持频繁配接，并能在空间受限的设置中处理较高的射频功率级别。它们采用 IP67 级密封和拉推耦合，即使在恶劣的环境中也能提供可靠的性能。
4.1-9.5 连接器的尺寸介于 4.3-10 和 7-16 标准之间，最多可节省 60% 的空间。它们的推拉连接无需工具即可快速组装，同时保持机械和电气性能。这些连接器专为要求苛刻的部署而设计，可轻松构建耐用的高密度射频网络。
特点和优势
- 外形小巧- 比 4.3-10 和 7-16 更小，是紧凑型安装的理想选择
- 高功率能力- 为电信基础设施提供强大的射频功率
- IP67 密封- 配接时防水，适用于室外和室内应用
- 快速推拉耦合- 便于快速安装和维护
- 耐用设计- 采用精密加工的航海级材料，使用寿命长
主要技术细节
- 50 Ω 阻抗，针对大功率射频传输进行了优化
- 支持高达 ~7.25 GHz 的射频频率（取决于电缆）
- 带锁定功能的推拉耦合确保可靠的配接
- 配接时达到 IP67 防护等级，确保环境防护
- 与 RG-11、LMR-900 和类似的 ½″ 直径低损耗电缆兼容
应用
- 蜂窝基站和 DAS- 用于紧凑型天线系统的坚固连接器
- 广播传输线- 中继站的高功率、防水射频链路
- 户外外壳- IP67 密封，防潮防尘
- 射频系统测试环境- 推挽式耦合有助于快速系统设置
- 基础设施升级- 易于配接的连接器适合密集的机架安装设备
浏览我们完整的 4.1-9.5 连接器产品系列，包括电缆安装插头和面板插孔。如果您需要定制电缆组件、阻抗适配或独特的安装类型，请立即联系我们，获取工程解决方案。
Specifications
4.1-9.5 Connectors
Electrical
| Impedance | 50 Ohm |
| Frequency Range | DC - 14 GHz |
| Voltage Rating | 1400 Volts RMS Continuous |
| Dielectric Withstanding Voltage | 2500 VRMS Min |
| VSWR (Return Loss) | |
|
Straight DC - 0.5 GHz |
1.065 (-30 dB) Max |
|
Straight 0.5 - 4 GHz |
1.15 (-23 dB) Max |
|
Straight 4 - 10 GHz |
1.22 (-20 dB) Max |
| Insulation Resistance | 5000 MΩ Min |
| Center Contact Resistance | 1 mΩ Max |
| Outer Contact Resistance | 0.1 mΩ Max |
| RF Leakage | -128 dB Max (DC-1 GHz) |
| Insertion Loss | 0.05 √(f(GHz)) dB Max |
| Passive Intermodulation (PIM) | -160 dBc |
| Power Handling | 450 W @ 2 GHz @ 90 ºC |
Environmental
| Temperature Range | −40°C to +85°C |
| Thermal Shock
|
IEC 60068-2-14-NA
|
| Corrosion
|
MIL-STD-202, Method 101 (Test Condition B)
|
| Vibration
|
IEC 60068-2-6-FC
|
| Mechanical Shock
|
IEC 60068-2-27
|
| Moisture Resistance
|
IEC 60068 40/ 085/ 21
|
Mechanical
| Mating Cycles | 500 Min |
| Coupling Mechanism | Threaded
|
| Interface Specification | IEC 60169-11, DIN 47231
|
| Engagement Force
|
15 N (3.37 lb) Typ
|
| Disengagement Force
|
10 N (2.25 lb) Typ
|
| Mating Torque, Min Working
|
10 -12 N-m (88-106 in-lbs)
|
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
