同轴插入式连接器
用于模块化电缆到 PCB 系统配置的紧凑型同轴接口
概述

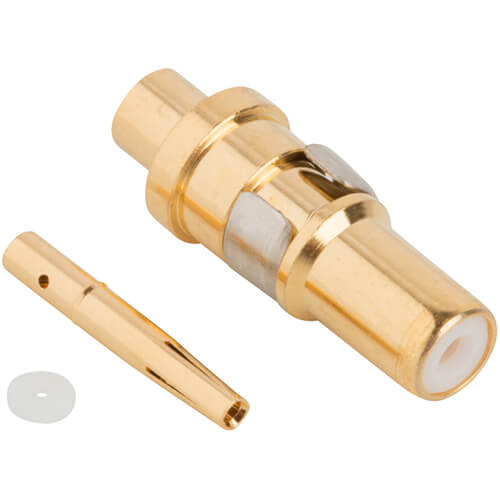

Amphenol RF 的同轴插入式连接器是经过精密设计的元件，可实现从电缆到 PCB 或子组件模块的可靠信号传输。这些插入式连接器有插头和插座两种型号，支持各种 50 Ω 电缆类型，包括 RG-58、RG-174、RG-316、RG-405 和可适配微同轴电缆，可在空间受限的设计中实现多功能集成，同时不影响射频完整性。它们具有坚固的机械和电气特性，可确保在各种应用中实现强接触、低损耗和一致的性能。
同轴插件是高频率和高可靠性环境的理想选择，可简化定制电缆组装和模块化子系统设计。这些插入件为包覆成型端子提供了一种具有成本效益的替代方案，使工程师能够优化信号路径，同时保持干净、标准化的连接接口。
特点和优势
- 广泛的电缆兼容性：支持标准 RG 和特种微同轴电缆
- 可插入格式：以一致的机械配合插入模块或 PCB
- 精确的阻抗匹配：保持整个接口的 50 Ω 信号完整性
- 耐用结构：机加工插入件，镀金触点耐磨损
- 灵活的配接配置：多种插头/插孔选择，适合一揽子系统设计
主要技术细节
- 电缆类型RG-58、RG-174、RG-316、RG-405、保形微同轴电缆（例如 0.047 英寸、0.086 英寸）
- 终端选项：直压接、焊接，可用于不同类型的电缆
- 插入几何形状：专为 PCB/子系统组件中的狭小模腔而设计
- 触点设计：针对低损耗和可靠的回波损耗性能进行了优化
- 部署就绪：是定制电缆线束或工厂安装模块单元的理想选择
应用
- 无线测试和测量- 测试机架中的直通连接面板
- 嵌入式射频模块- 模块化板对板或电缆对板射频接口
- 汽车和航空电子组件- 传感器和天线线束中的紧凑型射频插入件
- 网络和广播子模块- 带同轴端口的现场可维修射频模块
- 定制电缆束- 使用标准化射频端组装工厂就绪的电缆束
浏览我们为您的电缆类型和装配环境量身定制的同轴插入插头和插座。如需定制电缆组装、独特的模块集成或专用连接器设计，请联系我们的应用工程团队，为您的项目找到最佳解决方案。
