FME 连接器
用于移动和天线系统的紧凑型 50 Ω 螺纹同轴连接器
概述
Amphenol RF 的 FME 连接器系列以微型外形提供可靠的射频性能，支持从直流到 200 MHz 的频率。这些连接器专为移动设备和天线组件而设计，针对 RG-58 同轴电缆进行了优化，并通过压接端接实现简易装配。FME 连接器具有 UHF、Mini-UHF、TNC、BNC 和 N 型接口的适配器兼容性，可确保各种射频设置的灵活集成。
FME 连接器专为坚固耐用的现场使用而设计，可在承受振动和环境压力的同时保持稳定的阻抗。该系列是移动天线、海洋安装和电信应用的理想之选，在简化连接的同时不影响信号质量。
特点和优点
- 微型螺纹设计--节省空间，同时提供安全耦合

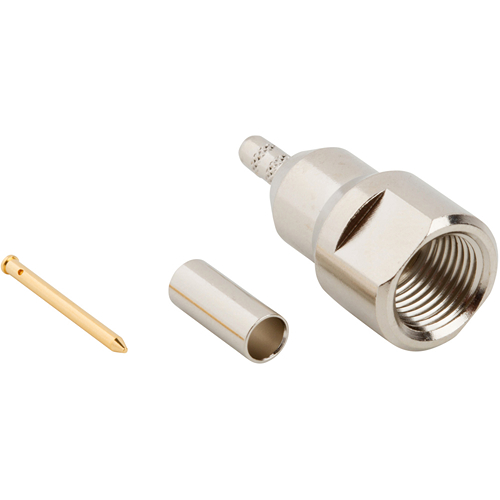

- 压接端接组件--使用 RG-58 电缆类型快速安装
- 系列间适配器支持--轻松过渡到 UHF、Mini-UHF、TNC、BNC 和 N 型接口
- 行业标准性能--直流-200 MHz 频率范围，满足常见的移动和天线应用需求
- 耐用结构--确保在移动和海洋环境中保持稳定的阻抗和信号质量
主要技术细节
- 阻抗标称阻抗：50 Ω
- 频率范围直流至 200 MHz（某些安费诺变体高达 2.4 GHz）
- 耦合机制：螺纹连接，可靠配接
- 电缆兼容性主要为 RG-58 和同等同轴选项
- 适配器能力通过适配器与 UHF、Mini-UHF、TNC、BNC 和 N 型等接口兼容
应用
- 移动天线系统--将车载和便携式天线连接到同轴馈线。
- 电信和射频设备--用于测试和监控设备的紧凑型连接器。
- 海洋和远程设置--适合户外和移动条件的坚固设计。
- 模块化射频系统--支持基于适配器的接口转换，无需定制电缆。
- UHF/BNC 转换设置--是使用 FME 适配器进行混合格式安装的理想选择。
浏览我们的 FME 连接器系列，包括直头和隔板格式、压接插头和插孔。如需设计定制电缆组件或探索先进的同轴接口，请联系我们的射频专家，我们将为您提供量身定制的支持。
Specifications
FME Connectors
Electrical
| Impedance
|
50 Ohm
|
|
Frequency Range |
DC - 200 MHz |
Environmental
| Temperature Range
|
−40°C to +85°C |
Mechanical
| Coupling Mechanism
|
Threaded
|
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
