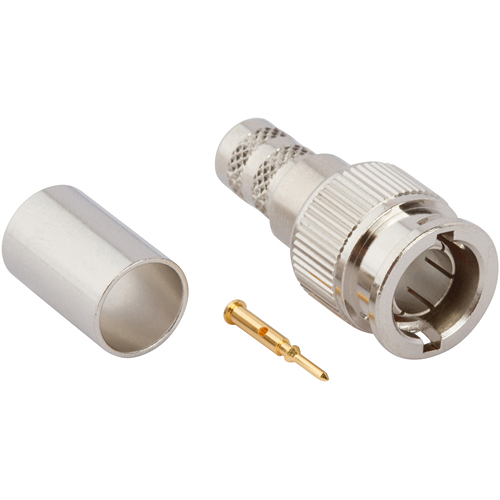

微型 BNC 连接器
用于广播和仪器仪表的节省空间、高带宽射频连接器
概述
Amphenol RF 的 Mini-BNC 系列以紧凑的封装提供标准 BNC 性能，非常适合空间受限的设计。这些连接器支持高达 12 GHz 的频率（尤其是 12G 广播变体），确保高分辨率视频和精密测试设备具有出色的信号保真度。
Mini-BNC 连接器有直插式和直角 PCB 安装式以及电缆安装式，易于集成并具有长期可靠性。其坚固的结构和快速卡口耦合可支持苛刻的环境，同时保持卓越的信号质量。
特点和优势
- 外形紧凑，缩小了连接器的占地面积，同时保留了功能齐全的 BNC 接口
- 在使用低损耗电缆的广播级组件上支持高达 12 GHz 的高频率
- 快速卡口式耦合可实现快速、安全的配接和拆卸
- 经久耐用，可承受频繁的配接/拆卸周期
- 多功能配置包括电缆插头、PCB 插座、隔板和直角版本
主要技术细节
- 阻抗射频标称阻抗为 50 Ω；部分组件的 12G 信号路径阻抗为 75 Ω
- 频率范围：广播级低损耗同轴电缆的 DC-12 GHz；典型模拟射频高达 4 GHz
- 配接周期：预计超过 500 次，保持电气和机械完整性
- 温度范围：-55 °C 至 +105 °C （取决于电缆和材料
- 耦合：卡口（1/4 圈）设计确保快速可靠的连接
应用
- 12G 广播和高分辨率视频系统
- 紧凑型仪器和射频测试设备
- 机架式射频模块和网络分析仪
- 需要在狭小空间内使用标准 BNC 接口的嵌入式射频系统
- 快速部署或现场测试电缆设置
了解我们完整的 Mini-BNC 连接器产品线--包括直式和直角 PCB 插座、电缆插头、适配器和兼容 12 GHz 的型号。如需定制电缆组件、阻抗校准或加固型连接器选件，请联系我们的工程团队，为您的项目量身定制解决方案。
Specifications
Mini-BNC Connectors
Electrical
| Impedance | 75 Ohm |
| Frequency Range | DC - 4 GHz |
| Voltage Rating | 500 Volts RMS Continuous |
| Dielectric Withstanding Voltage | 1000 VRMS Min |
| VSWR (Return Loss) | |
|
DC - 1 GHz
|
1.16 (-23 dB) Max |
| Insulation Resistance | 5000 MΩ Min |
| Insertion Loss | 0.10 dB Max @ 1 GHz |
Environmental
| Temperature Range | −65°C to +165°C |
| Thermal Shock | MIL-STD-202, Method 108, Condition D |
| Corrosion | MIL-STD-1344, Method 1001, Condition B |
| Vibration | MIL-STD-202, Method 204 (Test Condition B) |
| Mechanical Shock | MIL-STD-202, Method 213 (Test Condition B) - No Discontinutiy Permitted. |
| Moisture Resistance | EIA-364-31, Method II, Condition C |
Mechanical
| Mating Cycles | 500 Min |
| Coupling Mechanism | Bayonet |
| Engagement Force | ≤ 5 lbs (22 N) |
| Disengagement Force | ≥ 1.5 lbs (7N) |
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
