PCB端子
高可靠性板载同轴终端，确保稳定性能
概述

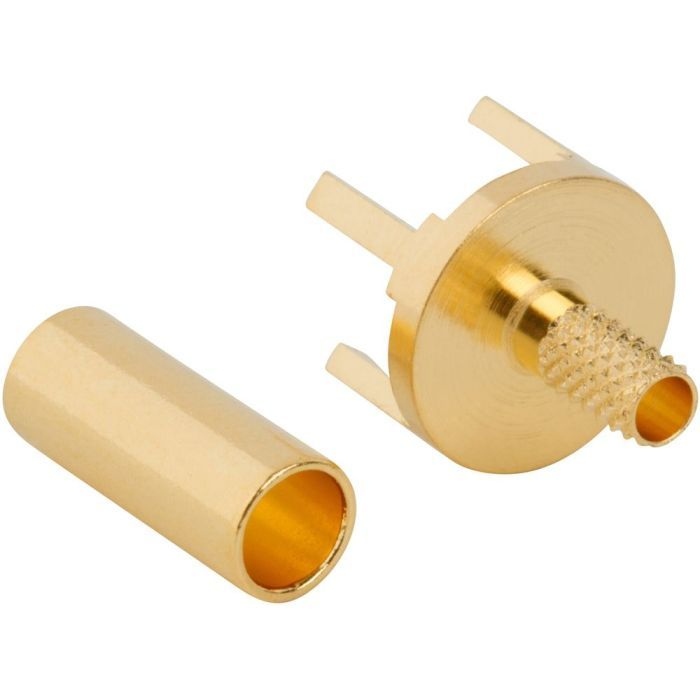

安费诺射频（Amphenol RF）的PCB终端连接器为电路板级同轴信号管理提供经久耐用、精密设计的解决方案。这些终端连接器专为保持阻抗一致性和机械稳定性而设计，是空间与性能至关重要的高频系统的理想选择。
产品系列涵盖多种配置——包括直插式、直角直插式、端面发射式、隔板式、夹紧式及法兰安装式——适用于RG-59、RG-402、LMR-195等各类电缆。每款产品均严格遵循射频性能标准，在确保信号完整性的同时兼顾机械强度。
特性与优势
- 适用于主流同轴电缆类型，阻抗恒定为50Ω或75Ω
- 多种安装方式——直通式、法兰式、夹紧式、隔舱式及直角式
- 支持多种线缆规格——RG-8/213/225、RG-59/62/141/405、RG-178/196、RG-316、RG-402、LMR-195、Belden 1164、8218
- 法兰和隔板选项增强机械稳定性与密封性
- 紧凑型端发射结构实现高频PCB走线集成
关键技术参数
- 阻抗：50Ω（广泛应用）；可选配75Ω版本
- 频率范围：直流至数GHz——取决于连接器与线缆选择
- 插拔循环：焊接型与压接型支持长期稳定使用；端面发射型适用于反复测试连接
- 温度范围：典型值-40℃至+85℃；可根据材料特性提供耐高温型号
- 结构：黄铜或不锈钢材质，配以坚固镀层；采用PTFE或同等介电材料实现精密射频控制
应用领域
- 高速PCB测试与测量系统
- 射频与微波通信模块
- 广播与视频设备
- 航空航天、国防及工业仪器
- 测试夹具、实验室及研发环境
探索我们完整的PCB终端连接器产品线——涵盖直插式、夹紧式、隔板式、直角式、法兰式及端面发射式等多种结构，适配各类线缆类型。若您的应用需要定制化布局、高密度电路板设计或强化结构方案，欢迎联系我们的工程团队，我们将根据您的射频需求提供专属解决方案。
