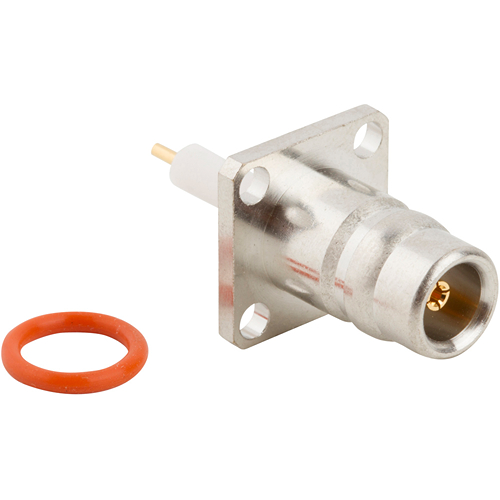

QN 连接器
用于面板、测试夹具和电缆组件的可靠快速连接射频解决方案
概述
Amphenol RF 的 QN 连接器可在对速度和带宽要求极高的应用中提供稳定的性能。QN 采用四分之一圈快速连接接口，可在不影响信号完整性或耐用性的情况下实现快速配接和拆卸。
QN 连接器的设计兼具灵活性和可靠性，可支持从实验室测试装置到电信和国防系统的各种应用。它们有适配器、隔板、电缆安装和面板安装形式，可满足各种工程需求。
特性和优点
- 快速、安全配接：¼ 转耦合机制确保快速连接/断开，同时保持射频性能
- 高频能力：针对高达 4 GHz 的宽带应用进行了优化
- 耐用结构：不锈钢外壳和镀金中心可抵御恶劣环境
- 多种安装方式：电缆、面板、隔板和适配器配置提供了设计灵活性
- 便于测试：是实验室和夹具使用的理想选择，可通过重复配接实现可靠的吞吐量
主要技术细节
- 阻抗50 Ω
- 频率范围DC - 4 GHz（取决于连接器和电缆）
- 配接周期：典型值：最少 500 次，因组件而异
- 额定温度：-55 °C 至 +165 °C（取决于连接器材料）
- 耐腐蚀性钝化不锈钢外壳
应用
- 射频测试夹具和仪器
- 电信设备修补和校准
- 国防和航空航天射频布线
- 面板安装式射频接口
- 原型开发和实验室环境
查看 Amphenol RF 用于标准快速连接面板和电缆组件的 QN 连接器目录。对于定制的变化，例如特定长度、端接或材料表面处理，我们的工程团队随时准备提供帮助。请联系我们，讨论您的定制要求。
Specifications
QN Connectors
Electrical
| Impedance | 50 Ohm |
| Frequency Range | DC - 11 GHz |
| Voltage Rating | 500 Volts RMS Continuous |
| Dielectric Withstanding Voltage | 2500 VRMS Max |
| VSWR (Return Loss) | |
|
DC - 3 GHz
|
1.052 (-32 dB) Max |
|
3 - 6 GHz
|
1.12 (-25 dB) Max |
|
6 - 11 GHz
|
1.22 (-20 dB) Max |
| Insulation Resistance | 5000 MΩ Min |
| Center Contact Resistance | 1.5 mΩ Max |
| Outer Contact Resistance | 1.5 mΩ Max |
| RF Leakage | -90 dB Max (DC - 3 GHz) |
| Insertion Loss | .03 √(f(GHz)) dB Max |
| Power Handling | 300 W @ 2.5 GHz @ 25ºC |
Environmental
| Temperature Range | −40°C to +125°C |
| Thermal Shock | IEC 60169-1 16.4 (-40⁰C to +125⁰C) |
| Corrosion | MIL-STD-202, Method 101 (Test Condition B) |
| Vibration | IEC-1169-1 Paragraph 9.3.3 (10-500 Hz;5g) |
| Moisture Resistance | MIL-STD-202 F, Method 106 F |
Mechanical
| Mating Cycles | 100 Min |
| Coupling Mechanism | Push-Pull |
| Interface Specification | Quick Lock Formula - QN |
| Engagement Force | 6.75 lbs (30 N) Typ |
| Disengagement Force | 6.75 lbs (30 N) Type |
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
