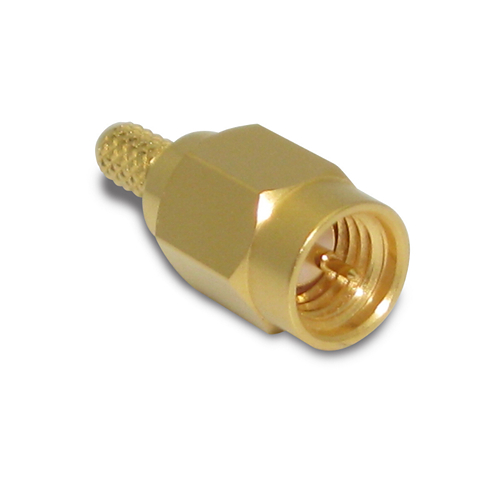

SSMA 连接器
高频、紧凑型射频连接器，专为要求严格的精密应用而设计
概述
Amphenol RF 的 SSMA 连接器是结构紧凑的超小型解决方案，旨在满足空间受限应用中对更高频率、更高精度射频性能日益增长的需求。这些 50 欧姆连接器非常适合用于 SMA 连接器过大的系统，以更小的外形尺寸提供类似的机械设计。
SSMA 连接器专为直流至 40 GHz 性能而设计，采用旋入式耦合机制，即使在具有挑战性的环境中也能确保一致的电气性能和机械稳定性。其坚固的设计使其适用于测试和测量、仪器仪表、军事和航空航天系统。
特点和优势
- 工作频率高达 40 GHz，具有高频性能
- 设计紧凑，是有限空间安装的理想选择
- 螺纹连接机制确保安全配接
- 优质不锈钢结构，经久耐用
- 与各种精密同轴电缆兼容
主要技术细节
- 50 欧姆阻抗
- 宽带性能高达 40 GHz（取决于电缆）
- 螺纹耦合确保可靠的机械连接
- 与商业和军事领域的精密射频系统兼容
应用
- 测试和测量设备
- 军用通信系统
- 航空航天和国防平台
- 仪器和传感器接口
- 紧凑环境中的高频信号传输
浏览我们全系列的 SSMA 连接器，找到适合您设计要求的解决方案。如果您的应用需要定制配置，我们的团队可随时为您的工程需求提供支持。
Specifications
SSMA Connectors
Electrical
| Impedance | 50 Ohm |
| Frequency Range | DC - 34 GHz |
| Voltage Rating | 250 Volts RMS Continuous |
| Dielectric Withstanding Voltage | 750 VRMS Max |
| VSWR (Return Loss) |
|
|
DC - 18 GHz
|
1.10 + .005*f (GHz) Max |
Environmental
| Temperature Range | −65°C to +165°C |
| Thermal Shock | MIL-STD-202, Method 107 (Test Condition B) except high temp test @ +200°C |
| Corrosion | MIL-STD-202, Method 101 (Test Condition B) - 5% Salt Solution |
| Vibration | MIL-STD-202, Method 204 (Test Condition D) |
| Mechanical Shock | MIL-STD-202, Method 213 (Test Condition B) - No Discontinuity Permitted |
| Moisture Resistance | MIL-STD-202 Method 106 |
Mechanical
| Mating Cycles | 500 Min |
| Coupling Mechanism | Threaded |
| Interface Specification | MIL-STD-348 |
| Mating Torque, Min Working | 0.45 N-m (4 in-lbs) |
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
Interface Dimensions
Plug
Jack
