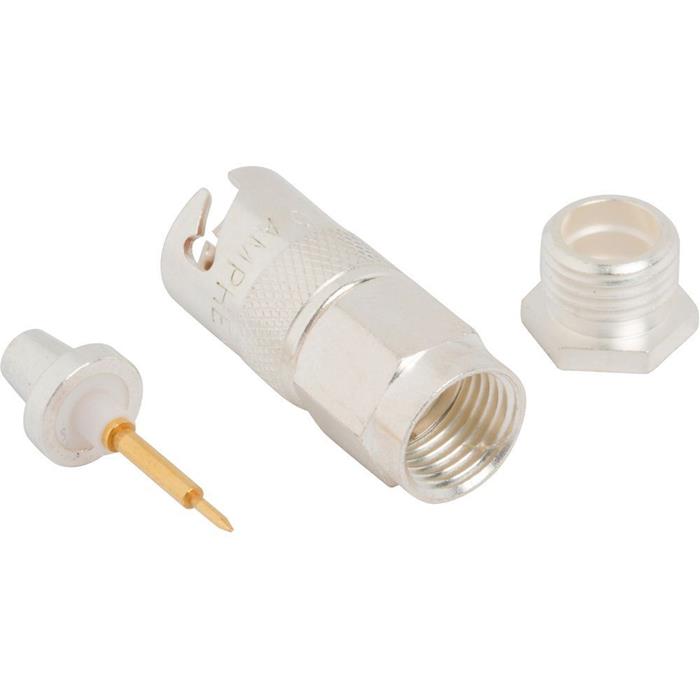

TPS 连接器
Amphenol RF 可靠的 50 Ω/75 Ω 同轴射频互连器件，专为仪器仪表、广播和密集系统环境而设计。
概述
在 Amphenol RF，我们的 TPS 连接器系列为工程师采购与标准电缆和半刚性配置兼容的坚固射频同轴接口提供了多功能解决方案。TPS 系列采用钳式和压接连接方法，适用于 50 Ω 和 75 Ω 系统，支持灵活集成到板对电缆或自由悬挂电缆互连拓扑结构中。
凭借成熟的接口设计和广泛的行业应用，TPS 连接器可在广播、测试与测量和一般射频应用中提供可靠的性能。该系列与常见同轴电缆类型（如 RG-58、RG-303、RG-405）兼容，确保了采购和系统集成的简便性。
特性和优点
- 提供50 Ω和75 Ω两种阻抗，可用于标准射频或广播/视频系统。
- 电缆终端灵活性：钳式或螺钉式终端，兼容 RG-58、RG-141、RG-303、RG-405 和类似的保形/半刚性电缆。
- 接口占用空间小，支持仪器仪表和广播系统中的高密度面板或机架安装布局。
- 成熟的连接器设计，经过现场使用验证，支持全球采购和供应链信心。
- 标准抗腐蚀表面处理和镀金触点确保在各种环境下的可靠连接。
主要技术细节
- 阻抗：50 Ω 标准；提供 75 Ω 版本，使设计人员能够根据系统或电缆结构调整连接器阻抗。
- 频率范围：典型性能从直流扩展到 ~4-10 GHz 左右的示例上限，具体取决于电缆类型和组件配置（具体部件请查阅数据表）。
- 配接周期：一般连接器的耐用性符合同轴接口的行业惯例；TPS 系列的实际配接寿命可能因电缆终端和使用情况而异。
- 温度范围：TPS 系列支持同轴射频连接器典型的宽工作范围；实际性能取决于电缆护套和连接器端接。
- 特殊功能：支持 50 Ω 和 75 Ω 阻抗、广泛的电缆兼容性和夹钳端接方式；请注意，标准 TPS 连接器不是密封的，不具有特殊的 IP67 环境等级。
应用
- 需要与电缆和模块进行可靠射频同轴连接的仪器仪表和测试测量系统。
- 利用 75 Ω 阻抗 TPS 连接器实现信号完整性和阻抗匹配的广播和视频链路系统。
- 广播机架、网络模块和同轴接线板系统中的射频互连，需要紧凑的标准电缆终端。
- 无线接入、数据通信或仪器设备中利用标准同轴电缆的一般射频电缆到电路板或电缆到电缆链接。
- 在原型开发和系统集成环境中，久经考验的连接器系列可简化采购、可靠性和制造过程。
了解我们完整的标准产品 TPS 连接器系列。如果您需要定制端接、替代电缆兼容性或标准目录之外的特殊变体，请联系我们的工程团队，以获得量身定制的解决方案。
