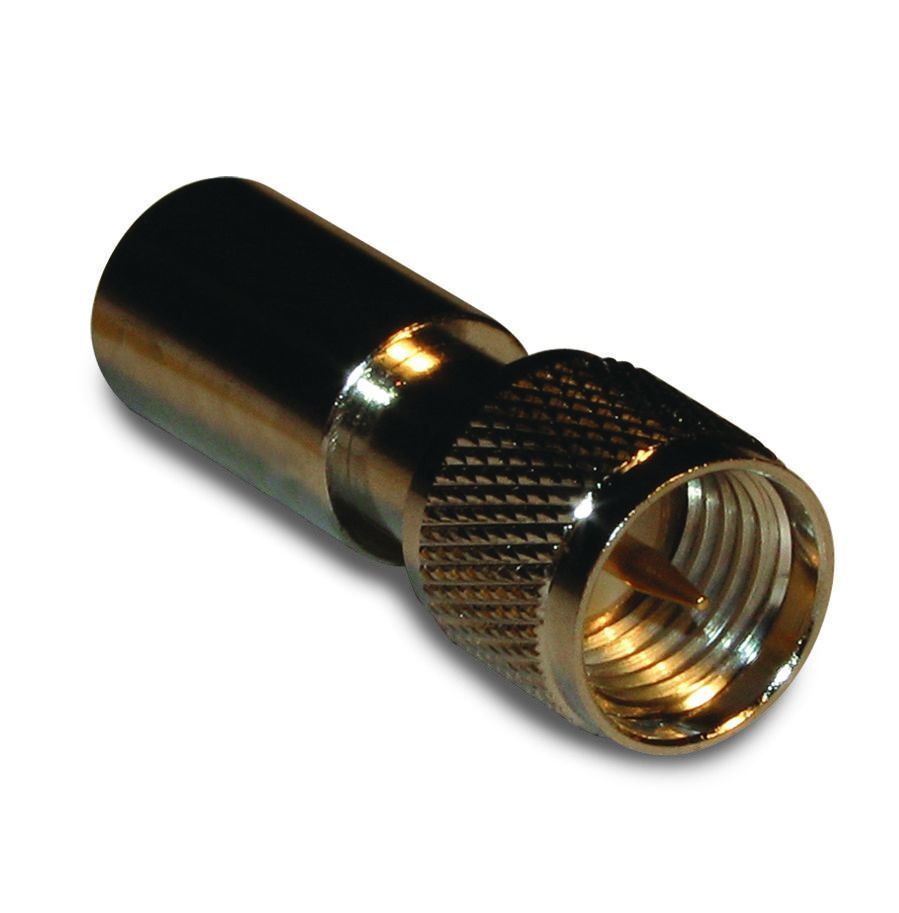

微型超高频终端器
适用于 50 Ω 系统的紧凑型螺纹射频终端，对尺寸、重量和成本要求极高
概述
在 Amphenol RF，我们的 Mini-UHF 端接器为需要微型 3/8-24 螺纹接口的系统中正确端接未使用的端口或信号线提供了简化的解决方案。Mini-UHF 连接器可提供高达 ~2.5 GHz 的卓越射频性能，适用于对成本和尺寸敏感的应用。
无论是部署在电信、汽车、测试设备还是便携式射频模块中，这些 Mini-UHF 端接都有助于保持信号完整性、减少反射并简化库存，同时还能节省空间。
特性和优势
- 与 Mini-UHF 系列连接器兼容的标准 50 Ω 阻抗端接--确保系统匹配和最小信号反射。
- 螺纹 3/8-24 连接为模块化或紧凑型系统布局提供可靠的机械连接。
- 微型化外形符合空间和重量敏感型设计要求，有助于减少电路板或面板占用空间。
- 高达 ~2.5 GHz 的宽带性能支持各种射频、无线和通用同轴应用。
- 以安费诺射频公司的文档和全球供应基础设施为后盾的可信平台，有助于工程选择和系统集成。
主要技术细节
- 阻抗：50 Ω.
- 频率范围Mini-UHF 连接器系列的典型频率高达 ~2.5 GHz；实际端接性能取决于电缆类型和装配条件。
- 配接周期：螺纹接口支持多次连接/断开操作；一份数据表显示，微型超高频连接器的插配周期为 500 次。
- 温度范围：一份 Mini-UHF 数据表显示 -65 °C 至 +165 °C。注：实际端接器件额定值可能因材料和端接方式而异。
- 特点微型 3/8-24 螺纹、小尺寸、标准阻抗匹配端接。注：在标准产品文档中，这些端子未被描述为密封或 IP67 防护等级。
应用
- 电信或无线基础设施中使用 Mini-UHF 连接器且必须端接备用端口的射频模块。
- 汽车或便携式无线设备，这些设备的尺寸和重量受到限制，需要在 ~2.5 GHz 频率下进行高性能端接。
- 采用 Mini-UHF 接口的测试和测量设备、仪器或校准装置，这些设备需要对未使用的端口进行可靠端接，以保持测量精度。
- 射频或宽带系统中的电缆组件末端、面板安装块或系统外壳模块，这些地方需要使用紧凑型端接。
浏览我们完整的 Mini-UHF 端接器产品组合。如果您需要超出标准目录的定制额定功率、替代端接配置、专用电缆引线或环境密封，请联系我们的工程团队，探讨量身定制的解决方案。
