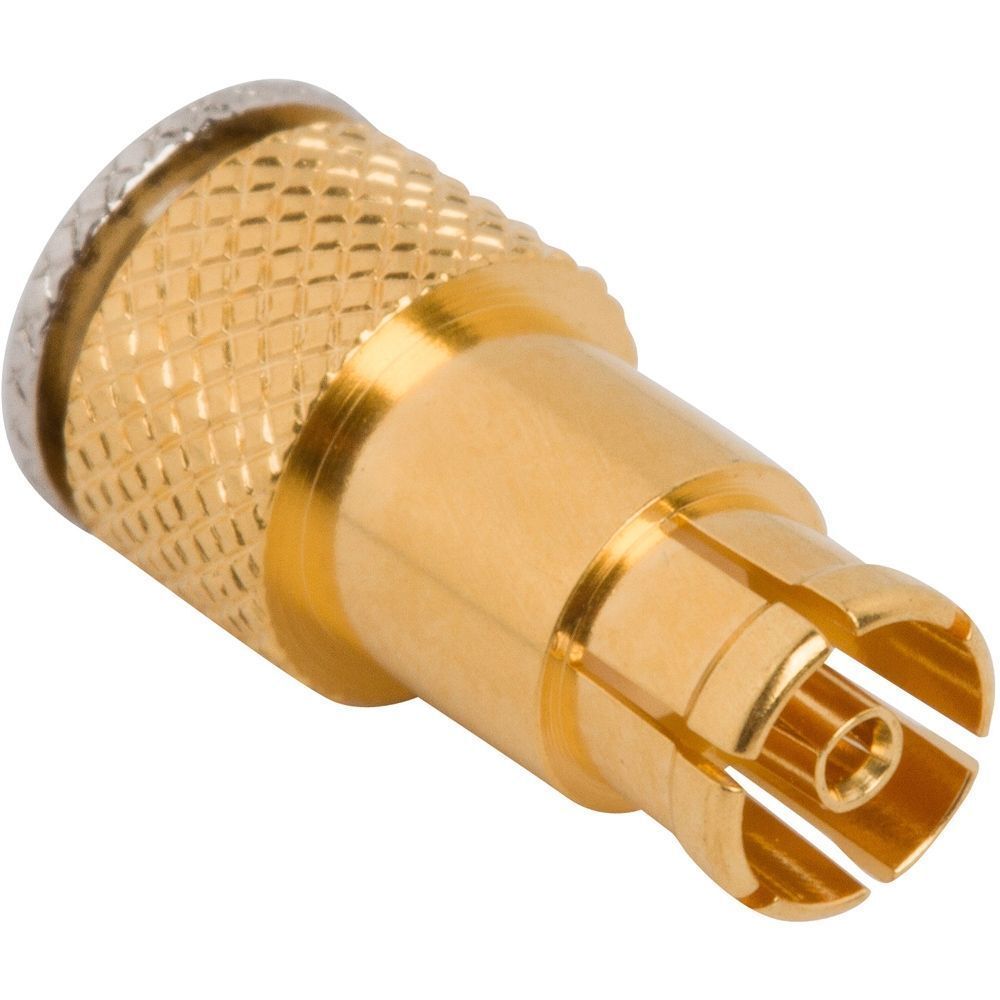

PSMP 终结器
高频、大功率射频终端，专为使用 PSMP 接口的紧凑型板对板系统而设计
概述
PSMP 端接器为使用 PSMP 连接器系列的射频系统中的未使用端口或信号路径提供了可靠、节省空间的解决方案。这些 50 欧姆端接可确保最佳阻抗匹配和低反射，在苛刻的环境中保持信号完整性。PSMP 接口支持高频操作，间距紧凑，非常适合精度和性能要求极高的高密度模块化设计。
这些端子专为补充安费诺射频的 PSMP 连接器产品线而设计，在需要高功率处理和可重复连接的应用中提供一致的机械和电气性能。它们采用推入式耦合和紧凑的几何形状，便于在板对板、电缆对板和盲配配置中进行安装和可靠的端接。
特性和优势
- 高频性能，支持先进射频系统高达 10 GHz 的工作频率。
- 外形紧凑，最小板间距为 12.6 毫米，适合密集模块化和多板组装。
- 2.2 GHz 时功率高达 200 W，可在苛刻环境中连续工作。
- 50 欧姆阻抗可在精密射频电路中提供适当的匹配并最大限度地减少信号反射。
- 推入式耦合实现了盲配功能，简化了高密度布局中的装配。
- 耐用的结构确保了现场和实验室环境中的机械可靠性和长期性能。
主要技术细节
- 阻抗：PSMP 产品系列的标准阻抗为 50 欧姆。
- 频率范围：直流至 10 GHz，取决于电缆类型和终端配置。
- 配接周期：光滑内孔接口支持多达 1,000 次插配循环；有限棘爪式通常最少支持 100 次插配循环。
- 温度范围：-65 °C 至 +165 °C工作温度范围，具体取决于材料选择和连接器配置。
- 特殊功能紧凑的 12.6 毫米最小板间距、推入式耦合机制、高功率和高频性能；标准部件不是密封的，不具备 IP67 环境保护功能。
应用
- 需要紧凑型高频板对板或电缆对板终端的无线基础设施和射频模块设计。
- 使用 PSMP 接口的测试和测量系统，其中未使用的端口需要稳定的阻抗控制。
- 大功率放大器模块和滤波器单元，需要对未连接的信号路径进行可靠的 50 欧姆端接。
- 航空航天和国防子系统，在高密度架构中需要可靠的盲配端接解决方案。
- 采用 PSMP 连接器的模块化射频组件设计的通信和工业控制系统。
浏览我们全系列的 PSMP 端接器，为您的射频系统找到理想的解决方案。如果您需要定制端接配置、环境密封或标准产品之外的高功率变体，请联系我们的工程团队，以获得量身定制的设计。
