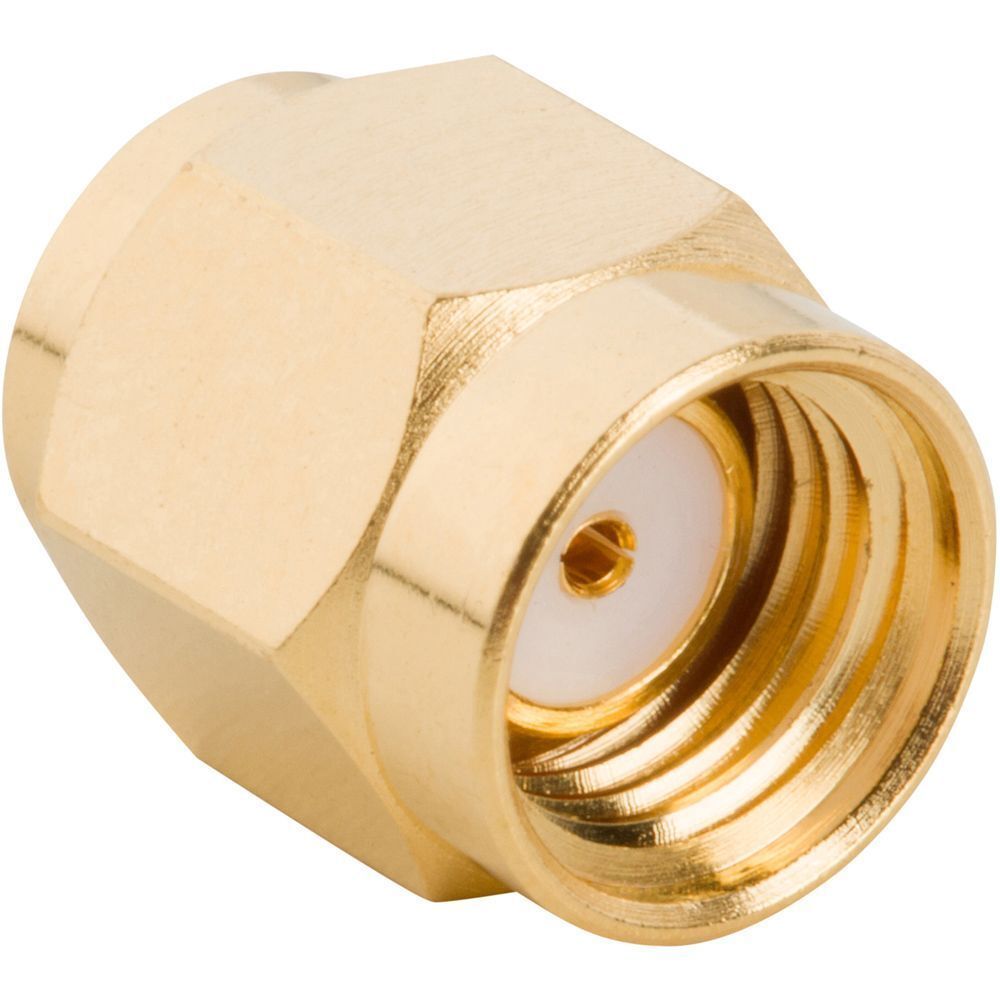

RP-SMA 端接器
RP-SMA 接口内置标准 50 Ω 端接，以保持备用端口和信号路径的射频完整性。
概述
在设计无线模块、物联网网关、测试仪器或其他使用反极性 SMA (RP-SMA) 连接器的射频系统时，确保闲置或备用端口正确端接是保持信号性能和最大限度减少反射的关键。RP-SMA 端接器可与 RP-SMA 接口无缝连接，提供可靠的阻抗匹配，即使在端口闲置时也有助于保持系统稳定性。
这些端子继承了 RP-SMA 连接器系列在机械和电气方面的传统--螺纹耦合、紧凑的外形以及在各种频率和环境要求下出色的耐用性。RP-SMA 连接器系列在许多配置中都具有高达 ~18 GHz 的性能，因此该端接产品线可支持无线和仪器仪表领域的各种射频应用。
特性和优点
- 用于 RP-SMA 系统的匹配 50 Ω 阻抗端接- 确保一致的射频性能，并最大限度地减少不必要的反射。
- 螺纹耦合 RP-SMA 接口提供安全的机械连接，使端接坚固耐用，适合实验室、现场或工业应用。
- 广泛的频率兼容性，与 RP-SMA 连接器的功能（在许多变体中最高可达 ~18 GHz）一致，支持现代无线和仪器系统。
- 占地面积小，外形熟悉，无需重新设计即可轻松集成到射频模块、配线架、天线系统和电缆组件中。
- 属于值得信赖的互连生态系统，使采购、工程和维护团队对可用性、文档和生命周期支持充满信心。
主要技术细节
- 阻抗标称阻抗：50 Ω - RP-SMA 连接器和终端的标准。
- 频率范围：RP-SMA 连接器系列的额定频率范围为直流至 ~18 GHz（在扩展设计中最高可达 34 GHz）。实际端接性能取决于电缆类型、装配和配置。
- 配接周期：RP-SMA 连接器系列的额定插配周期至少为 ~500 次。端接耐久性可能因环境条件和安装方式而异。
- 温度范围：Amphenol RF 的 RP-SMA 连接器的典型温度范围为 -65 °C 至 +165 °C。个别端子产品的准确额定值应进行验证。
- 特殊功能：螺纹耦合具有抗振性，外形紧凑，适合密集布局和宽阻抗匹配。注：标准 RP-SMA 端接器没有密封或 IP67 防护等级的记录，除非在零件数据表中有明确说明。
应用
- 采用 RP-SMA 连接器的无线基础设施、物联网和嵌入式射频系统--终端器用于关闭未使用的端口，确保系统的射频稳定性。
- 使用 RP-SMA 接口的测试和测量设备，校准或闲置端口需要稳定的端接以防止测量误差。
- 必须端接 RP-SMA 端口以保持信号完整性并减少泄漏的天线系统、配线和接线板组件。
- 利用 RP-SMA 连接器的电缆组件构建和模块化系统设计，匹配端接的库存可简化集成和维护。
- 工业、商业和电信平台，RP-SMA 螺纹接口是标准配置，需要可靠的 50 Ω 端接。
请浏览安费诺射频的完整 RP-SMA 端接器目录。如果您的系统需要定制额定功率、备用端接配置、特殊表面处理或环境密封，请联系我们的工程团队，讨论量身定制的解决方案。
