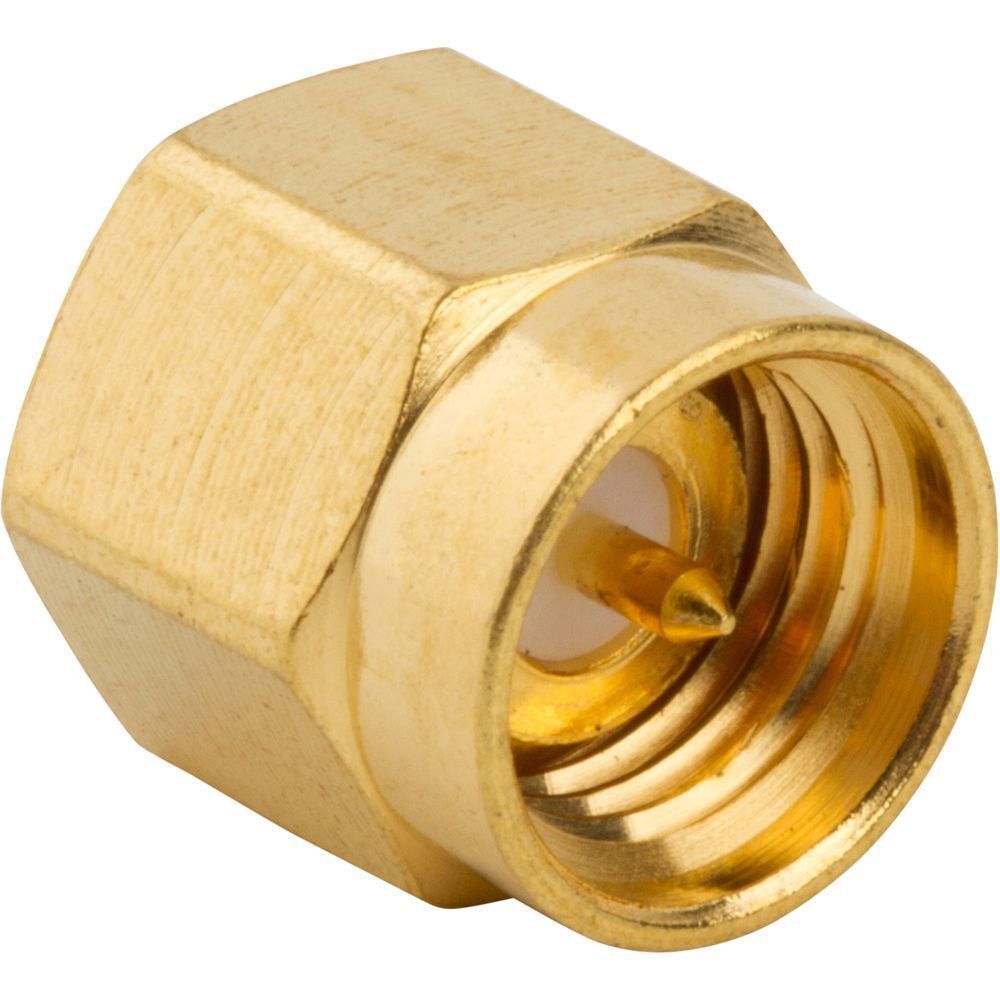

SMA 端接器
紧凑型 50 Ω RF 端接基于值得信赖的 SMA 接口，适合高频和精密系统使用
概述
在 Amphenol RF，SMA 端接器系列为工程师和买家提供了直接与广泛使用的 SMA 螺纹接口配对的端接解决方案。这些端接可确保正确的阻抗匹配，并最大限度地减少未使用端口的信号反射，从而提高系统稳定性和性能。
SMA 端接器专为高频、空间效率高的射频组件而设计，支持高达 ~18 GHz 的宽带工作频率（基于 SMA 连接器性能），并提供多种标准目录变体。
特性和优势
- 标准 50 Ω 端接与常见的射频同轴系统和 SMA 连接器兼容，简化了零件选择和库存。
- 高频性能--许多 SMA 端接器的工作频率可达 ≈ 18 GHz，可用于要求苛刻的射频、微波和测试设备环境。
- 螺纹耦合机制（继承自 SMA 接口）提供安全的机械配接、抗震性和坚固性，适用于恶劣环境。
- 外形小巧，适用于密集的射频布局、板对电缆接口和模块化组件，可在整个系统中保持一致的阻抗端接。
- Amphenol RF 成熟的供应链和文档确保工程师能够获得详细的规格、清晰的零件产品和全球可用性。
主要技术细节
- 阻抗：SMA 端接器产品系列的标称阻抗为 50 Ω。
- 频率范围：基于 SMA 连接器系列，典型性能范围为 DC 至 ~18 GHz。端接器性能取决于电缆和配置。
- 配接周期：SMA 连接器系列在标准条件下的额定最低配接周期约为 500 次。端子的使用情况可能因设计和环境而异。
- 温度范围：Amphenol RF 的 SMA 连接器系列的大致工作范围为 -65 °C 至 +165 °C。应参考实际的端接部件，以获得精确的额定值。
- 特殊功能：紧凑型 SMA 接口、坚固的螺纹耦合、高频端接能力。注：标准 SMA 端接器除非在零件数据表中明确指出，否则不会被描述为密封或 IP67 防护等级。
应用
- 必须端接未使用的 SMA 端口以保持校准、精度和信号完整性的测试与测量系统。
- 工作频率接近 10 GHz-18 GHz，需要在 SMA 连接器上进行匹配端接的高频微波子系统、仪器模块或射频前端。
- 模块化射频组件、板对电缆接口和同轴接线板系统，这些应用中紧凑的标准化端接有助于简化集成和维护。
- 使用 SMA 互连的电信、无线基础设施或工业射频系统，需要可靠地端接备用端口以避免反射或信号泄漏。
- 一般射频系统构建和实验室环境，工程师依赖于可靠的连接器格式和记录详实的端接元件。
浏览 Amphenol RF 的全系列 SMA 终端。如果您的应用需要标准目录中未列出的定制阻抗变体、更高功率额定值、特殊表面处理或环境密封，请联系我们的工程团队，探讨量身定制的解决方案。
