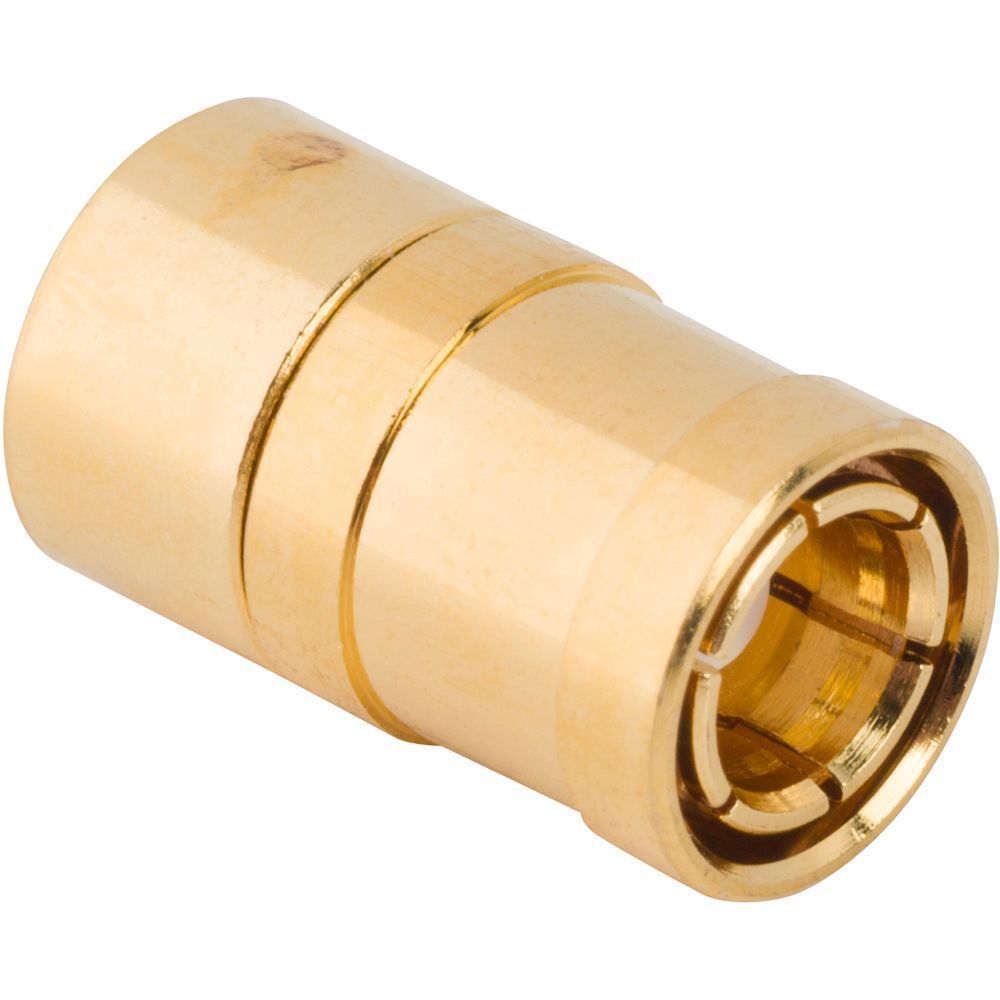

SMB 终结器
紧凑型 50 Ω（和 75 Ω）卡扣式射频终端，专为高密度系统中的高效信号端口封闭而设计
概述
在空间有限且信号完整性至关重要的现代射频模块和电缆组件中，正确端接未使用的端口对于避免反射和保持性能至关重要。Amphenol RF 的 SMB 端接器系列就是专门为此而设计的。这些端接与许多密集射频布局中使用的卡入式 SMB 接口相连，实现了快速安装、可靠的阻抗匹配和紧凑的外形集成。
SMB 连接器专为宽带性能而设计，典型工作频率从直流到 ~4 GHz，扩展型可达 ~10 GHz。对于在仪器仪表、无线、广播或电缆组装应用中指定 SMB 端接端口的系统工程师来说，SMB 端接器产品线提供了标准化的可靠解决方案，有助于保持信号链完整性。
特点和优势
- 卡入式耦合机制（SMB 接口）实现了快速、免工具安装，与大型螺纹连接器相比减少了占地面积。
- 提供50 Ω 标准和特定75 Ω变体，以满足射频、广播或混合用途安装中的系统阻抗需求。
- 与高密度板对电缆和电缆对板组件兼容，占用空间小，配接速度快。
- 宽带性能支持各种频率，有助于简化各系统层级的零件选择。
- Amphenol RF 可靠的供应和文档确保了采购、BOM 和系统可靠性的清晰度。
主要技术细节
- 阻抗：标称 50 Ω，用于 SMB 终端；还提供 75 Ω 变体，用于以广播或视频为中心的用途。
- 频率范围：SMB 系列的标准型号支持 DC 至 ~4 GHz，扩展型号支持高达 ~10 GHz。实际端接器性能取决于配置、装配和电缆。
- 配接周期：卡入式 SMB 接口支持重复配接；端子的配接寿命将因使用情况、电缆应变和装配条件而异。
- 温度范围：SMB 连接器的典型工作范围涵盖各种工业条件；具体的端接部件应参考确切的额定值。
- 特殊功能：紧凑型卡入式接口，提供 50 Ω/75 Ω 两种规格，专为高密度布局而优化。注：标准 SMB 端接不是密封的，基本目录中没有列出 IP67 环境额定值。
应用
- 射频测试和测量设备，其中 SMB 端口需要可靠的端接以防止反射或幽灵信号。
- 无线基础架构模块、小蜂窝系统或背板组件，这些设备使用高密度卡入式连接，可安装端接有助于管理未使用的端口。
- 在仪器仪表、遥测或广播系统中使用 SMB 端接的电缆组件制造和供应链。
- 使用 75 Ω SMB 端接进行阻抗匹配端口封闭的广播视频应用或分配网络。
- 高密度板对板或电缆对板子系统集成，空间狭小，端接必须保持电气完整性，而无需笨重的连接器。
浏览 Amphenol RF 提供的全部 SMB 端接产品。如果您需要定制阻抗、特殊额定功率、备用端接配置或特殊环境变体，请联系我们的工程团队，以获得量身定制的解决方案。
