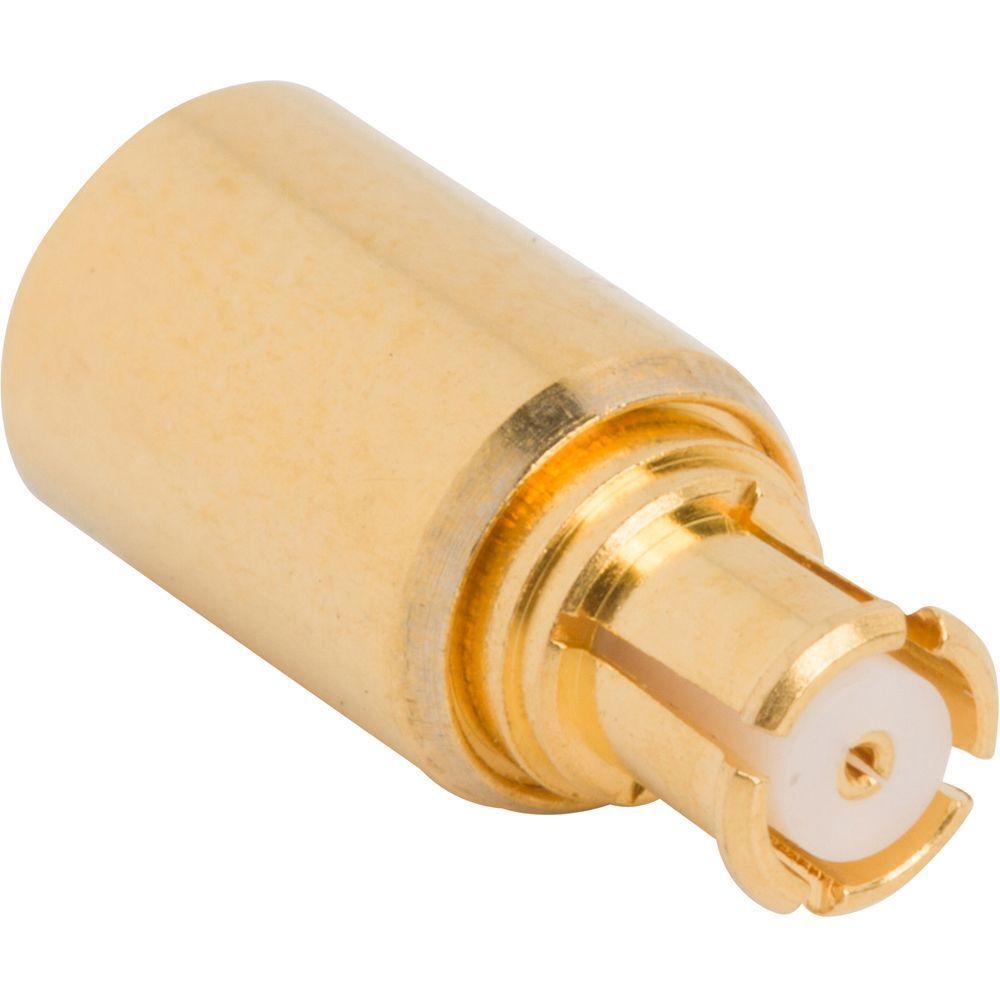

SMP 终结器
基于 SMP 按压/卡入式接口的紧凑型 50 Ω 射频终端，适用于高密度、高频率应用
概述
Amphenol RF 的 SMP 端接器系列为设计人员和系统集成商提供了与 SMP 连接器接口相匹配的端接解决方案。SMP 接口是一种超小型同轴格式，支持宽带操作（在其连接器系列中最高可达 DC-40 GHz），常用于小型化高频同轴模块和电缆到板或板到板组件。
当射频系统中存在未使用的端口或信号路径时--无论是在仪器仪表、通信模块还是高密度射频组件中--SMP 端接器都能提供适当的 50 Ω 匹配，减少反射并有助于保持系统完整性。这些终端能够处理高频率，外形紧凑，是现代射频架构的理想之选。
特性和优点
- 标准50 Ω 阻抗端接，与 SMP 连接器系列相匹配，简化了库存和选择。
- 高频能力：SMP 连接器支持直流至 ~26.5 GHz（在扩展设计中最高可达 ~40GHz），确保端接器能够支持先进的射频模块要求。
- 紧凑的推入式或卡入式连接方式允许快速安装和拆卸，有利于高密度模块环境。
- 微型基底面支持高密度板对板或电缆对板布局，节省空间至关重要。
- 通过 Amphenol RF 提供值得信赖的制造和文档，使用户对规格的一致性和供应链支持充满信心。
主要技术细节
- 阻抗：SMP 端接器产品系列的标准阻抗为 50 Ω。
- 频率范围：虽然端接器的确切性能取决于零件编号和电缆/组件，但数据显示，在许多产品目录中，SMP 端接器的频率可达 ~26.6 GHz。
- 配接周期：SMP 连接器系列在标准条件下的额定配接周期最少为 100 次。端子的耐用性会随使用环境而变化。
- 温度范围：连接器系列和已编入目录的 SMP 端子的典型工作温度范围为 -65 °C 至 +165°C。
- 特殊功能：微型尺寸、推入式耦合、高频能力。注：标准 SMP 端接器并非密封或 IP67 防护等级，除非在零件数据表中有明确说明。
应用
- 使用 SMP 接口的射频模块和子系统板，未使用的端口需要适当的端接以保持信号完整性。
- 利用 SMP 宽带能力和未使用端口或校准路径端接的高频仪器和测试设备。
- 密集电缆组件或背板互连，板对板间距有限，端接必须占用最小空间，同时保持性能。
- 无线通信组件、航空航天或国防射频模块，这些组件的紧凑外形和端接可靠性是关键。
- 使用 SMP 连接器的同轴电缆组件和高速数据通道，需要匹配端接以限制反射并保持系统稳定性。
了解安费诺射频的全部 SMP 端接器产品组合。如果您的应用需要超出标准目录的非标准额定功率、定制电缆引线、专用表面处理或环境密封，请联系我们的工程团队，我们将根据您的需求为您量身定制解决方案。
