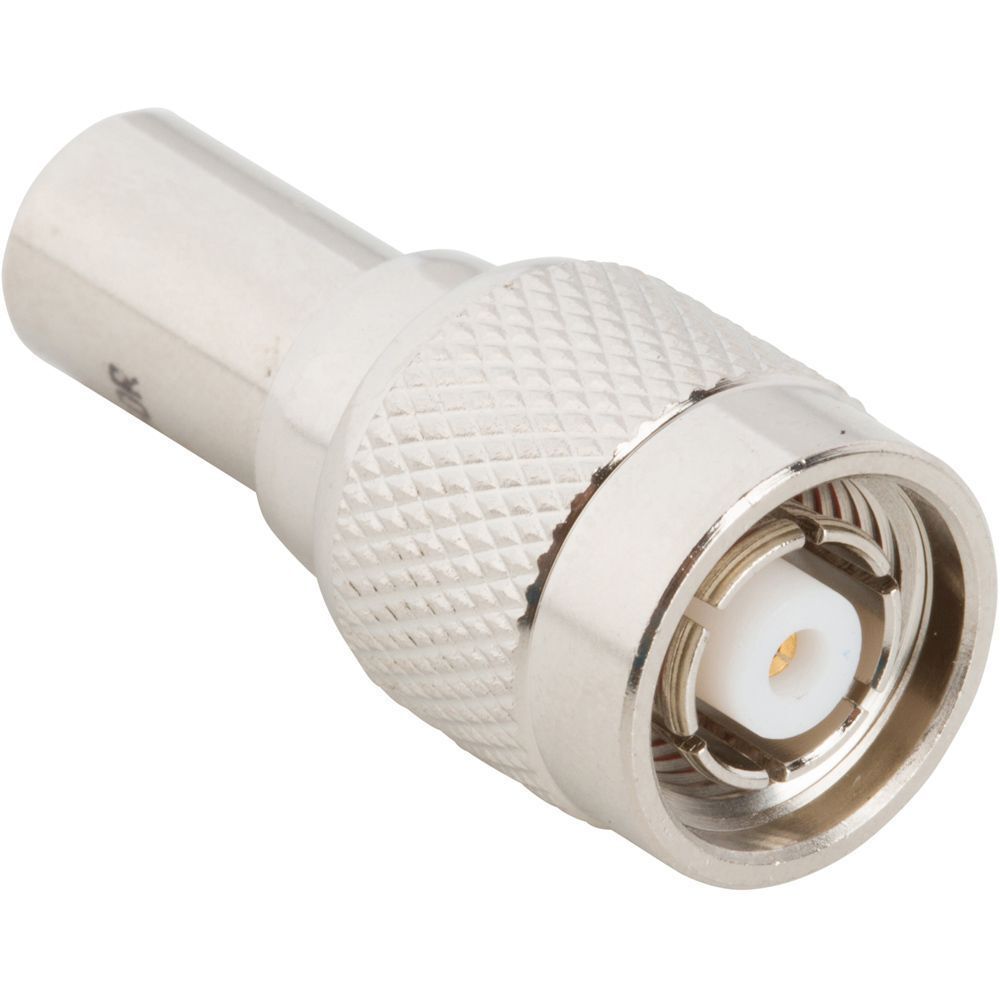

TNC 终端机
专为螺纹 TNC 接口设计的坚固 50 Ω 射频终端，确保可靠的端口闭合和信号完整性
概述
在许多射频系统中，未使用端口的端接对于保持性能、防止信号反射和保障系统完整性至关重要。我们的 TNC 端子（设计用于与标准 TNC 螺纹接口连接）为电缆组件和射频网络中的适当阻抗匹配提供了强大的解决方案。凭借支持 DC-11 GHz（扩展至 ~18 GHz）性能的基础 TNC 连接器系列，这些终端器非常适合要求苛刻的应用。
这些终端具有与 TNC 连接器系列相同的机械设计特性，如螺纹耦合、抗震性和广泛的环境耐受性，有助于系统保持稳定的射频性能，同时简化系统组装和维护。
特性和优势
- 50 Ω 阻抗标准，与大多数 TNC 连接器系统相匹配，可实现一致的射频性能并简化部件选择。
- 螺纹连接机制可确保安全连接，即使在振动密集或移动环境中也是如此，有助于防止意外断开连接。
- 广泛的频率能力--连接器系列支持 DC-11 GHz（扩展设计可达 ~18 GHz）--使终端器与广泛的射频、微波和测试设备应用兼容。
- 耐用的材料和设计支持苛刻的环境；适用于电信、工业无线、广播和军事平台。
- 标准化的基底面和接口有助于简化工程师和采购专业人员的库存、维护和系统集成。
主要技术细节
- 阻抗标称阻抗：50 Ω，符合 TNC 连接器系列规范。
- 频率范围：TNC 接口的典型频率范围为 DC 至 ~11 GHz；扩展范围版本支持高达 ~18 GHz。端子性能取决于配置和装配。
- 配接周期：TNC 连接器系列的额定插配周期至少为 500 次。根据系统设计和环境，终端器的使用情况可能会有所不同。
- 温度范围：TNC 连接器系列的典型温度范围为 -65 °C 至 +165 °C。特定端子的实际额定值取决于材料、安装和配置。
- 特殊功能：螺纹连接，抗震性强，机械完整性高，用途广泛。注：除非另有说明，本系列的标准 TNC 端接器不列为密封式，也未指定为 IP67。
应用
- 电信基站设备和室外无线基础设施，TNC 型端口在不使用时必须正确端接，以避免反射或信号泄漏。
- 工业无线和运输系统，在这些系统中，振动、冲击或移动下的机械可靠性至关重要，端接必须与之保持同步。
- 使用 TNC 接口的广播或仪器机架，未使用的单元或端口必须进行端接，以保持信号校准和完整性。
- 使用 TNC 连接器的测试和测量装置，需要对备用或测量端口进行匹配端接以获得准确结果。
- 使用标准 TNC 接口的电缆组装系统或射频模块，正确端接是系统可靠性和维护实践的一部分。
浏览 Amphenol RF 的全系列 TNC 端接器，为您的系统选择合适的解决方案。如果您需要定制额定功率、密封或环境变体、替代阻抗或非标准配置，请联系我们的工程团队，以获得量身定制的解决方案。
