压接工具
专为可靠的射频连接器电缆组件设计的精密压接解决方案
概述

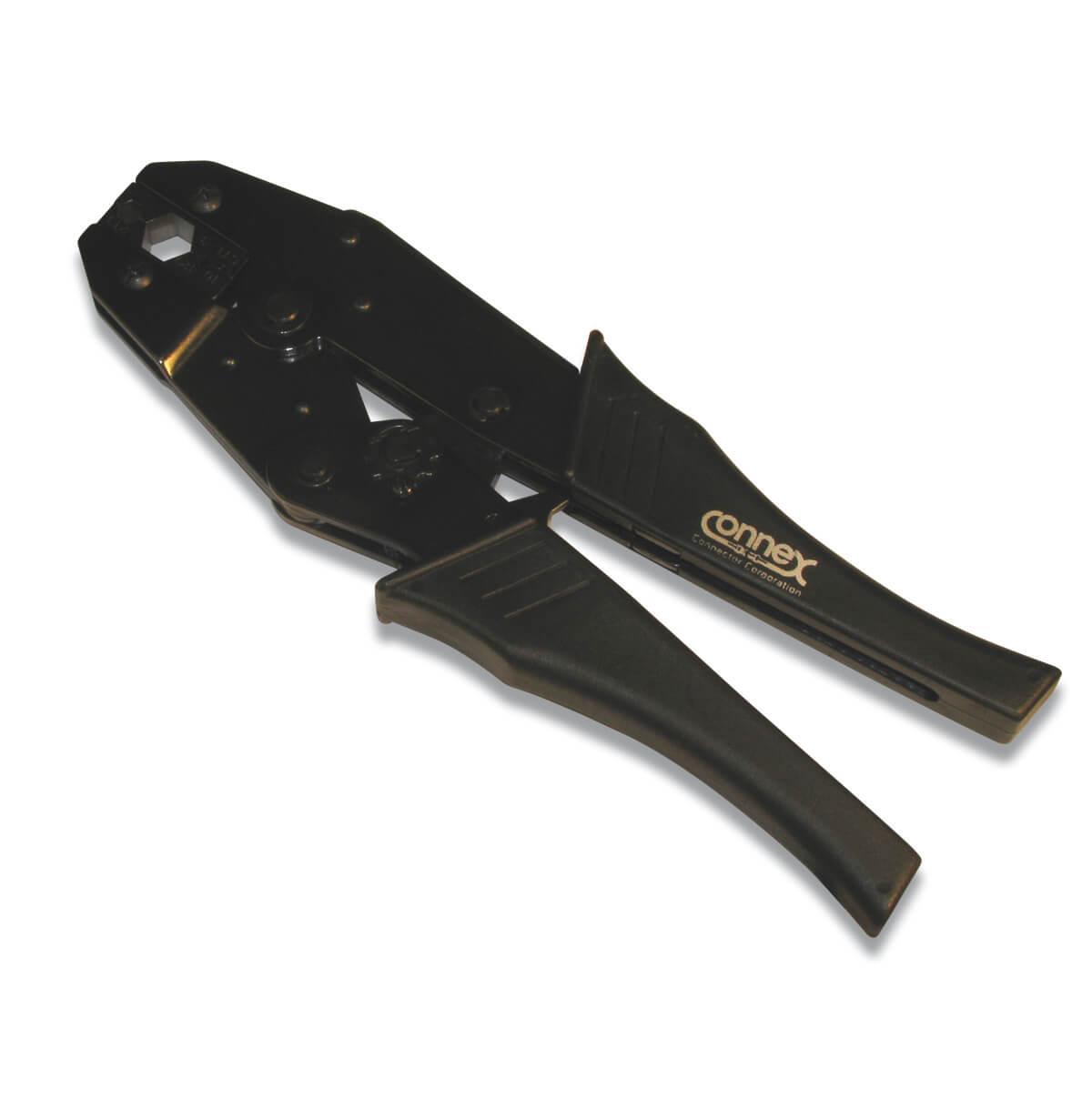

当您创建或维修射频电缆组件时，正确的压接工具不仅能固定连接器，还能确保一致的电气性能、机械完整性和长期可靠性。在 Amphenol RF，我们的压接工具是专为射频同轴连接器设计的，具有棘轮机构、可互换模具组和全周期控制功能，可确保每次端接都正确执行。
无论您使用的是 BNC、TNC、N 型、SMA、SMB 还是其他标准射频连接器格式，Amphenol RF 都能提供广泛的压接工具组合，以满足生产、维修和现场服务需求。
特点和优点
- 全周期棘轮机制确保压接运动在工具松开之前完成，降低了连接器压接不足的风险。
- 可互换的模具组支持多种六角腔尺寸，使一个工具手柄可用于多种连接器/电缆类型，从而简化了工具库存。
- 符合人体工程学的手柄和工具框架专为重复使用而设计，提高了操作员的舒适度，减少了生产或服务环境中的疲劳。
- 这些工具专门针对射频应用进行了校准，有助于保持同轴端接的电气和机械完整性，这对高性能射频系统至关重要。
- 广泛的兼容性--许多工具专为标准射频连接器系列（BNC、TNC、N 型、迷你超高频等）设计，确保易于集成并降低工具的复杂性。
主要技术细节
- 模腔尺寸：Amphenol RF 为某些工具框架列出了六角尺寸的模腔，如 0.100"、0.213"、0.429"。
- 工具系列 "CTL 系列 "包括 CTL-5、CTL-11、CTL-17 等变体，它们在模具组、耦合类型和连接器支持方面各不相同。
- 所有工具均符合安费诺的设计要求，可实现一致的压接端接，包括全周期棘轮控制。
- 虽然工具本身不是连接器，但其机械寿命与模具磨损有关--连接器系列可能规定了基本的连接器配接周期（如 500+ 周期）。
- 环境/操作耐久性：虽然工具不像连接器那样有评级，但材料和设计反映了生产级的使用情况。其中一个例子是全周期棘轮控制，以防止不完全压接。
应用
- 需要高产量和稳定质量的可互换射频电缆组件生产。
- 必须在现场更换或重新端接压接连接器的射频装置（电信、广播、无线）的现场服务和维护。
- 工程实验室和测试设备制造厂，同轴连接器组件必须满足精确的电气性能和可靠性标准。
- 使用多系列射频连接器（BNC、TNC、N 型、Mini-UHF）的维修店和系统集成商，他们需要一个支持多种模组的多功能工具包。
- 设计定制射频互连线束或子系统的原始设备制造商，他们需要与安费诺射频连接器系列相匹配的工具，以实现最佳集成。
浏览全系列安费诺射频压接工具。如果您需要定制压接工具配置、特殊模组，或为大批量或独特的电缆/连接器组合提供量身定制的工具支持，请联系我们的工程团队讨论解决方案。
