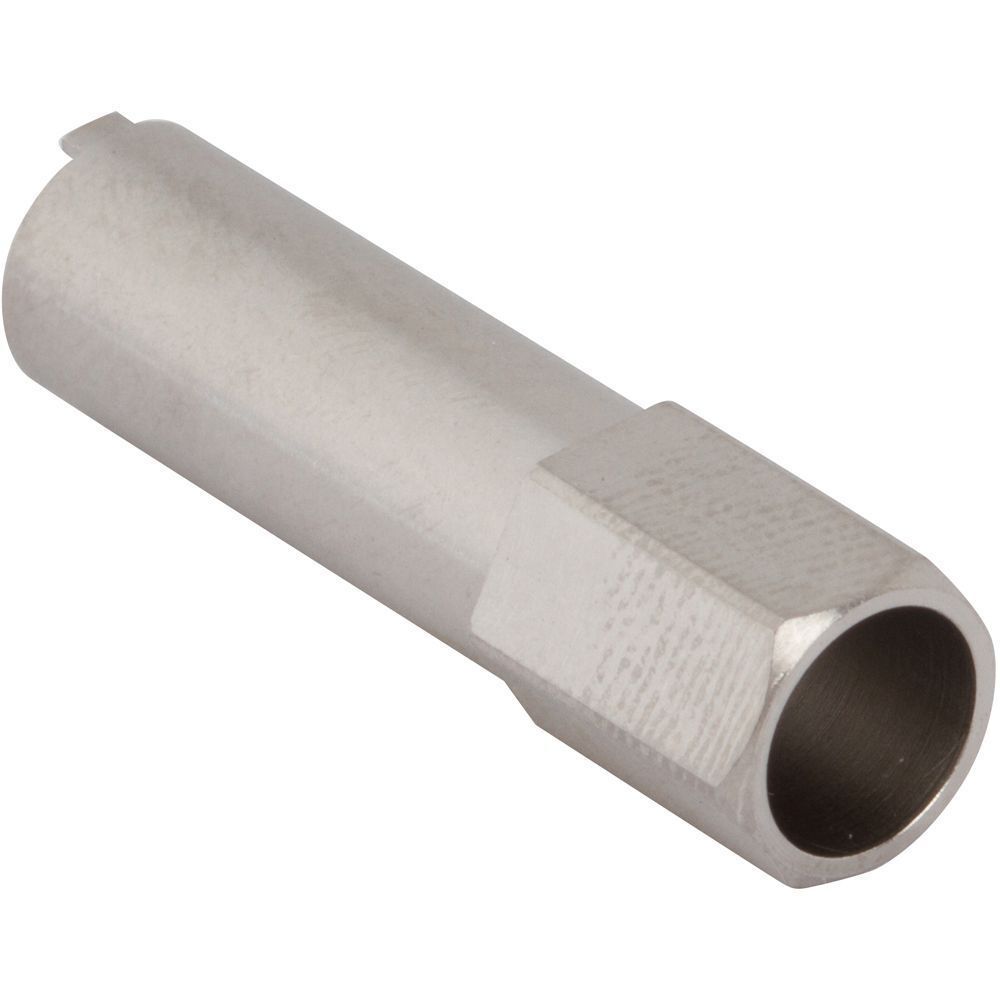

扳手螺母适配器
精密扳手螺母适配器可确保射频互连系统的扭矩和机械可靠性
概述
在组装高密度射频模块或机架式系统时，正确的机械接口与电气性能同样重要。Amphenol RF 的扳手螺母适配器类别提供专门设计的工具和适配器组件，用于与连接器扳手螺母连接，以应用正确的扭矩，安全地拧紧或拧松接头，并在安装或维修过程中保护射频接口免受损坏。
通过使用专用扳手螺母适配器而不是简易扳手或钳子，工程师和技术人员可以降低连接器变形、污染或扭矩错误的风险，这些风险可能会降低射频性能、缩短连接寿命或导致信号反射问题。
特点和优点
- 专门设计的适配器表面符合制造商指定的扳手螺母几何形状，确保正确啮合和精确扭矩应用。
- 支持高效的安装或维护工作流程--机械啮合简化了在拥挤的面板或敏感设备中拧紧/拧松射频连接器的过程。
- 有助于保持连接器的完整性--最大限度地减少对外壳或螺纹的机械损伤，以免影响配接性能或造成过早磨损。
- 与使用扳手螺母外壳的安费诺射频连接器系列（如 HD-BNC）兼容。
- 通过为射频连接器耦合提供正确的机械接口而不是临时工具，提高了生产、服务或现场环境的质量保证。
主要技术细节
- 这些适配器被归类为机械附件，而非有源射频元件；其性能取决于是否匹配正确的连接器接口和应用适当的扭矩。
- 虽然工具本身没有阻抗或频率规格，但其对应的连接器系列（如 HD-BNC）具有机械耦合应保持的电气规格（如 50 Ω 或 75 Ω 配置，HD-BNC 的覆盖范围为 ~6 GHz）。
- 使用正确的扳手螺母适配器有助于确保连接器的插配周期和扭矩规格保持在制造商规定的范围内，从而延长额定使用寿命。
- 虽然适配器是机械式的，但它必须由与环境兼容的耐用材料制成--许多 Amphenol 工具都是不锈钢或钝化金属。
应用
- 机架安装的射频测试仪器、广播面板或电信系统，这些地方射频连接器排列密集，耦合器的正确扭矩至关重要。
- 无线基站、中继站或户外机柜中射频互连的现场维修--使用适当的扳手螺母适配器可降低扭转安装过程中连接器损坏的风险。
- 在生产中大批量组装射频电缆线束，需要一致的机械扭矩以确保可重复的性能和较长的产品寿命。
- 使用 HD-BNC、N 型或其他带扳手螺母外壳的连接器系列开发射频模块或子卡，需要适当的机械工具以保证质量的实验室。
- 任何拧紧不当可能导致阻抗失配、驻波比增加或机械连接不可靠的安装，尤其是在高密度同轴架构中。
浏览 Amphenol RF 的全系列扳手螺母适配器。如果您需要定制适配器尺寸、特殊扭矩规格、严格的环境处理或与自动化工具系统集成，请联系我们的工程团队，讨论量身定制的解决方案。
