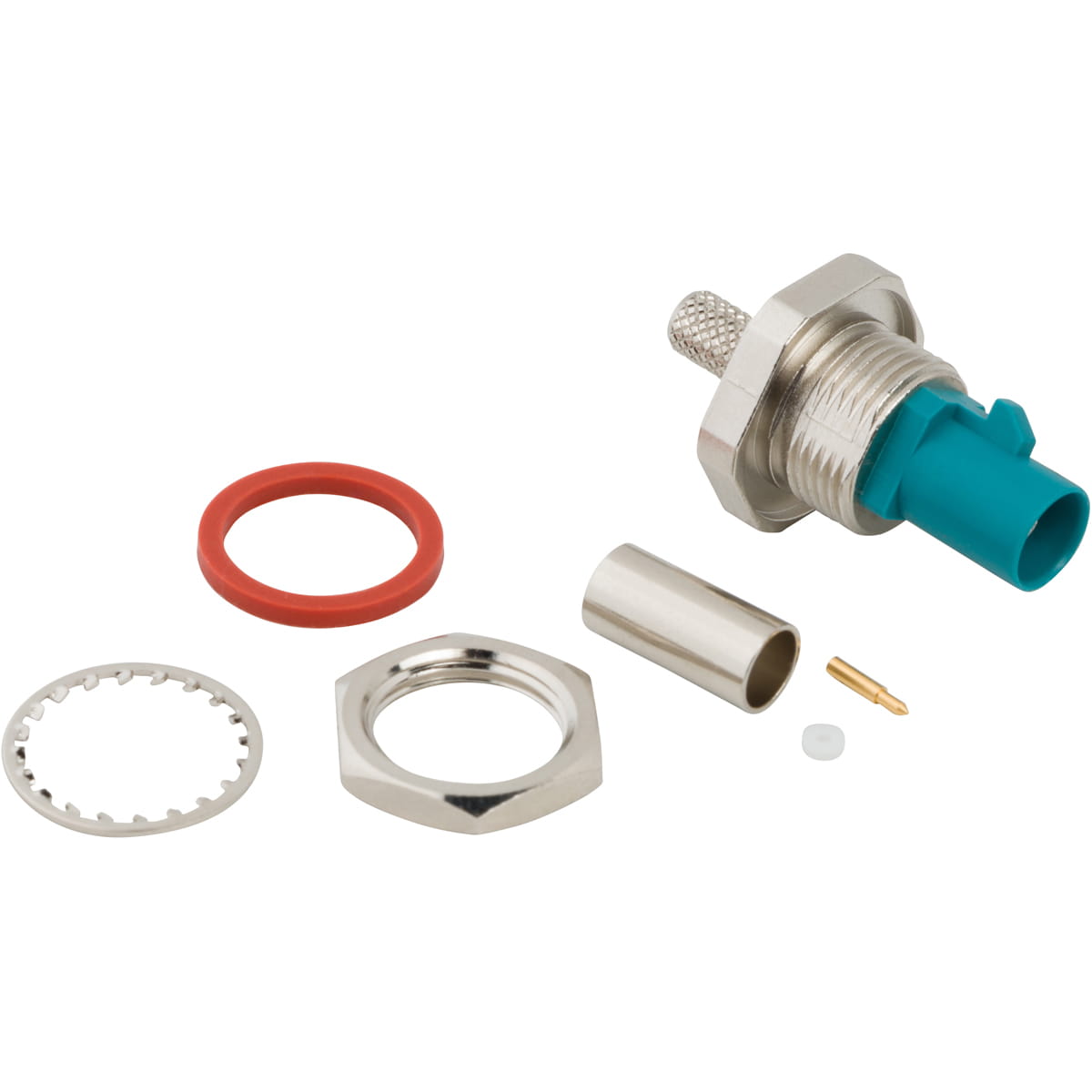

安费诺射频公司欣然推出全新IP67 FAKRA直插式后装隔板插头，将其纳入我们广泛的汽车与工业产品组合。这些插头专为支持行业标准的RG-58和LMR-195电缆类型而设计。该系列FAKRA插头采用颜色编码和机械键控设计，便于安装，并提供多种键控代码选项，包括通用Z代码。 安费诺射频FAKRA互连解决方案适用于卫星通信、ADAS及机器间通信等领域。
这些后装式隔板插头可穿过面板或外壳壁安装，提供稳定可靠的连接点。无论插拔状态，插头均保持密封，确保污染物无法侵入，系统在各种外部环境下仍能安全运行。 内部采用垫圈密封接口，法兰与面板安装座之间增设O型圈密封以增强防护。FAKRA插头主体由镀镍压铸锌合金构成，外覆坚固耐用的高性能塑料外壳及法兰，配备镀金黄铜中心触点与镀镍铜套管。
这些50欧姆FAKRA插头可确保高达6 GHz的可靠高频数据传输，采用标准直压接模具组将连接器与电缆连接。该产品加入日益扩大的IP67防水FAKRA后装隔舱插头系列，专为适配各类汽车电缆而设计。
相关资源
FAKRA Plug to MHF I LK Cable Assemblies
Amphenol RF’s Locking FAKRA to MHF I LK cable assemblies deliver robust, high-frequency performance with a secure locking mechanism, engineered specifically for environments exposed to continuous vibration and motion. Supporting frequencies up to 6 GHz, these assemblies ensure stable and reliable electrical connections, making them ideal for cutting-edge applications in drones, smart cabins, ADAS, driver monitoring, and RFID systems.
FAKRA to SMA Adapter Datasheet
The FAKRA to SMA Adapter datasheet describes Amphenol RF’s FAKRA to SMA adapters, which connect FAKRA-based automotive systems to SMA RF devices using a push-on FAKRA and threaded SMA interface for secure, application-specific connections up to 4 GHz. The adapters feature rugged nickel-plated brass bodies, gold-plated contacts, PTFE insulation, and glass-filled nylon housing, providing excellent return loss, high mating durability (500+ cycles), and reliable performance from −65°C to +165°C in automotive, industrial automation, telecom, connected vehicle, and RF test applications.
Camera and Vision Systems Solutions
Amphenol RF offers advanced RF interconnect solutions tailored for camera and vision systems used in automotive and industrial applications. These solutions include ruggedized, waterproof, and vibration-resistant connectors, ideal for high-frequency and high-speed data transmission.
AUTOMATE Type A Mini-FAKRA Features & Benefits
The Amphenol RF AUTOMATE® Mini-FAKRA Type A connectors offer an advanced automotive connector system. These features make the AUTOMATE Mini-FAKRA Type A connectors ideal for high-bandwidth automotive applications such as ADAS, GPS navigation, and 360-degree surround view cameras.
FAKRA to AMC Cable Assemblies
The Amphenol RF FAKRA to AMC Cable Assemblies datasheet highlights fixed-length assemblies designed for automotive and IoT applications. These IP67-rated assemblies combine FAKRA connectors with micro-miniature AMC connectors on 1.37 mm ultra-flexible coax cable, providing compact and sealed solutions ideal for DSRC, V2X, V2V technologies, 360-degree cameras, ADAS, smart boxes, and remote control access.
Sealed FAKRA Connector Series
The "Sealed FAKRA Cut Sheet" highlights FAKRA/USCAR mechanical coding for connectors. These connectors are designed for secure and reliable automotive applications, featuring mechanical and color coding to prevent mismating. The sealed FAKRA connectors are IP67 rated, providing protection against dust and temporary submersion in water, making them ideal for use in harsh environments.
FAKRA Cable Assemblies
The Amphenol RF FAKRA Cable Assemblies cutsheet details fixed length assemblies using RG-58 and RG-174 cables, featuring FAKRA connectors suitable for high-frequency transmission up to 3 GHz. These universally keyed connectors are available in various configurations and lengths from 12 inches to 5 meters, ideal for automotive applications like ADAS, GPS, and infotainment systems.
FAKRA to AMC4 Cable Assemblies
The Amphenol RF FAKRA to AMC4 Cable Assemblies Data Sheet highlights a versatile, high-performance interconnect solution designed for automotive, IoT, and compact RF applications. These cable assemblies combine the secure, high-reliability FAKRA interface with the ultra-miniature AMC4 connector, ensuring seamless integration in space-constrained designs without compromising signal integrity. Engineered for low-loss transmission and robust mechanical performance, they are ideal for antenna connections, telematics, and wireless communication systems.
FAKRA Technical Resource
The Amphenol RF FAKRA Technical Guide outlines the features and applications of FAKRA connectors, which are designed for the automotive industry to support systems like GPS, cellular, Bluetooth, and satellite radio. The guide highlights their compliance with FAKRA and USCAR standards, their ability to handle frequencies up to 6 GHz, and the introduction of the AUTOMATE® (mini-FAKRA) series for higher data transmission rates up to 20 Gbps, suitable for autonomous and connected vehicles.
FAKRA to SMA Cable Assemblies
The Amphenol RF FAKRA to SMA Cable Assemblies Datasheet details pre-configured 50 ohm cable assemblies available in various lengths, designed for automotive and industrial applications such as ADAS, GPS, RFID, and wireless infrastructure. These assemblies feature flexible cables and high-quality connectors, providing reliable performance up to 3 GHz without the need for additional tooling.
AUTOMATE Mini-FAKRA to FAKRA Breakout Cables
Amphenol RF's AUTOMATE Mini-FAKRA to IP67 FAKRA breakout cables feature a quad-port Mini-FAKRA jack to four IP67 FAKRA jacks on low-loss RG-174 cable. These assemblies, designed for high-bandwidth automotive and industrial applications such as 360-degree cameras and ADAS, offer secure snap-on interfaces with low engagement forces, providing high performance up to 3 GHz. They feature rugged, impact-resistant housing with universal Z color coding and mechanical keying for intermateability, ensuring easy and reliable installation.
Amphenol RF FAKRA Generation 4.0 Product Series Solutions Guide
The Amphenol RF Generation 4 FAKRA Solutions Guide details the latest generation of FAKRA connectors, featuring an upgraded SMB connector design with fully automated cable termination and compliance with USCAR and FAKRA 2 standards. These connectors support high-volume automotive applications such as surround cameras, infotainment, GPS, and emerging technologies like autonomous vehicle systems, offering benefits like ruggedized housings, multiple key codes, and reliable performance up to 6 GHz.
FAKRA Generation 4.0 Solutions
The Amphenol RF Generation 4 FAKRA Solutions Guide details the latest generation of FAKRA connectors, featuring an upgraded SMB connector design with fully automated cable termination and compliance with USCAR and FAKRA 2 standards. These connectors support high-volume automotive applications such as surround cameras, infotainment, GPS, and emerging technologies like autonomous vehicle systems, offering benefits like ruggedized housings, multiple key codes, and reliable performance up to 6 GHz.
FAKRA Generation 4.0 Solutions
The Amphenol RF Generation 4 FAKRA Solutions Guide details the latest generation of FAKRA connectors, featuring an upgraded SMB connector design with fully automated cable termination and compliance with USCAR and FAKRA 2 standards. These connectors support high-volume automotive applications such as surround cameras, infotainment, GPS, and emerging technologies like autonomous vehicle systems, offering benefits like ruggedized housings, multiple key codes, and reliable performance up to 6 GHz.
FAKRA Cable Assemblies on TFC 302LL
The Amphenol RF FAKRA Cable Assemblies Overview highlights high-performance TFC-302LL cable assemblies designed for automotive and industrial applications. It details their low-loss characteristics, secure FAKRA connectors, and suitability for high-frequency signal transmission in demanding environments.
AUTOMATE Mini-FAKRA to FAKRA Cable Assemblies
Amphenol RF's AUTOMATE Type A Mini-FAKRA to FAKRA breakout cables feature compact, modular housings with multi-port configurations, utilizing low-loss, flexible cables. These assemblies are ideal for high-bandwidth automotive and industrial applications, including 360-degree cameras, advanced driver assistance systems (ADAS), and GPS, providing reliable performance up to 6 GHz.
FAKRA IP67 Rear Mount Bulkhead Crimp Plugs
Amphenol RF's FAKRA rear mount bulkhead crimp plugs are engineered for automotive and industrial applications, supporting TFC 302LL and RG-174 cables. These connectors provide reliable electrical performance up to 6 GHz, feature IP67-rated waterproofing, and are available in various color-coded key codes for easy installation.
